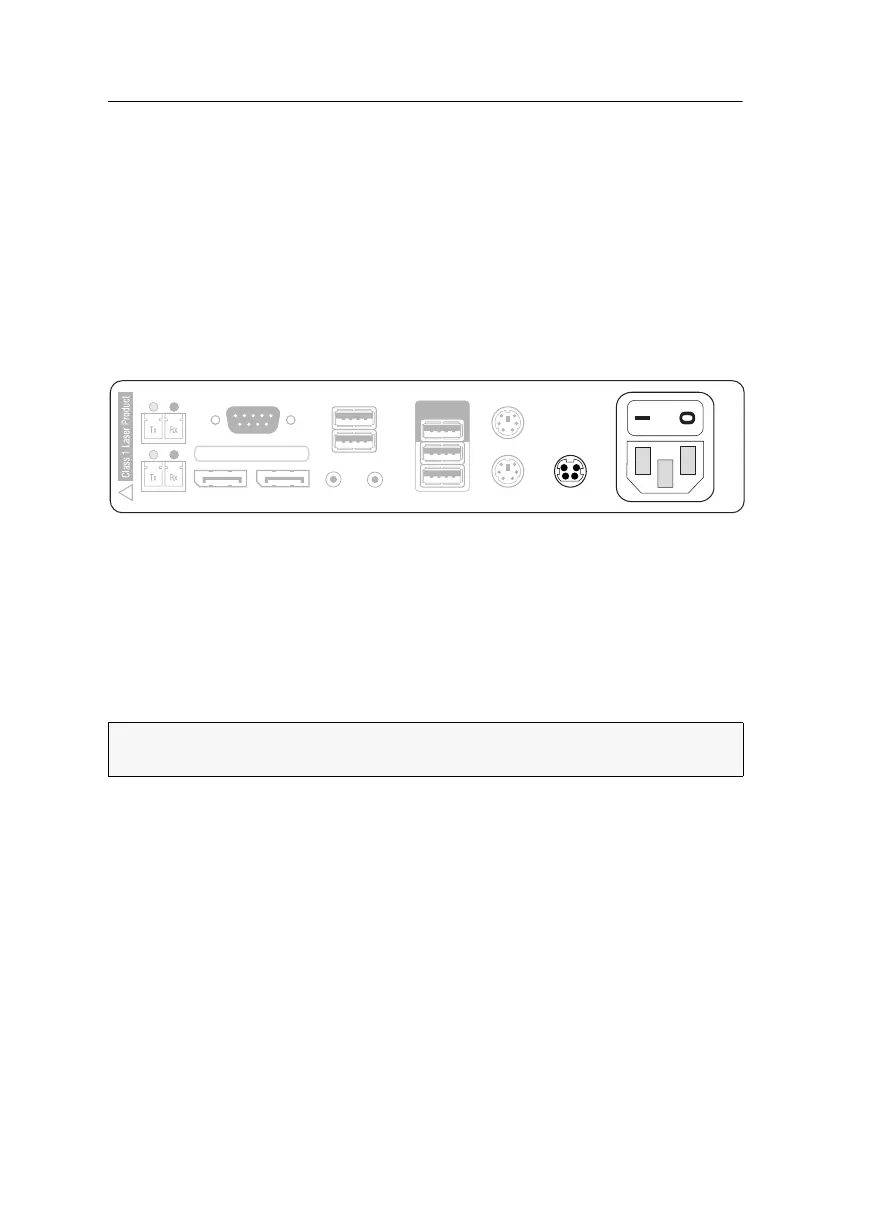

User module »DP-HR-U-CON-2-Fiber-DH«
169 · Target and user modules (DP-HR-U)
Transmission 1|Rx: Insert the LC plug of a compatible optical fibre cable. Connect the
other end of the cable to the
Tx interface of the same Dynamic Port provided at the
matrix switch.
Transmission 2|Tx: Insert the LC plug of a compatible optical fibre cable. Connect the
other end of the cable to the
Rx interface of another Dynamic Port provided at the
matrix switch.
Transmission 2|Rx: Insert the LC plug of a compatible optical fibre cable. Connect the
other end of the cable to the
Tx interface of the same Dynamic Port provided at the
matrix switch.
Power supply
Main Power: Connect the supplied power cable.
Insert the cable’s Schuko plug in a power socket.
Red. Power: Connect the connection cable of a compatible power pack to provide the
user module with a second, redundant power supply.
Startup
Start the user module by pressing the Main Power button of the power pack.
ADVICE:
The active hotkey configuration is displayed during the System Startup of
the matrix switch.
Trans. 1
Trans. 2
Mouse
Keyb.
Keyb./Mouse
Generic
Speaker
Micro In
USB Devices
DisplayPort
Out 1 Out 2
LED Out
Main Power
Red. Power
