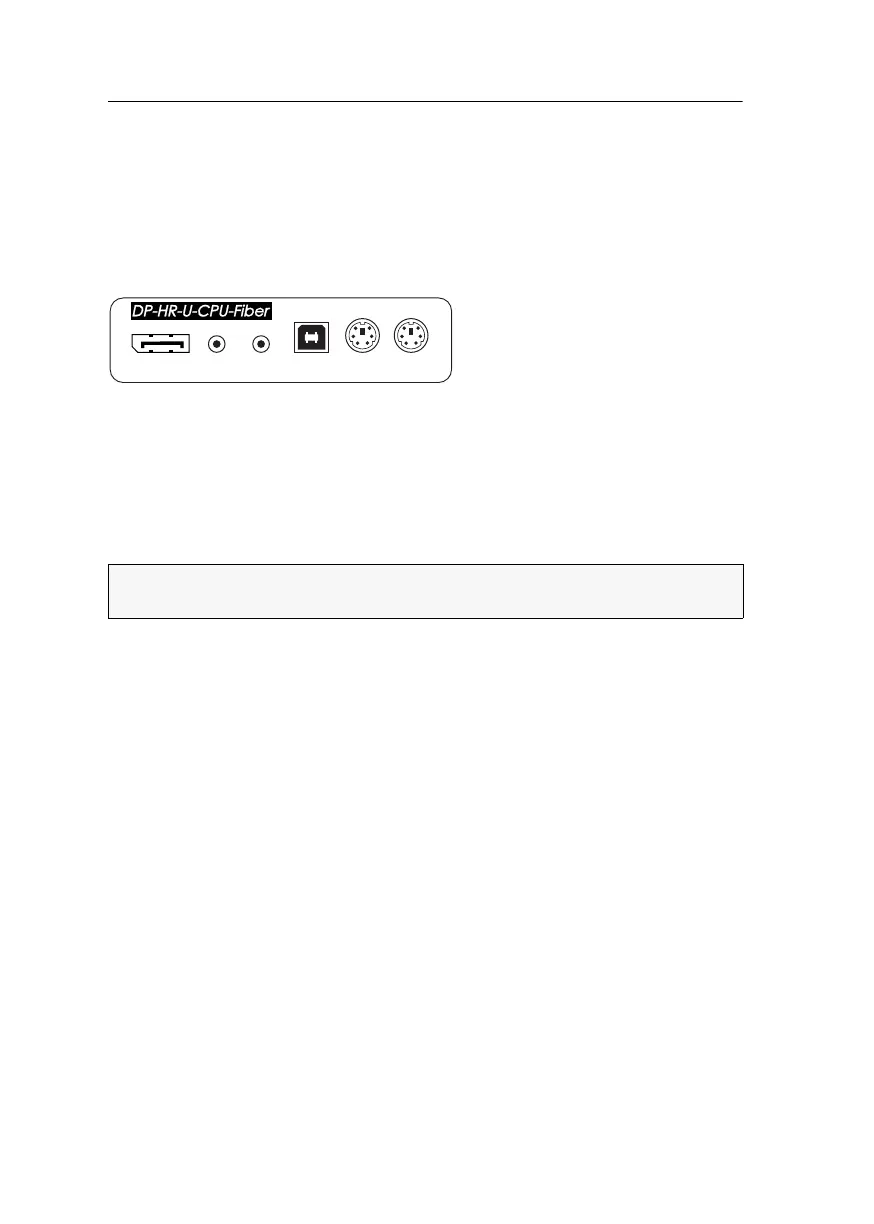

Target module »DP-HR-U-CPU-Fiber«
29 · Target and user modules (DP-HR-U)
Required accessories
1 × Compatible optical fibre cable to connect the target module to
the matrix switch
Installation
Connecting the target computer
DP CPU: Use the supplied video cables to connect the computer’s Display Port video
output to this interface.
Line In: Use one of the supplied audio cables to connect the computer’s Line Out
interface to this interface.
Line Out: Use one of the supplied audio cables to connect the computer’s Line In inter-
face to this interface.
USB K/M: Use the USB device cable to connect one of the computer’s USB interfaces
to this interface.
Keyb.: Use the purple plug of an optional Twin-PS/2 cable to connect the computer’s
PS/2 keyboard interface to this interface.
Mouse: Use the green plug of an optional Twin-PS/2 cable to connect the computer’s
PS/2 mouse interface to this interface.
NOTE:
Keyboard and mouse signals can be transmitted to the computer using either
the PS/2 interfaces or the USB interface.
MouseKeyb.
USB K/M
Line In
Line Out
DP CPU
