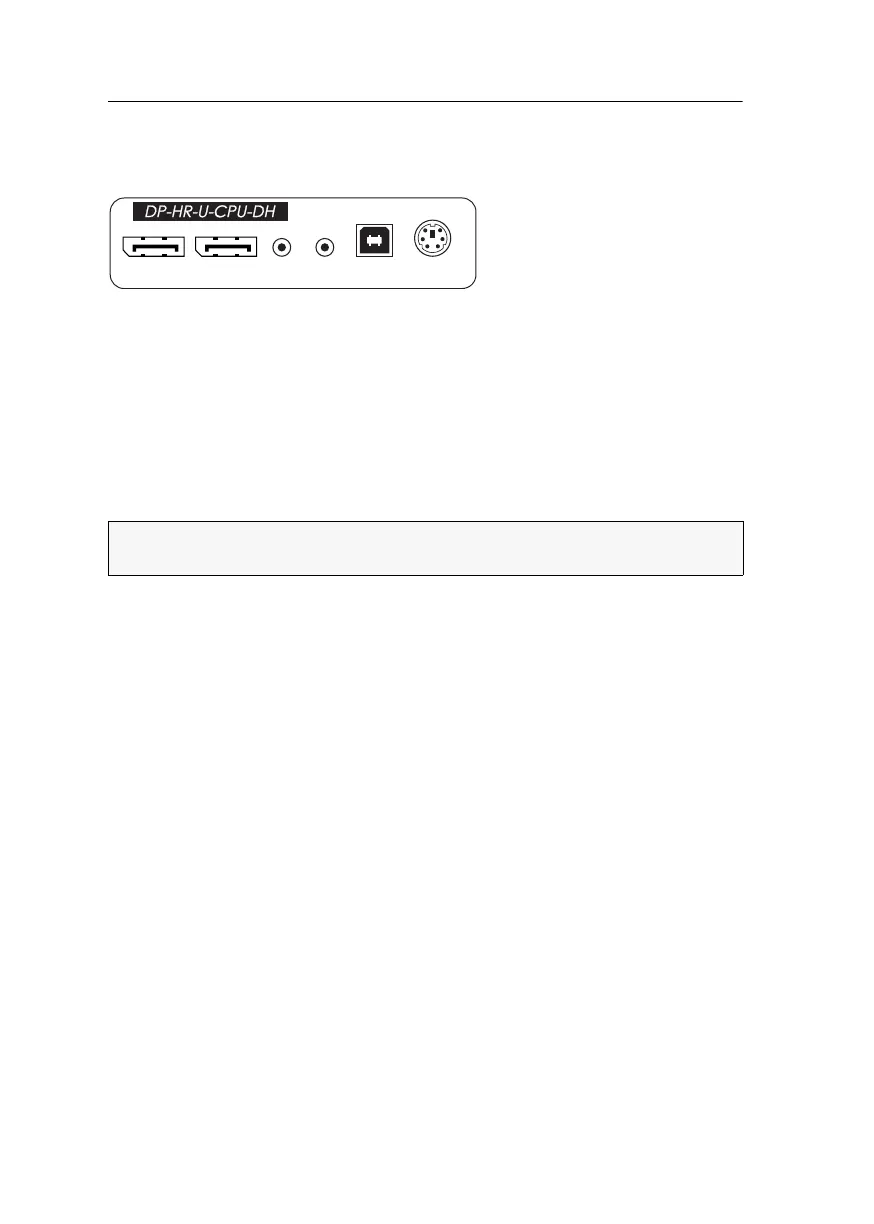

Target module »DP-HR-U-CPU-DH«
55 · Target and user modules (DP-HR-U)
Installation
Connecting the target computer
DP CPU 1: Use one of the supplied video cables to connect the computer’s first Display
Port video output to this interface.
DP CPU 2: Use one of the supplied video cables to connect the computer’s second Dis-
play Port video output to this interface.
Line In: Use one of the supplied audio cables to connect the computer’s Line Out
interface to this interface.
Line Out: Use one of the supplied audio cables to connect the computer’s Line In inter-
face to this interface.
USB K/M: Use the USB device cable to connect one of the computer’s USB interfaces
to this interface.
PS/2 Keyb.: Use an optional PS/2 cable to connect the computer’s PS/2 keyboard
interface to this interface.
NOTE:
Keyboard and mouse signals can be transmitted to the computer using either
the PS/2 interfaces or the USB interface.
PS/2 Keyb.
USB K/M
Line In
Line Out
DP CPU 1 DP CPU 2
