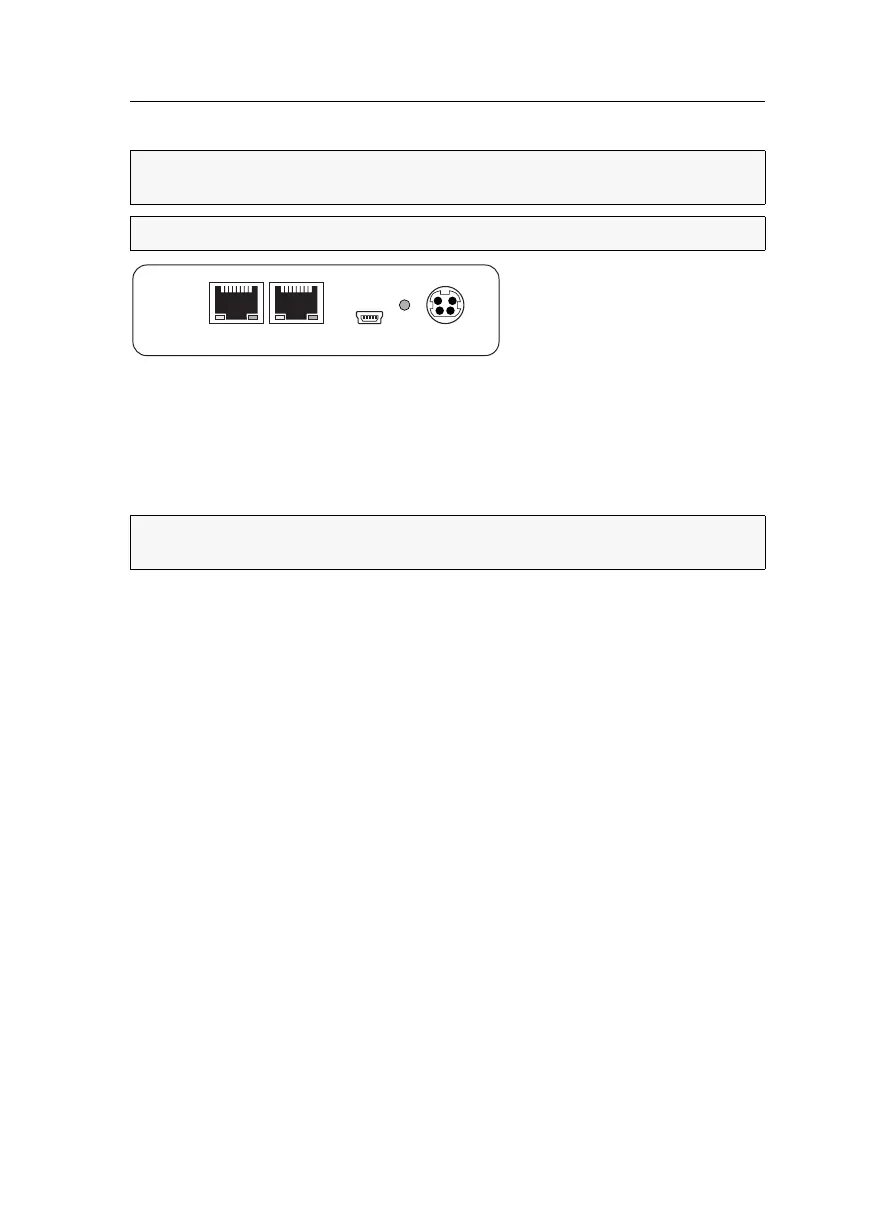

Target module »DP-HR-U-CPU-DH-UC«
Target and user modules (DP-HR-U) · 62
Connections to the matrix switches
Connecting the first matrix switch
Trans. 1: Connect this interface to a Dynamic Port (RJ45) of the first matrix switch.
Connecting the second matrix switch
Trans. 2: Connect this interface to a Dynamic Port (RJ45) of the second matrix switch.
Power supply
Power In: Insert the power pack’s connection cable to this interface.
IMPORTANT:
Connect only one of the target module’s Trans. interfaces for each
matrix switch!
NOTE:
Only use category 5e (or better) twisted pair cables to connect the devices.
ADVICE:
You can also connect the target module directly to up to two compatible
user modules.
Power In
Service
Power
Trans. 1Trans. 2
