User module »DP-HR-U-CON-2«
89 · Target and user modules (DP-HR-U)

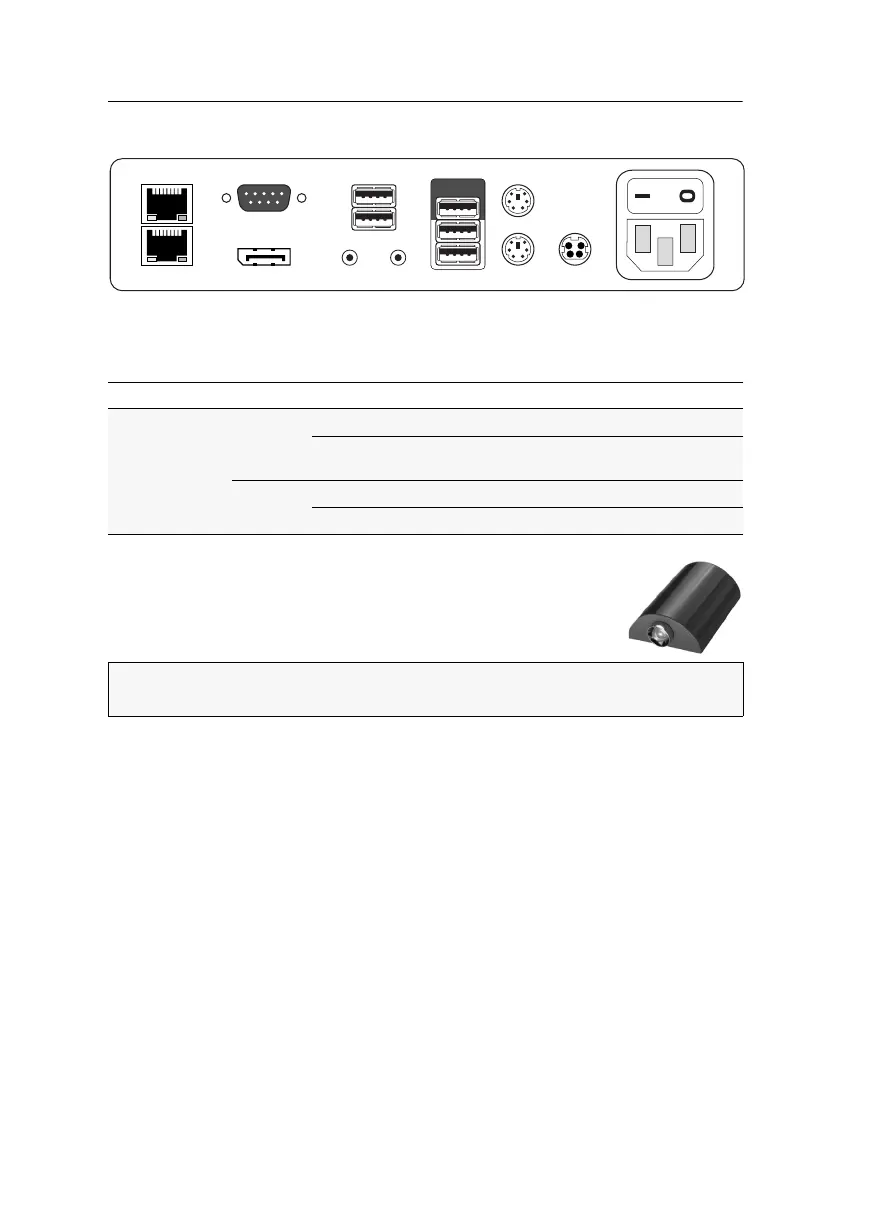

Back panel
The Transmission interface at the back panel of the user module provides additional
status LEDs. The LEDs have the following functions:
TradeSwitch-LED
The optional TS-LED (order number A6100041) lights if the key-
board and mouse signals of a master console are accessing the user
module.
Interface LED Status Meaning
Transmission Yellow Off No data connection to the counterpart station.
Flashing Data connection to the counterpart station
established.
Green Off No user is logged in at the user module.
On A user is logged in at the user module.
NOTE:
Keyboard and mouse signals can only access another user module or a tar-
get computer if you purchased the TradeSwitch feature for the matrix switch.
Micro In
Keyb./MouseSpeaker
Generic
Main Power
Red. Power
DisplayPort Out
LED Out
Mouse
Keyb.
Transmission 1
Transmission 2
USB Devices
