Console module »DP-HR-U-CON-DH«
143 · Computer and console modules (DP-HR-U)

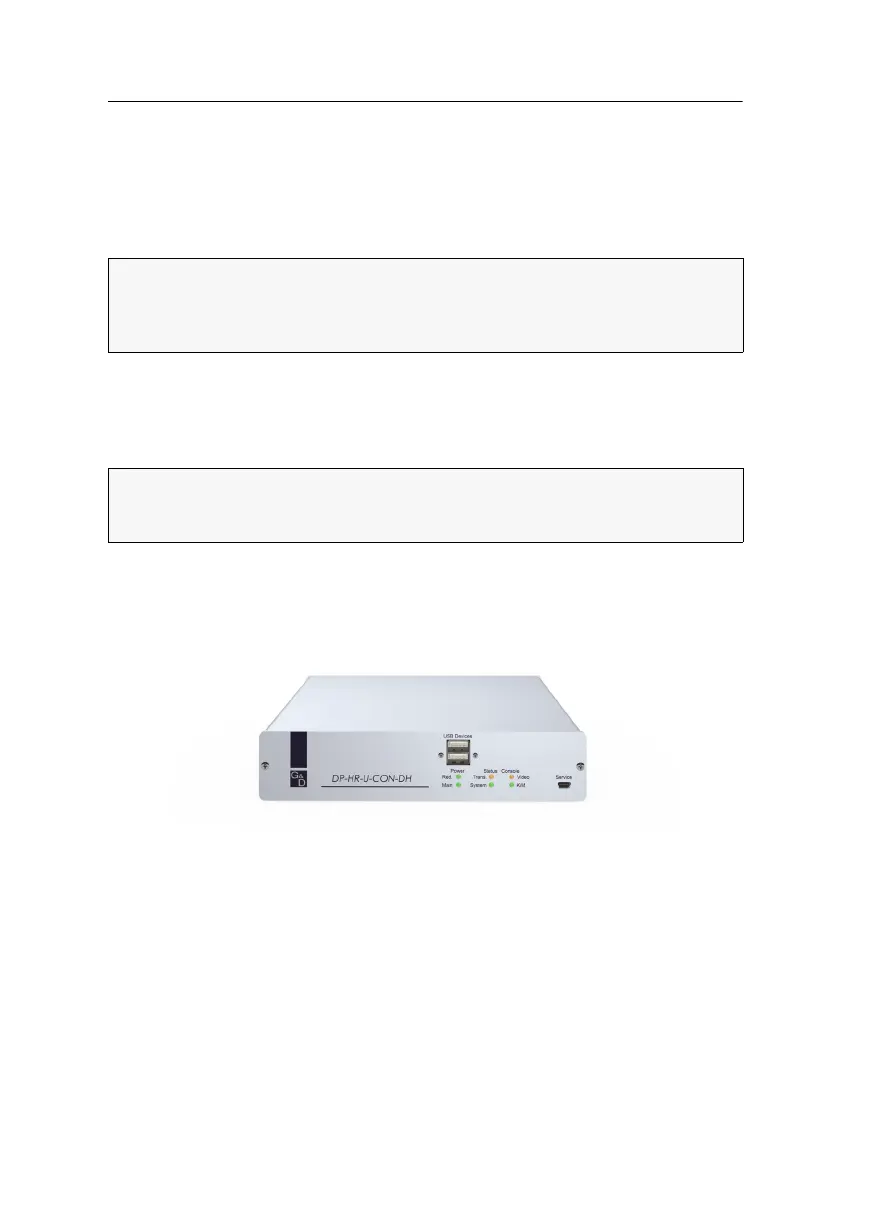

Console module »DP-HR-U-CON-DH«
With DP-HR-U-CON-DH console modules, you can connect up to two DisplayPort moni-
tors (dual-monitor), keyboard, mouse, microphone and speakers to a digital matrix
switch of the ControlCenter-Compact or ControlCenter-Digital series by using one cable
only.
At the installed console, matrix switch users can access a computer module to operate
the connected computer.
The data stream of the connected USB devices is transmitted to the active computer
module of the
DVI-U-CPU, DP-U-CPU or DP-HR-U-CPU series with up to 16 Mbit/s.
When using the console to access a computer module connected to a dual-head
computer, the monitors display the separate images of the graphics outputs. When
accessing a computer module with one graphics input only, only the first monitor
displays an image.
ADVICE: If you use the first video channel only, you are able to display resolutions
up to 4096
× 2160 @ 30 Hz (4K). Using both video channels allows resolutions up
to 1920
× 1200 @ 60 Hz. Detailed information about the supported resolutions is
given in the chapter
Technical data on page 149.
NOTE: Accessing a computer module occupies the entire back channel (including
Micro In and USB 2.0 signal). Hence, these signals are not provided to the console
modules that access the channel at a later point (multi user operation).
