G&D DP-HR-U-CPU - Chapter B: Console Modules; Console Module DP-HR-U-CON

79 · Computer and console modules (DP-HR-U)
B
Console modules

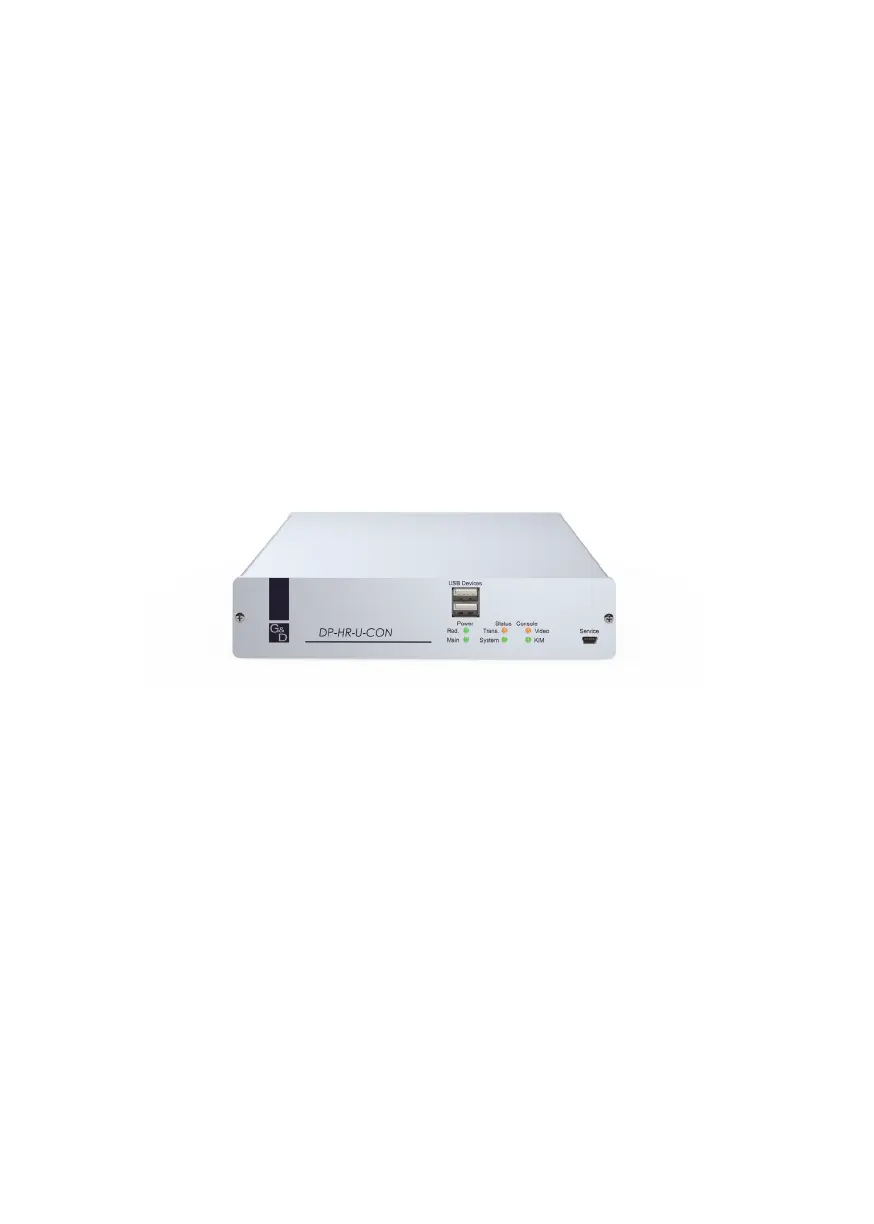

Console module »DP-HR-U-CON«
With DP-HR-U-CON console modules, you can connect a console (DisplayPort monitor,
keyboard, mouse and audio devices) to a digital matrix switch of the ControlCenter-
Compact or ControlCenter-Digital series.
At the installed console, matrix switch users can access a computer module to operate
the connected computer.
The data stream of the connected USB devices is transmitted to the active computer
module with up to 16 Mbit/s (
DVI-U-CPU, DP-U-CPU, DP-HR-U-CPU and VGA-U-CPU series
only).
Package contents
 1 × DP-HR-U-CON console module
 1 × Power cable
 1 × »Manual information« flyer
 1 × »Safety instructions« flyer
Required accessories
 1 × Category 5e (or better) twisted pair cable to connect the console module to
the matrix switch
