Console module »DP-HR-U-CON-2-Fiber-DH«
171 · Computer and console modules (DP-HR-U)
Package contents
1 × Console module DP-HR-U-CON-2-Fiber-DH
1 × Power cable
1 × »Manual information« flyer
1 × »Safety instructions« flyer
Required accessories
2 × Compatible optical fibre cable to connect the console module to up to two
KVM matrix switches

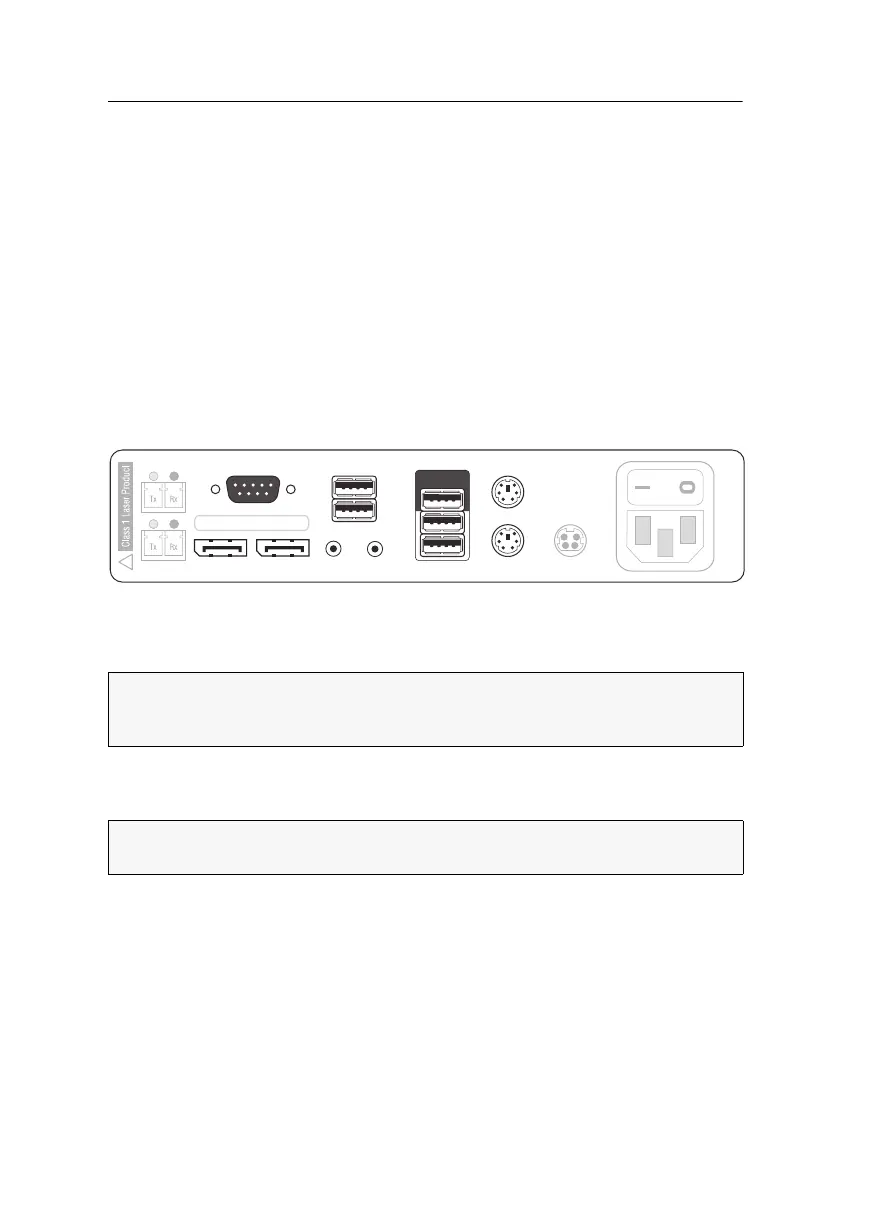

Installation
Connecting the console devices
DisplayPort Out 1: Connect the first console monitor.
DisplayPort Out 2: Connect the second console monitor.
Micro In: Connect the console microphone (optional).
Speaker: Connect the console speakers (optional).
Keyb.: Connect the console PS/2 keyboard.
Mouse: Connect the console PS/2 mouse.
Keyb./Mouse: Connect the console USB keyboard and/or USB mouse.
Generic: By default (Keyb./Mouse mode), you can use this interface to connect another
USB input device or supported displays or tablets.
NOTE:
Check the monitor's manuals if the OSDs provide a setting for the mode of
the DisplayPort input. If so, select the mode in which the image data is processed
according to the standard DisplayPort 1.1.
NOTE:
Console keyboard and console mouse can be connected to the
console
module’s USB or PS/2 interfaces.
Main Power
Micro In
DisplayPort
Out 1 Out 2
Speaker
Keyb./Mouse
Generic
Mouse
Keyb.
LED Out USB Devices
Trans. 1
Trans. 2
Red. Power
