Computer module »DP-HR-U-CPU-DH«
Computer and console modules (DP-HR-U) · 56
Connection to the matrix switch
Trans.: Connect this interface to a Dynamic Port (RJ45) of the matrix switch.
Power supply
Power In: Insert the power pack’s connection cable to this interface.
Start-up
Connect the power cable to the power pack and a power socket. The computer module
starts as soon as it is supplied with power.
NOTE:
Only use category 5e (or better) twisted pair cable to connect the devices.
NOTE:
You can also connect the computer module directly to a compatible console
module.

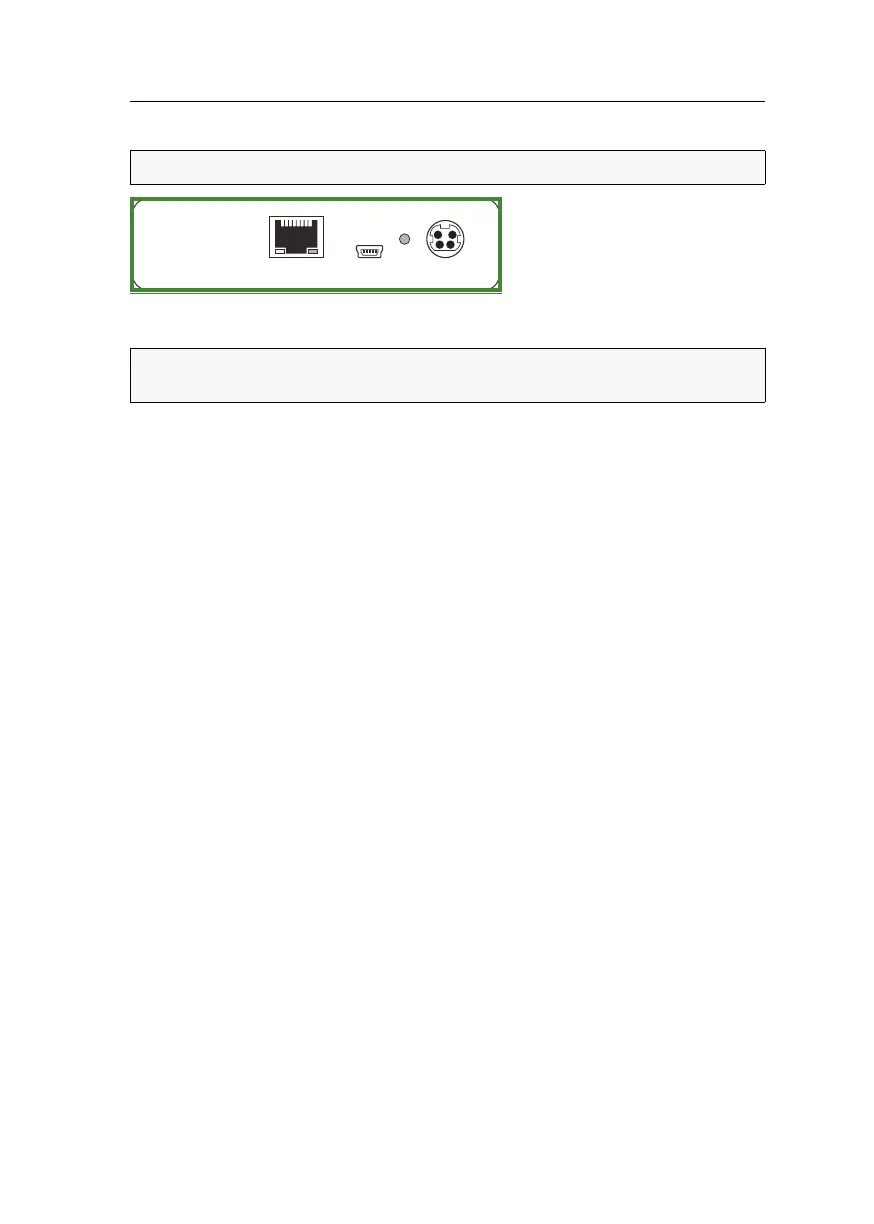

Power In
