RTxxx LEDlighting controllers - User Manual
lighting connections must be shielded so they cannot be being
touched both within the light and along the whole length of the cable.

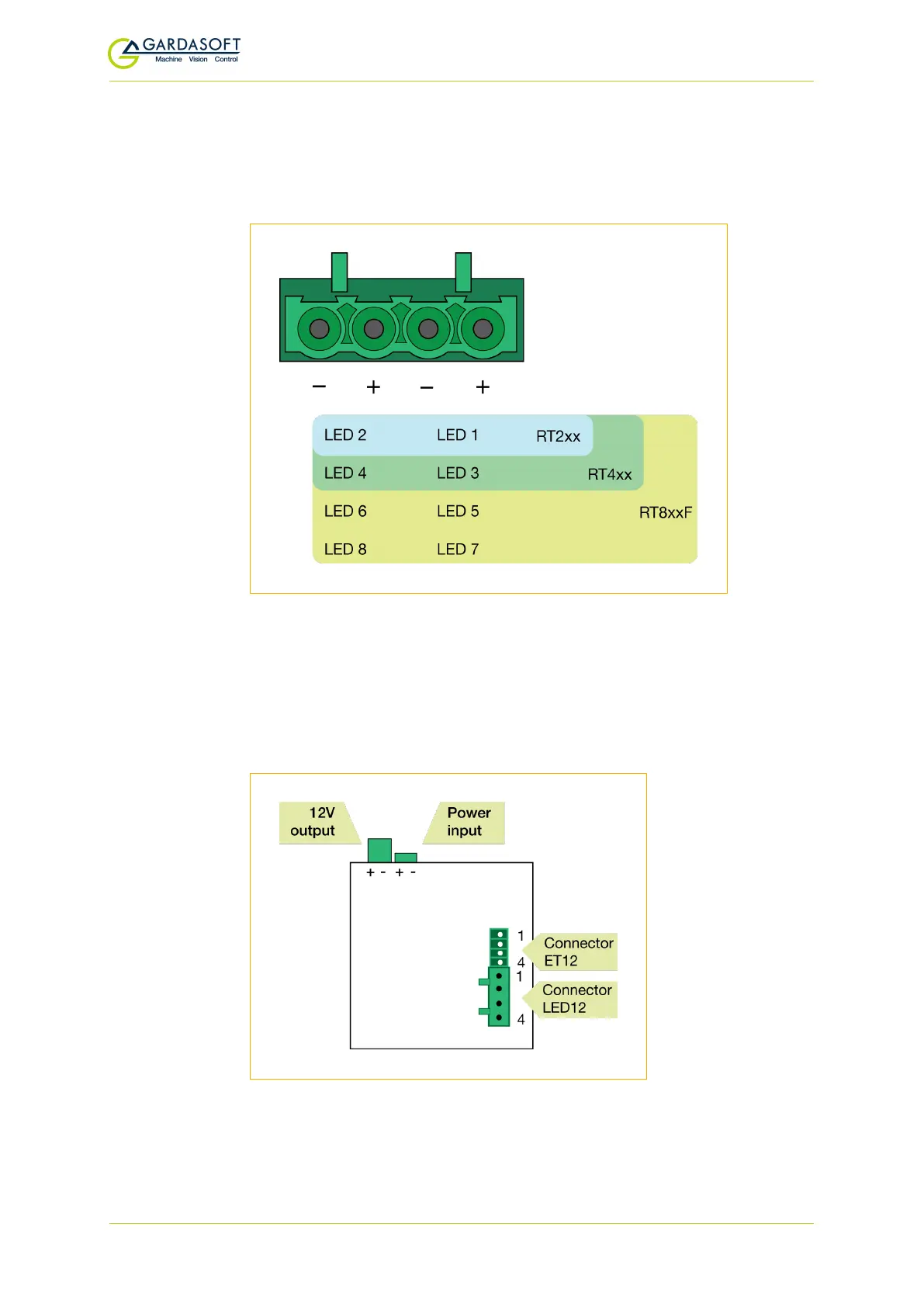

The lighting connections to an RTxxx are made through 4-way
connectors as shown below:
Ensure you set the current or voltage rating of your light before you
connect it, see Section 8, Lighting setup.
The connectors fitted to anRT2xx, RT4xx, and an RT8xx series
controller are shown in the illustrations below. You should refer to
Section 6.3, Trigger inputs for the pin allocations of the trigger
connectors.
RT2xx
