RTxxx LEDlighting controllers - User Manual
Use the p and q buttons to enter the lock
code and press the
SEL
button.
CH1 is displayed and the RT200 keypad is
unlocked.
If the code entered is incorrect, LOC is
displayed.

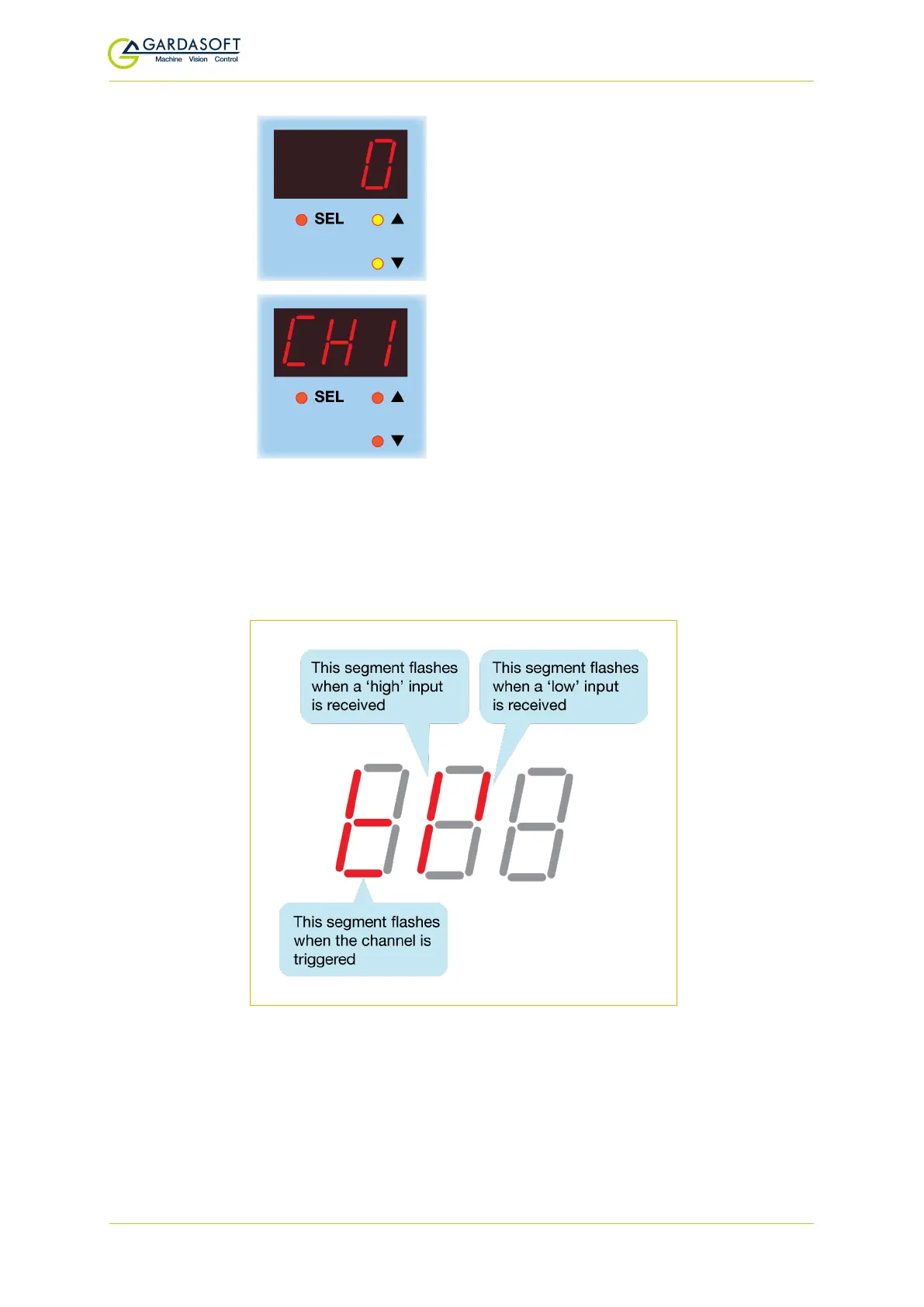

9.10 Viewing the trigger status
You can view the trigger input status and whether the light is pulsing
when the RT200 is set to pulse mode. To do this, press the SELbutton
for one second and CH1 is displayed. Use the p and q buttons to
select trg and press SEL. The display shown below appears:
9.11 Viewing the output current
You can view an approximate measure of the output current from the
RT200 front panel. The current measurement is updated roughly once
per second, but this can be slower when the RT200 is set to pulsed
operation.
— 48 —
