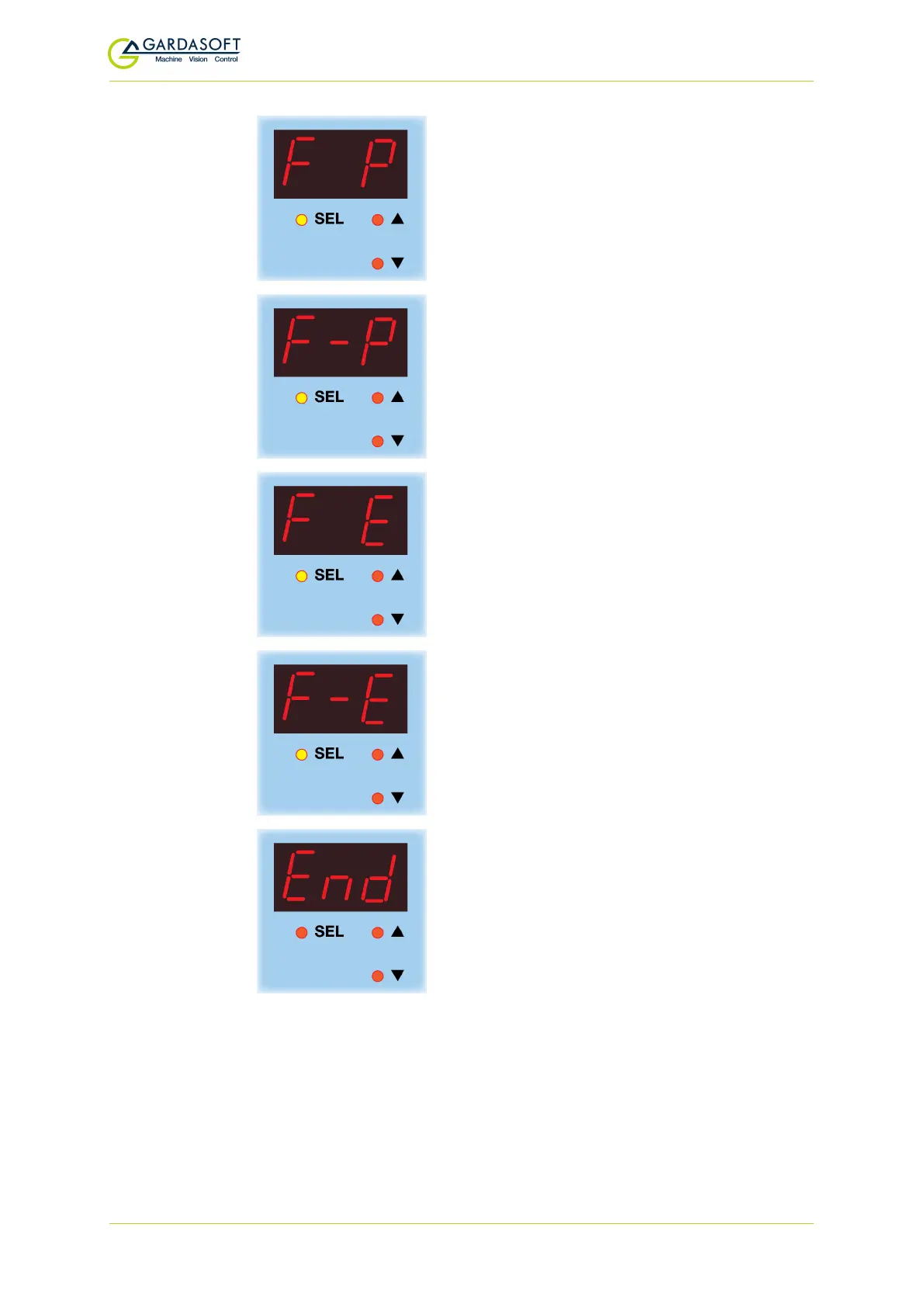

To set the trigger polarity so that it is active
high, press the
SEL
button with
F P
dis-
played. Or...
If you wish to set the trigger polarity so that it
is active low, use the p and q buttons to
select
F-P
and press the
SEL
button.
To set the error detection, press the
SEL
button with
F E
displayed.
Or...
If you wish to disable the error detection, use
the
p
and
q
buttons to select
F-E
, and press
the
SEL
button.
Selected output is set up on the RT200.
9.6 Setting up pulsed operation
Pulsed operation allows you to set up the characteristics of the
lighting pulse irrespective of the trigger pulse duration. Press and
hold SELfor one second , CH1 is displayed. Use the p and q buttons
to select the channel you want to set up, and follow the keystrokes
below:
