GARDTEC 872 - Secure Redcare STU Wiring

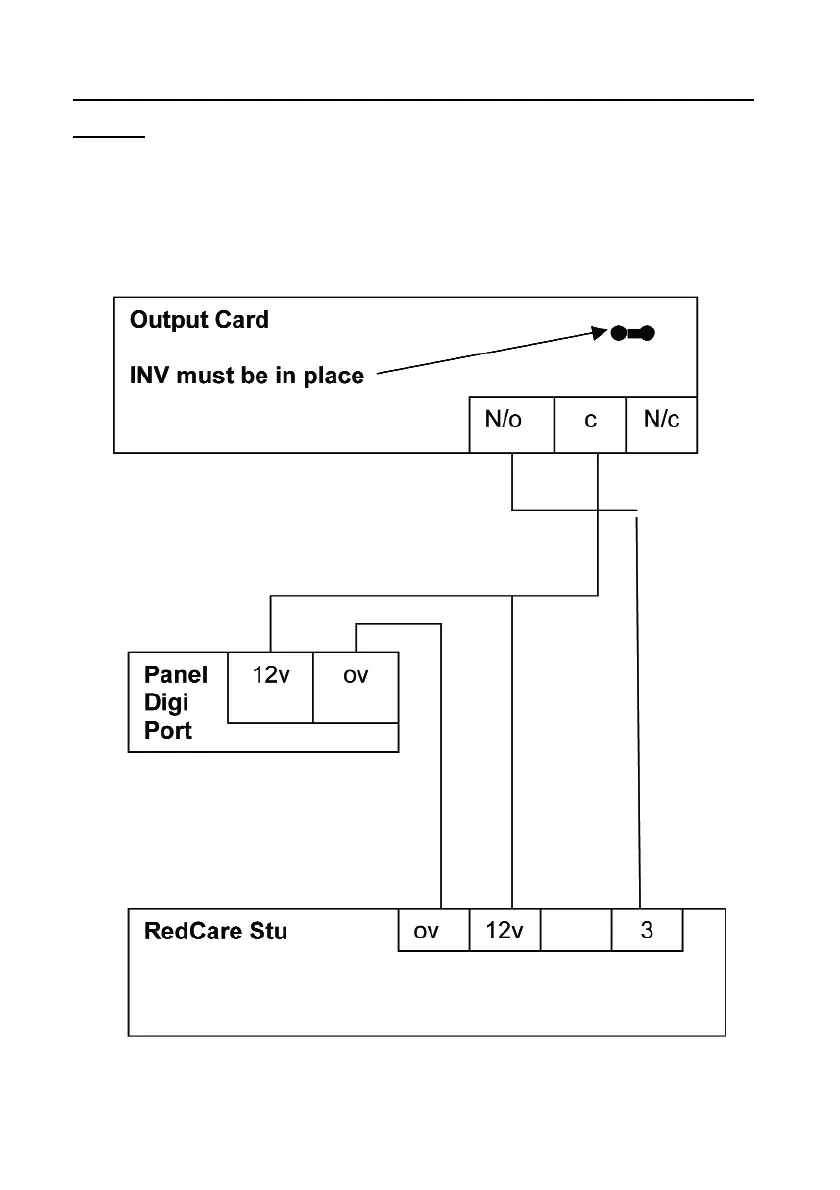

T
ypical Secure Wiring to RedCare STU from Output
Card.
The preferred method for secure Comms Channel Wiring is shown below for a single
channel. The security in this format is greater than using Latch / On-board Relay / Det
Reset Terminal(s) and is therefore recommended. This should be repeated for other
required Outputs.
Page 109
GardTec 872
Appendix 1
872.qxd 05/11/2003 15:01 Page 109
