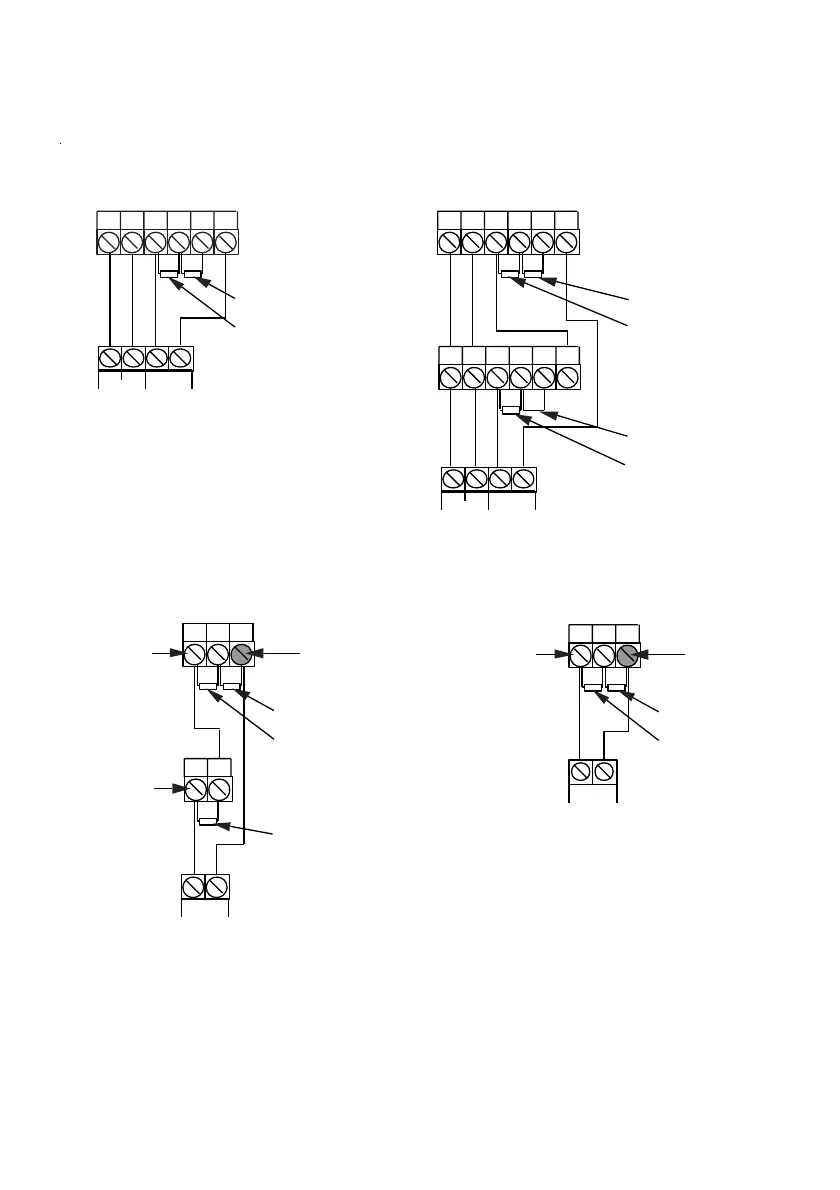

GARDTEC 872 - Zone Expander Cards

Page 38
+ -
Alarm Alarm TMP TMP
4K7 Resistor
6K8 Resistor
+
-
Alarm
Zone
Aux
Single Detector
Gardscan, Shockgard etc.
+ -
Alarm Alarm TMP TMP
4K7 Resistor
6K8 Resistor
+ -
Alarm Alarm TMP TMP
+
-
Alarm
Zone
Aux
Wire Link
6K8 Resistor
Double Detector
Gardscan, Shockgard etc.
Alarm Alarm TMP
4K7 Resistor
6K8 Resistor
Alarm
Zone
Single Contact
Any Brass Screw
For Tamper
Use Two Silver
Screws For Alarm
Alarm Alarm TMP
4K7 Resistor
6K8 Resistor
Alarm
Zone
Double Contact
Any Brass Screw
For Tamper
Use Two Silver
Screws For Alarm
Alarm Alarm
6K8 Resistor
Use Two Silver
Screws For Alarm
Fig. 26
Fig. 27
Fig. 28
Fig. 29
GardTec 872
Wiring Connections
872.qxd 05/11/2003 15:01 Page 38
