PLATEN ZEROING continued
Raise
Back
Right
Lower
Front
Left

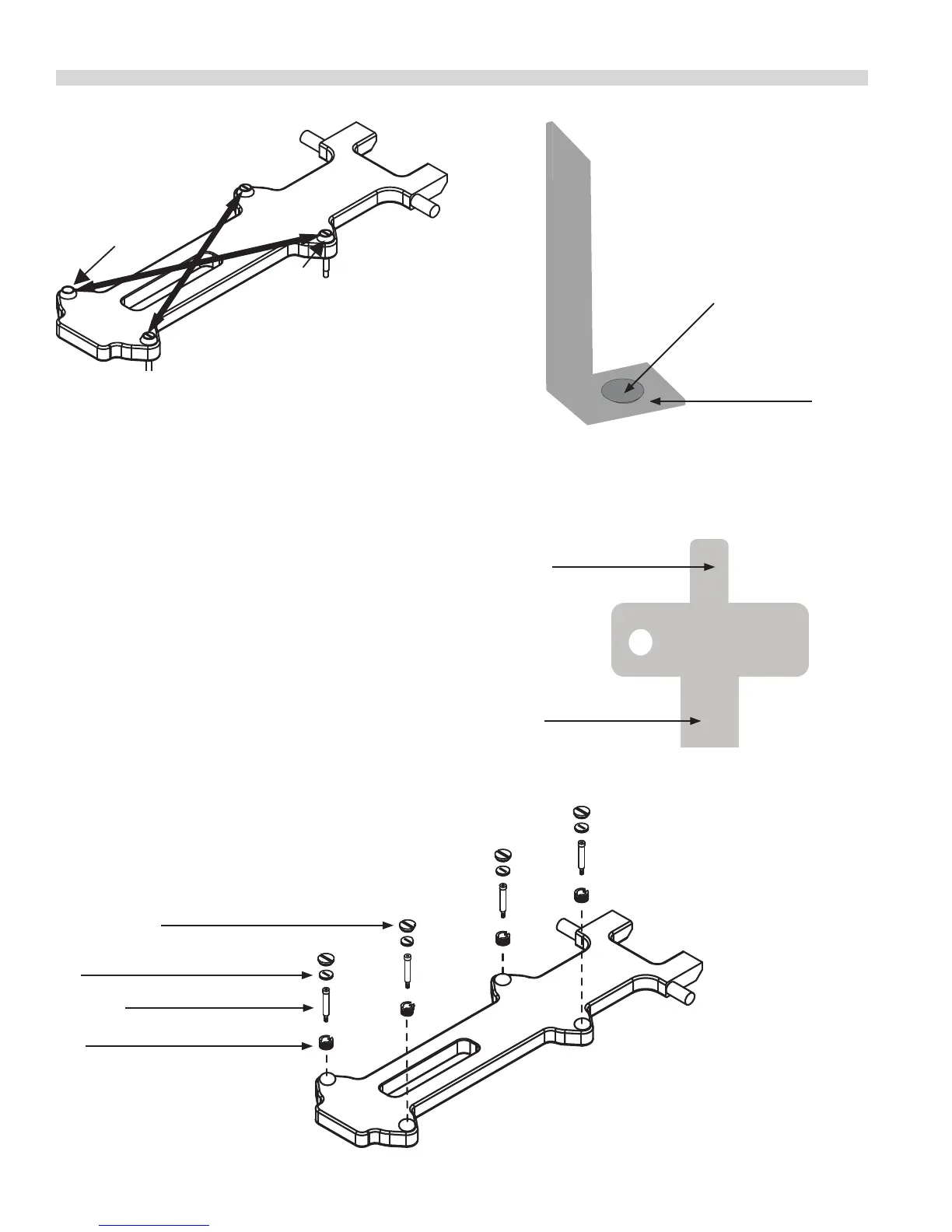

Platen leveling should be done from one corner
to the opposite corner. The adjuster nuts should
be turned opposite of one another.
Platen Adj Lock Nut (PN 1859103)
Shoulder Bolt (PN 8005401)
Platen Adjuster Nut (PN 1859101)
Platen Adjuster Cap (PN 1859102)
This end to remove Adjuster
Locking Cap
This end to remove Grease Cap
and to make adjustments to the
adjuster nuts
Platen Adjusting Tool (PN 4523323)
“No-Go”
“Go”
Platen Gapping Tool (PN 1838701)
