Garland XG24-JIB User Manual

Part # 4523133 Rev 4 (08/04/09)Page 8
SPECIFICATIONS continued
INTRODUCTION
The Garland Xpress grill, for Jack in the Box provides
a method for ecient two-sided cooking, while
accommodating a variety of products. The unit will also serve
as a at grill, and meets all of Jack in the Box’s standards for
safety, eciency, and cleanliness.
Warranty
This warranty covers defects in material and workmanship
under normal use providing that:
a) The equipment has not been accidentally or intentionally
damaged, altered or misused.
b) The equipment is properly installed, adjusted, operated
and maintained in accordance with national and local
codes and in accordance with the installation instructions
provided with this product.
c) The warranty serial number axed to the appliance by
Garland has not been defaced, obliterated or removed.
d) An acceptable report for any claim under this warranty is
supplied to Garland.
The equipment warranty coverage remains in force for one
(1) year (parts and labor) from the date the equipment is put
into operation.
The Garland Group agrees to repair or replace, at it’s
option, any part that proves to be defective in material or
workmanship at no charge for the part or normal labor.
We assume no responsibility for installation, adjustments,
diagnosis, or normal maintenance such as: lubrication of
springs or valves. We exclude failures caused by erratic
voltage or gas supplies. We assume no responsibility for
travel costs beyond 100 miles round trip, travel other
than overland, and overtime costs of repair. We exclude
broken glass, paint and porcelain nish, surface rust, gasket
material, ceramic material , light bulbs and fuses from normal
coverage. We exclude damage or dysfunction caused by re,
ood, and like “Acts of God” that are beyond the control of
The Garland Group.
The Garland Group’s liability on a claim of warranty shall
not exceed the price of the material and/or service , which
caused the claim. This warranty is limited and is in lieu of all
other warranties, expressed or implied. The Garland Group,
our employees, or our agents shall not be held liable for any
claims of personal injury or consequential damage or loss.
This warranty gives you specic legal rights, and you may
have other rights which vary from state to state.

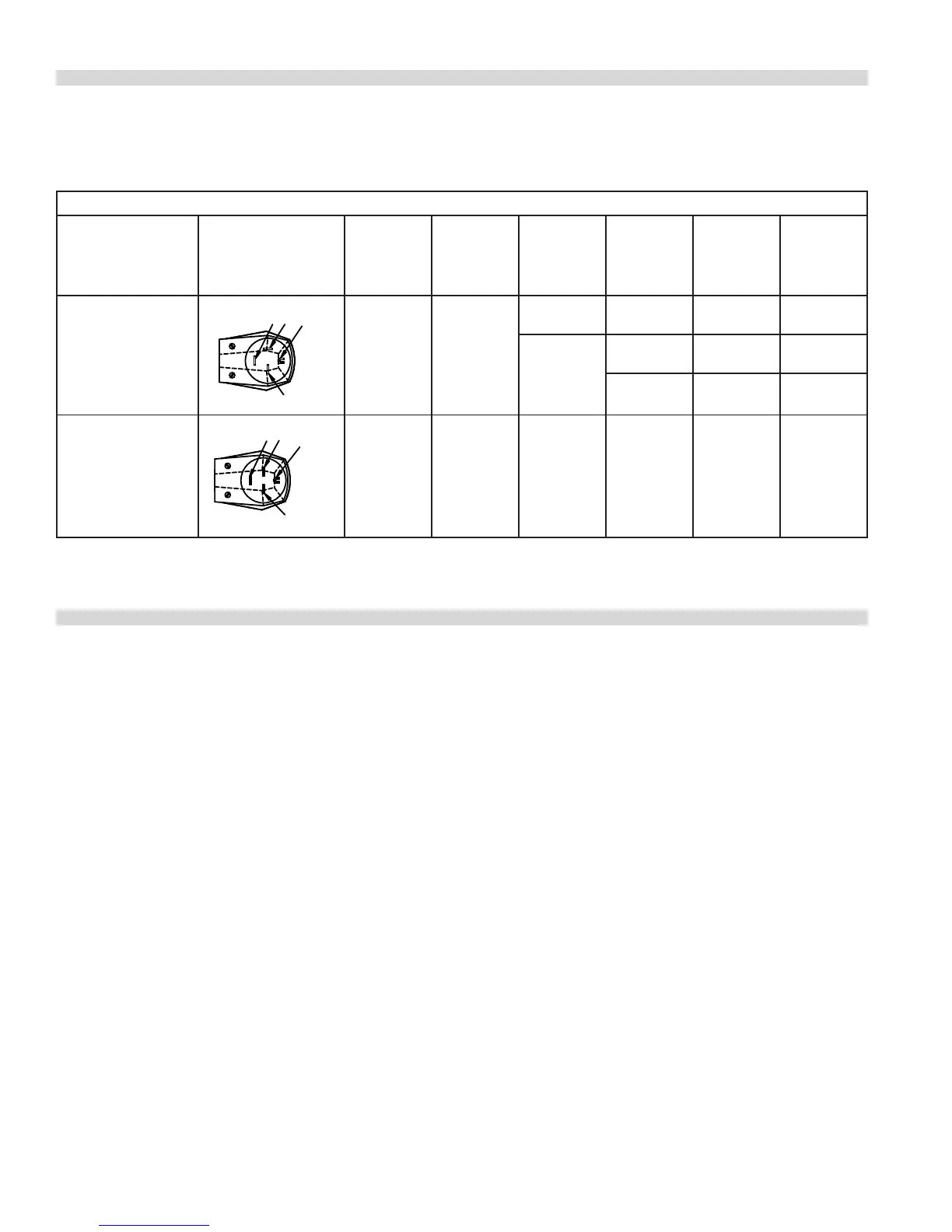

Plug Conguration
The grill is supplied with an electrical power supply cord and plug to match the specic voltage as it was constructed. The
following table shows the correct plug conguration to match the model and voltage.
Xpress Grill Cord and Plug Conguration
P/N
(includes electrical
and gas inlet
plumbing)
Plug Type
Cord
Gauge
Supplied
NEMA Plug Model
Voltage
(3ph Delta)
Maximum
Current
(Amps)
Minimum
Cord
Gauge
4524785
Z
GND
Y X
4-6AWG 15-50P
XG24-JIB 208 24.90 4-10AWG
XG36-JIB
208 37.43 4-6AWG
240 32.43 4-8AWG
4525509
X
GND
Z
Y
4-10AWG 15-30P XG24-JIB 240 21.61 4-10AWG

Garland XG24-JIB Specifications

General

Brand	Garland
Model	XG24-JIB
Category	Grill
Language	English
