Garmin G1000 Columbia 350 User Manual

Garmin G1000 Cockpit Reference Guide for the Columbia 350/400
190-00567-01 Rev. A
SECTION 7 – NAVIGATION
7-29
7.15 NEAREST AIRSPACES

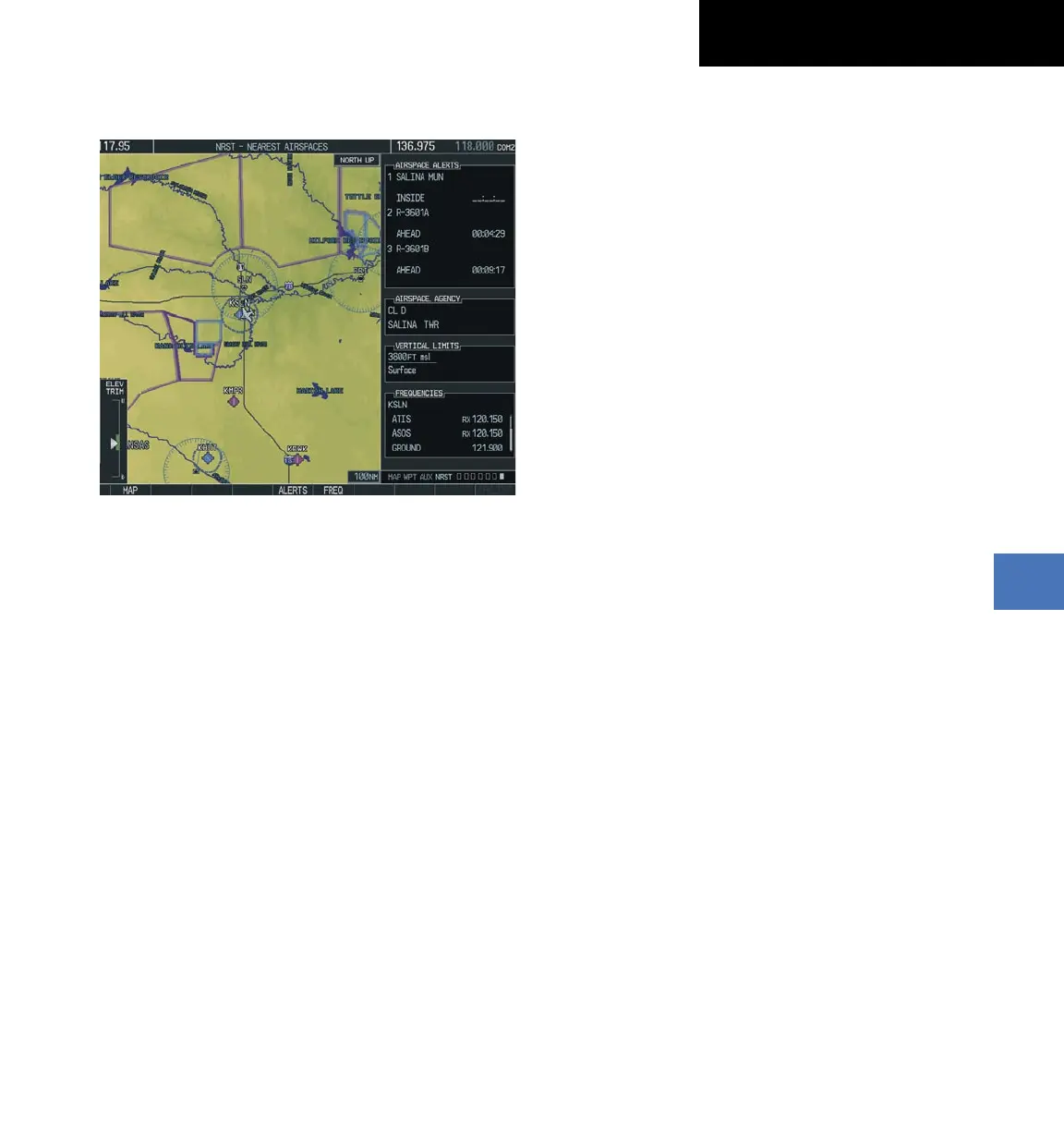

Figure 7-67 Nearest Airspaces Page
Select the Nearest Airspaces Page
1) Turn the large FMS Knob to select the ‘NRST’ page
group.
2) Turn the small FMS Knob to select the seventh
rectangular page icon.
Airspace Alerts Box
• If the projected course takes the aircraft inside an
airspace within the next ten minutes, ‘Ahead’ is
displayed.
• If the aircraft is within two nautical miles of an
airspace and the current course takes the aircraft
inside, ‘Ahead < 2 nm’ is displayed.
• If the aircraft is within two nautical miles of an
airspace and the current course will not take the
aircraft inside, ‘Within 2 nm’ is displayed.
• If the aircraft has entered an airspace, ‘Inside’ is
displayed.
View Additional Details for a Listed Airspace
1) With the Nearest Airspace Page displayed, press
the FMS Knob to activate the cursor.
2) Turn either FMS Knob to scroll through the list,
highlighting the desired airspace.
3) Press the ALERTS Softkey to place the cursor in the
‘AIRSPACE ALERTS’ field.
4) Turn either FMS Knob to select the desired
airspace.
5) Press the FMS Knob to remove the flashing
cursor.
View and Quickly Load the Frequency for a
Controlling Agency
1) With the Nearest Airspace Page displayed, press the
FREQ Softkey to place the cursor in ‘FREQUENCIES’
field.
2) Turn either FMS Knob to select the desired
frequency.
3) Press the ENT Key to load the frequency into the
COM frequency standby field.
4) Press the FMS Knob to remove the flashing
cursor.

Garmin G1000 Columbia 350 Specifications

General

Aircraft	Columbia 350
Display Type	LCD
Display Resolution	1024 x 768 pixels
Operating Temperature	-20°C to +55°C
Display Size (PFD and MFD)	10.4 inches
Power Supply	28 VDC
GPS Receiver	WAAS-capable
Navigation	VOR, ILS, GPS
Database	Jeppesen
Interface	ARINC 429, RS-232
Air Data Computer	Integrated
AHRS	Integrated
