Garmin G1000 Cockpit Reference Guide for the Columbia 350/400
190-00567-01 Rev. A
2-1
SECTION 2
FLIGHT INSTRUMENTS
SECTION 2: FLIGHT INSTRUMENTS
The following discussions pertain to the Primary Flight Display, unless otherwise indicated. The gradient color
background shown in the following illustrations, is used in WAAS capable systems. A solid blue and brown background
will be seen in non-WAAS systems
8
7
16
13
12
11
1
19
17
20
21
9
5
6
2
4
3
15
10
14
18
1
NAV Frequency Box
2
Airspeed Indicator
3
True Airspeed
4
Current Heading
5
Horizontal Situation Indicator ( HSI)
6
Outside Air Temperature (OAT)
7
Softkeys
8
System Time
9
Transponder Data Box
10
Selected Heading Bug
11
Turn Rate Indicator
12
Altimeter Barometric Setting
13
Vertical Speed Indicator (VSI)
14
Selected Altitude Bug
15
Altimeter
16
Selected Altitude
17
COM Frequency Box
18
AFCS Status Box
19
Navigation Status Box
20
Slip/Skid Indicator
21
Attitude Indicator

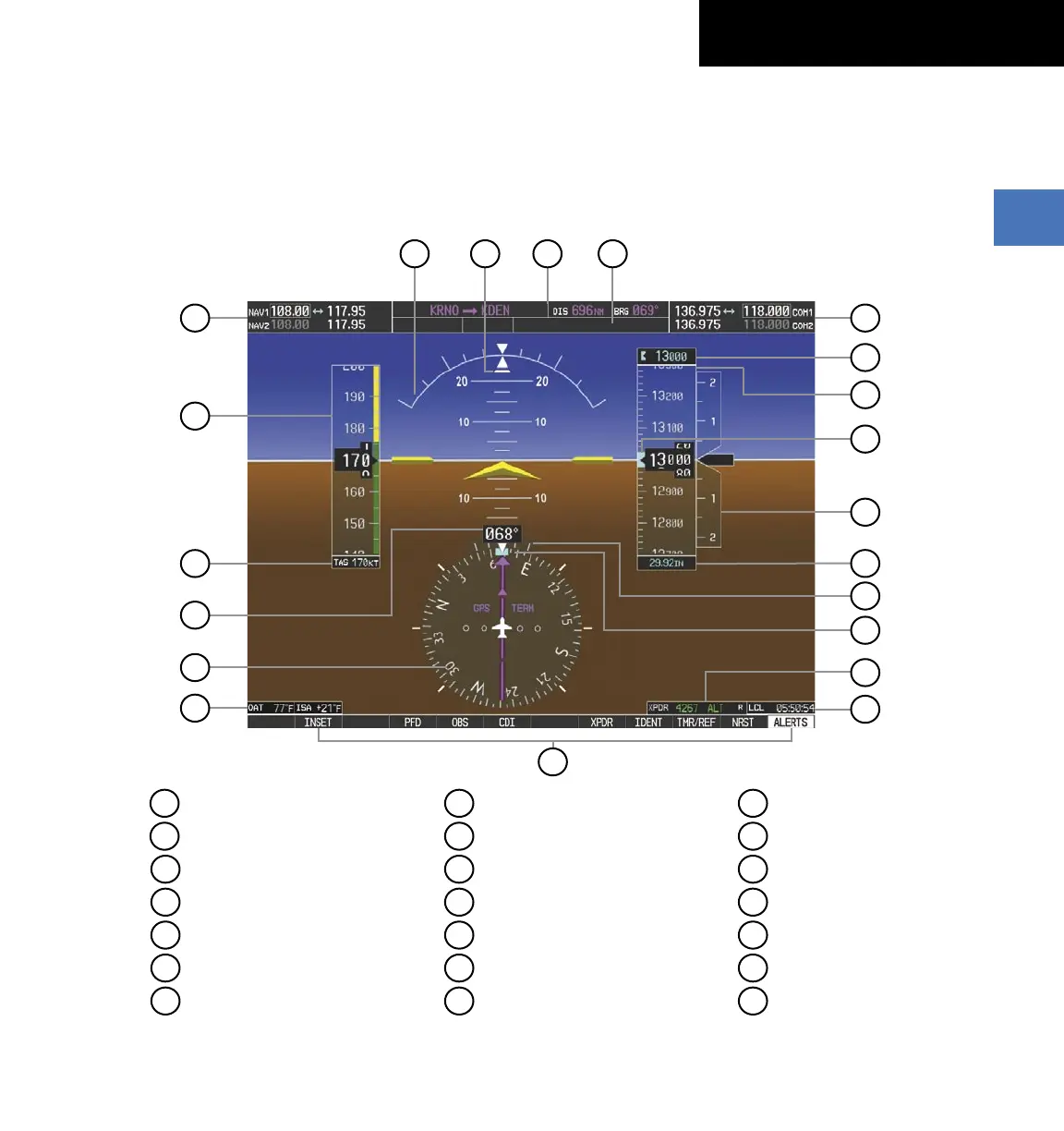

Figure 2-1 Primary Flight Display (Default)
