NOTES:
2-1. DEPENDING ON HOW THE SYSTEM IS PHYSICALLY WIRED, THIS TERMINATOR MAY OR MAY NOT BE
NEEDED IN THE INSTALLATION. THE CAN BUS MUST BE TERMINATED AT ONLY THE TWO MOST EXTREME
POINTS ON THE CAN BACKBONE. IF USED WITH THE G3X SYSTEM REFER TO THE G3X INSTALL MANUAL
FOR SPECIFIC GUIDANCE ON CAN BUS WIRING.
2-2. ALL RED PLUGS MUST BE REMOVED AND DISCARDED. THEY ARE NOT TO BE USED FOR CAPPING AND
SEALING UNUSED PORTS.
9 PIN BACKSHELL
w/CAN TERM
G5 BATTERY PACK
330-00625-09
011-01855-00
011-03893-00
011-03809-00
9 PIN D-SUB CONNECTOR
011-03002-00
G5 UNIT
CONNECTOR KIT, 9 PIN,
G5 INSTALLATION KIT 011-03892-00
SEE NOTE 2-2
MOUNTING SCREW, #6-32 PHP x 0.50[12.7] 211-60207-12 3 PLACES
G5 MOUNTING RING 115-02251-03
(OPTIONAL) CAN TERMINATOR 011-02887-00 SEE NOTE 2-1
AIRCRAFT PANEL

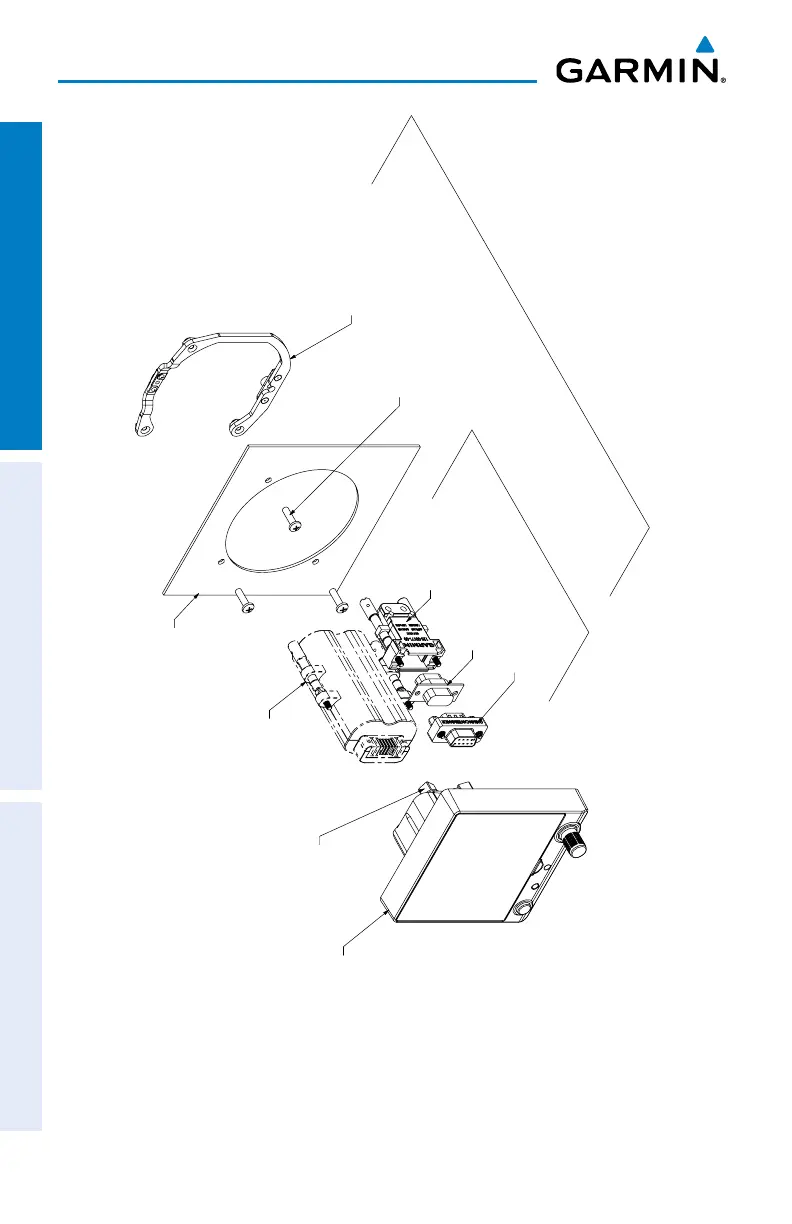

Figure 1-11 G5 Installation Drawing
