IMPORTANT!
Ensure the Page Scaling setting
is set to NONE when printing
this page. Verify dimensions
of printed template are
accurate before cutting panel.
For mounting holes, drill out with
#25 drill bit and use Garmin
mounting ring P/N 115-02251-03.
For panel cutout, drill out with a
3.125" diameter bimetal hole saw.
The outline in this drawing is identical
to the outline of the actual bezel.
Cut out panel
to inside line

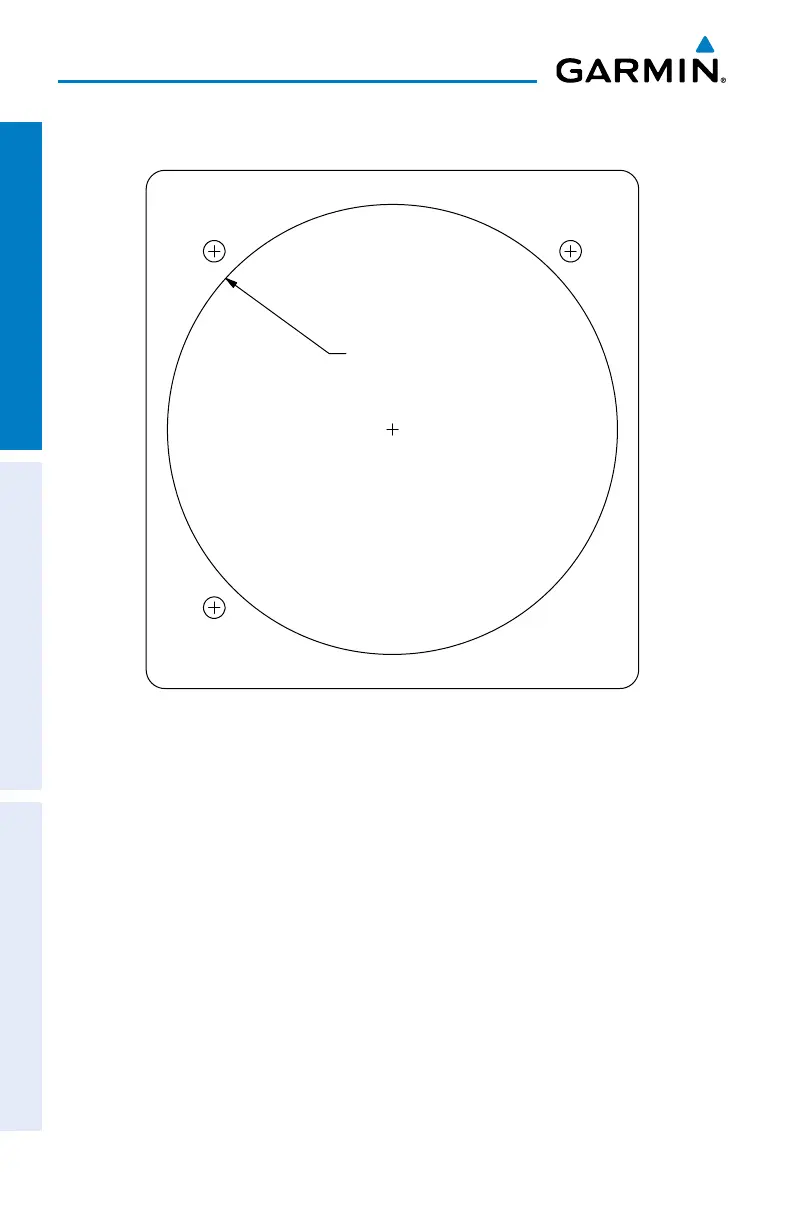

Figure 1-13 G5 Panel Cutout Drawing (Template)
