Garmin GPSMAP 1243xsv User Manual

Selecting the GPS Source
You can select your preferred source for GPS data, if you have more than one GPS source.
1 Select Settings > System > GPS > Source.
2 Select the source for GPS data.
Customizing the Chartplotter
Home Screen

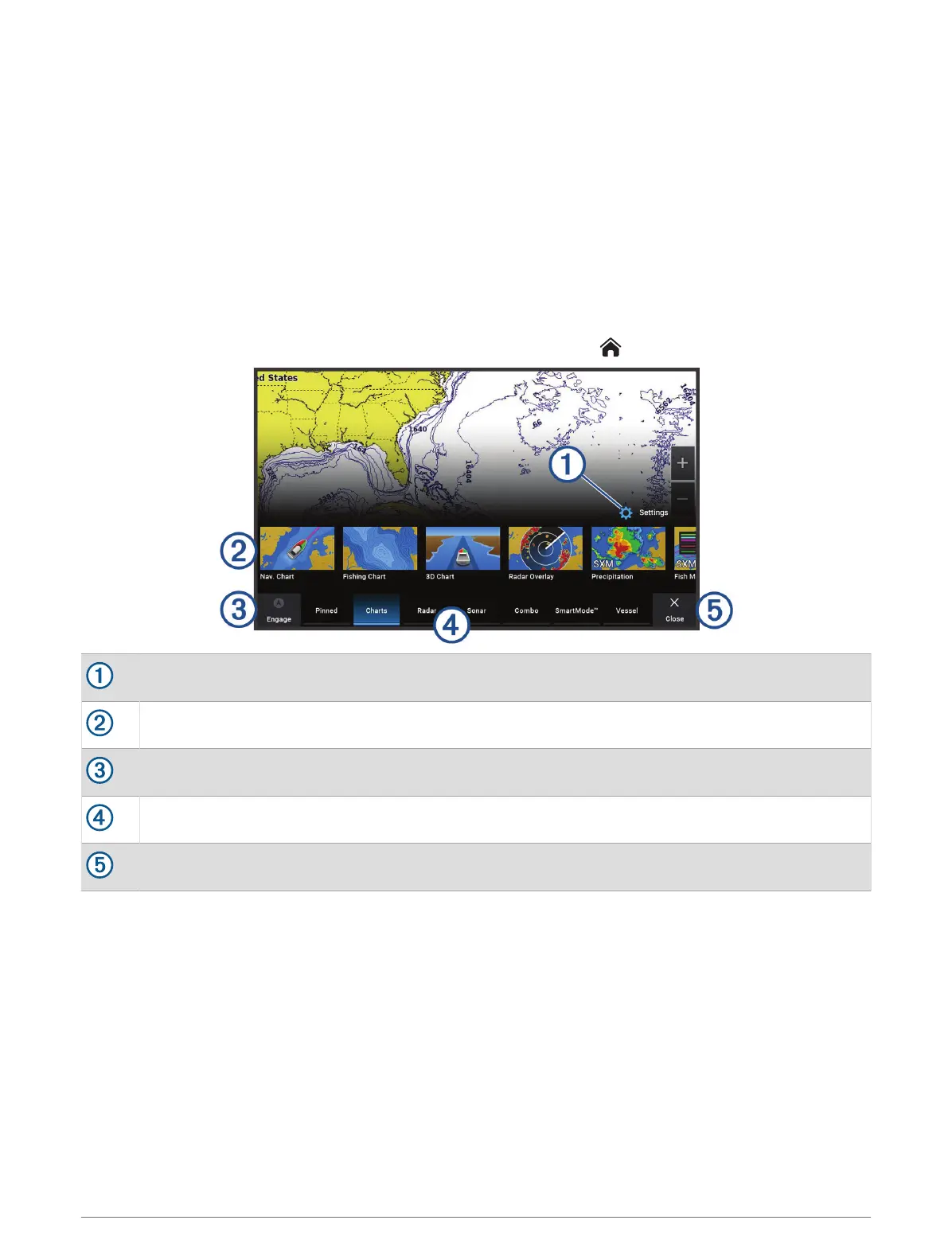

The home screen is an overlay that provides access to all of the features in the chartplotter. The features are
dependent on the accessories you have connected to the chartplotter. You may not have all of the options and
features discussed in this manual.
When viewing any screen, you can return to the home screen by selecting .
Settings menu button
Features buttons
Present time, present depth, or autopilot control button
Category tabs
Closes the home screen and returns to the previously open page
The categories tabs provide quick access to the main features of your chartplotter. For example, the Sonar tab
displays the views and screens related to the sonar feature. You can save items you commonly access to the
Pinned category.
TIP: To view the available categories tabs, you may need to click and drag a tab to scroll left or right.
The SmartMode items are geared toward an activity, such as cruising or docking. When a SmartMode button
is selected from the home screen, each display in the station can show unique information. For example, when
Cruising is selected from the home screen, one display can show the navigation chart and another display can
show the radar screen.
When multiple displays are installed on the Garmin Marine Network, you can group them together into a station.
A station enables the displays to work together, instead of as several separate displays. You can customize
the layout of the screens on each display, making each screen different on each display. When you change the
layout of a screen in one display, the changes appear on only that display. When you change the name and
symbol of the layout, those changes appear on all displays in the station, to maintain a consistent appearance.
8 Customizing the Chartplotter

Garmin GPSMAP 1243xsv Specifications

General

Display Resolution	1280 x 800 pixels
Display Type	WXGA display
Touchscreen	Yes
Keypad	Yes
Water Rating	IPX7
Antenna	Internal or external over NMEA 2000
Receiver	10 Hz
Garmin Marine Network Ports	2
NMEA 2000 Ports	1
NMEA 0183 Input Ports	1
NMEA 0183 Output Ports	1
Wireless Connectivity	Yes
J1939 Connectivity	Yes
BlueChart g3 Charts	Yes
LakeVü g3 Charts	Yes
Waypoints	5, 000
Routes	100
Track Log	50, 000 points; 50 saved tracks
Sonar Capabilities	Yes
CHIRP Sonar	Yes
ClearVü	Yes
SideVü	Yes
Traditional Sonar Frequency	50/77/83/200 kHz
ClearVü/SideVü Frequency	260/455/800 kHz
Weight	5.1 lbs (2.3 kg)
Mounting Options	Flush
Video Input Ports	1 BNC
Accepts Data Cards	microSD card
CHIRP Frequency	Low, High
Transmit Power	500 W (RMS)
Operating Temperature	-15°C to 55°C (5°F to 131°F)
Storage Temperature	-4°F to 158°F (-20° to 70°C)
Power Input	10-32 Vdc
