FrontVü Sonar View
The Panoptix FrontVü sonar view increases your situational awareness by showing obstructions under the
water, up to 91meters (300feet) in front of the boat.
The ability to effectively avoid forward collisions with FrontVü sonar decreases as your speed rises above 8
knots.
To see the FrontVü sonar view, you must install and connect a compatible transducer, such as a PS21
transducer. You may need to update the transducer software.

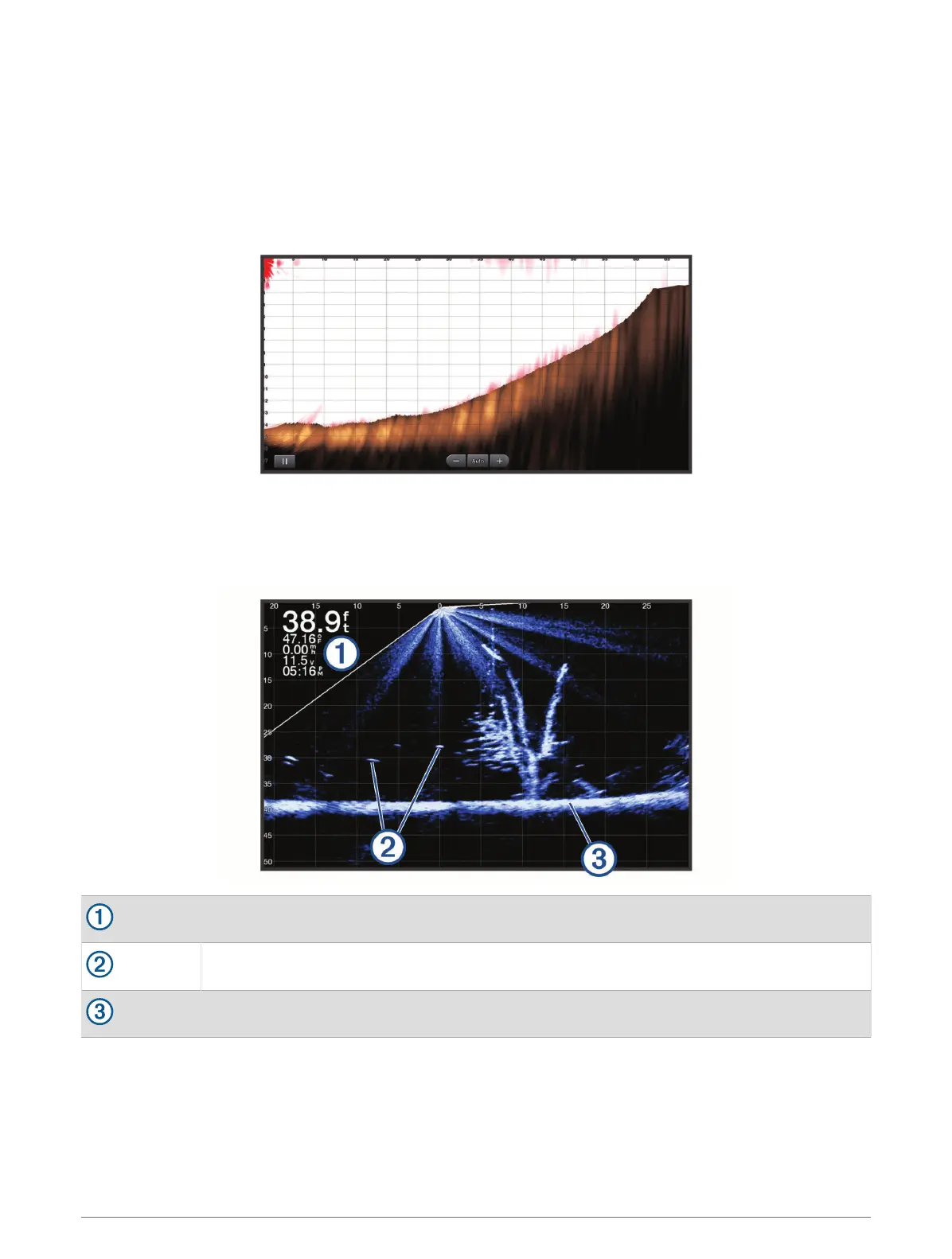

LiveScope Sonar View
This sonar view shows a live view of what is in front of or below the boat and can be used to see fish and
structures.
Depth information
Suspended targets or fish
Bottom of the body of water
76 Sonar Fishfinder

Garmin GPSMAP 1243xsv Specifications

General

Display Resolution	1280 x 800 pixels
Display Type	WXGA display
Touchscreen	Yes
Keypad	Yes
Water Rating	IPX7
Antenna	Internal or external over NMEA 2000
Receiver	10 Hz
Garmin Marine Network Ports	2
NMEA 2000 Ports	1
NMEA 0183 Input Ports	1
NMEA 0183 Output Ports	1
Wireless Connectivity	Yes
J1939 Connectivity	Yes
BlueChart g3 Charts	Yes
LakeVü g3 Charts	Yes
Waypoints	5, 000
Routes	100
Track Log	50, 000 points; 50 saved tracks
Sonar Capabilities	Yes
CHIRP Sonar	Yes
ClearVü	Yes
SideVü	Yes
Traditional Sonar Frequency	50/77/83/200 kHz
ClearVü/SideVü Frequency	260/455/800 kHz
Weight	5.1 lbs (2.3 kg)
Mounting Options	Flush
Video Input Ports	1 BNC
Accepts Data Cards	microSD card
CHIRP Frequency	Low, High
Transmit Power	500 W (RMS)
Operating Temperature	-15°C to 55°C (5°F to 131°F)
Storage Temperature	-4°F to 158°F (-20° to 70°C)
Power Input	10-32 Vdc
