8 GPSMAP 76Cx Owner’s Manual
GETTING STARTED > USING THE GPSMAP 76CSX

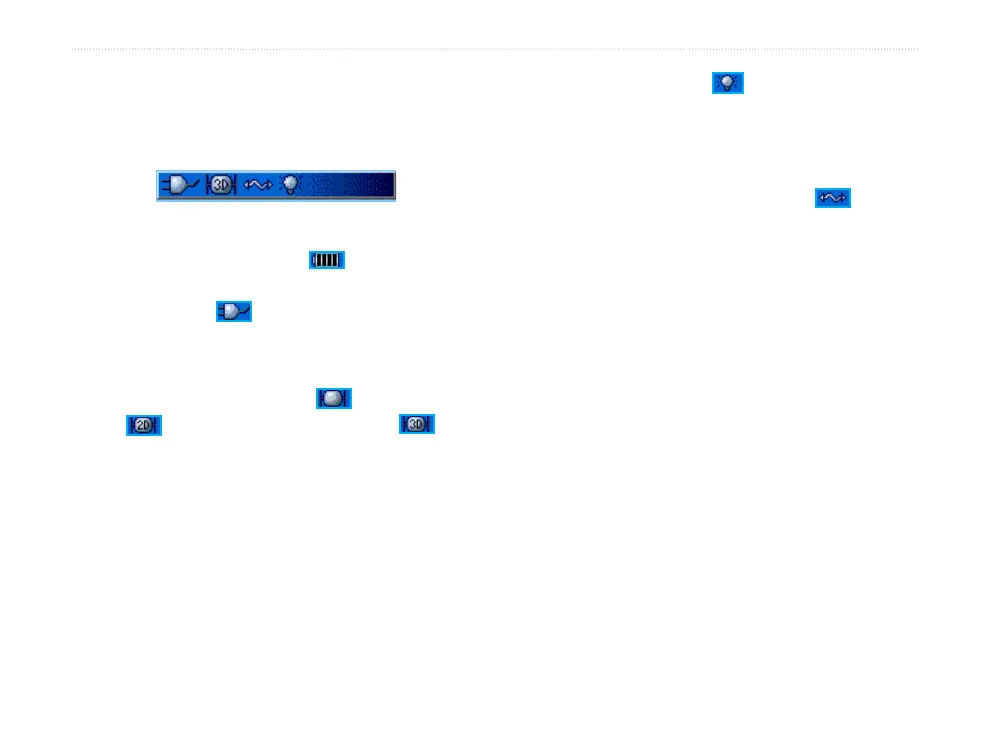

Using the Status Bar
At the top of each page, the status bar provides status
information for several unit features.
Status Bar
• The Battery Power icon ( ) shows the
remaining power as the battery. The Auxiliary
Power icon ( ) appears when the unit is
plugged in to an external or USB power source.
• Satellite signal status is shown when searching
for or acquiring satellites (
), when a 2D fix
( ) is attained and when a 3D fix ( ) is
attained (four or more satellites are received.)
• The Backlight icon (
) appears when the
backlight is on. The Backlight is off when
you turn the unit on. The Backlight uses a
significant amount of battery power.
• The USB Cable Connection icon (
)
appears when the unit is in communication with
a PC USB.

Garmin GPSMAP 76Cx Specifications

General

Auto	No
Marine (chartplotters, sounders)	Yes
Routes quantity	50
Tracks quantity	20
Number of waypoints	10000
Form factor	Handheld
Certification	RoHS
Interface	USB
GPS receiver	SiRFstarIII
RS-232 ports	1
Supported protocols	NMEA 0183
Display resolution	160 x 240 pixels
Display number of colors	256 colors
Display size (HxV) (imperial)	1.6 x 2.2 \
Battery type	AA
Battery life (max)	18 h
Number of batteries supported	2
GPS accuracy - position	10 m
GPS accuracy - velocity	0.05 m/s
Operating temperature (T-T)	-15 - 70 °C

Weight and Dimensions

Depth	30 mm
Width	69 mm
Height	157 mm
Weight	218 g
