USB-Link T
r
oubleshooting
37

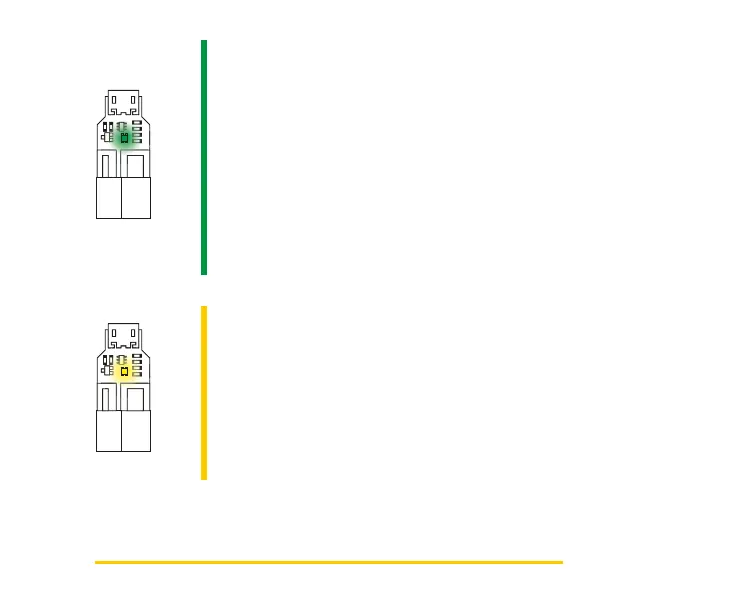

GREEN (glowing)
The USB-Link is connected to ASTER
and PC, Mac or smar
tphone
.
GREEN (blinking)
The USB-Link is connected to ASTER and PC, Mac
or smartphone, but ASTER does no
t hav
e rmwar
e
installed. Please install the A
STER rmw
are
.
YELL
OW (glowing)
The USB-Link is tr
an
smitting data.
37
39
Table of Contents
Table of Contents
3
Firmware Editions
4
Safety Summary
10
Installation
13
Calibration
22
Quick Access Menu
24
Selecting Pre-Cocking Mode
25
Selecting Profiles of Settings
26
Programming Via Trigger
27
Turning on the Programming Mode
29
Selecting a Function
30
Selecting Option of a Function
31
Saving an Option
31
Evoking Options of Advanced Function
32
Exiting the Programming Mode
32
Programming Via USB-Link
34
USB-Link Troubleshooting
37
Restoring Factory Settings
40
Low Battery Warnings
43
Vibrations after Connecting the Battery
43
ASTER Troubleshooting
43
Diagnostic Trouble Codes
45
How to Read DTC Explanations
47
No Errors
48
Under Voltage Protection
48
Motor Disc
50
Gear Not Detected
51
Overload (OVL)
52
Over Current Protection (OCP)
53
Short Circuit Protection
54
Over Temperature Protection
54
Self-Test Failure
55
Other Error
55
Legal Notice
56
