GATEXPERT SW400DC - 5.2 Control Board Drawing and Instructions

Instructions for SW400DC
www.gatexpertstore.com
12

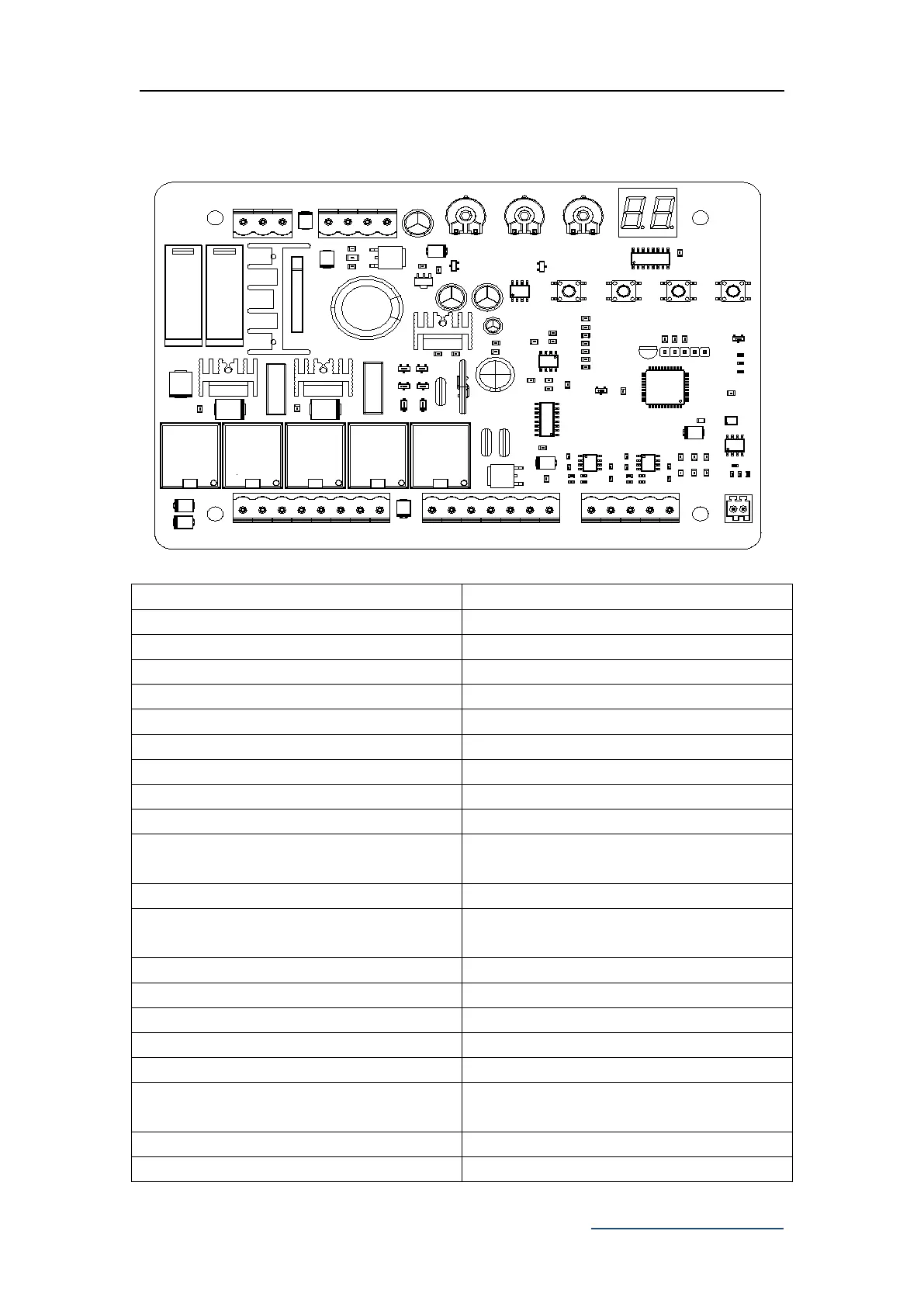

5.2 Control Board Drawing and Instructions
MOTOR1MOTOR1
AC24VINAC24VIN
FORCEFORCE SLOWSLOW
PROGPROG
＋
－
SETSET
DOWNDOWN SPEEDSPEED
MOTOR2MOTOR2
－ELOCK＋－ELOCK＋ －BLK＋－BLK＋
24V24V
＋SOLAR－＋SOLAR－ ＋BATT－＋BATT－
12V12V COMCOM COMCOM COMCOM OSCOSC GNDGND ANTANTPHPH PEDPEDEM1EM1 LM1LM1 EM2EM2 LM2LM2
Figure 12
Terminal
Description
1. AC24VIN
24VAC Power Supply Input
2. +SOLAR-
Solar Power Input
3. +BATT-
24V Battery Input
4. FORCE
Resistance Force
5. SLOW DOWN
Slow Stop Distance
6. SPEED
Moving Speed
7. MOTOR1
Motor1 Output
8. MOTOR2
Motor2 Output
9. -ELOCK+
Electric Lock Output
10. -BLK+
Alarm Lamp Output (Note: pay
attention to the negative and positive.)
11. +24V
24V Output Positive
12. +12V
12V Output Positive (No output under
dormant state)
13. EM1
Motor1 Hall Sensor Power Output
14. LM1
Motor1 Hall Sensor Limit Signal Input
15. EM2
Motor2 Hall Sensor Power Output
16. LM2
Motor2 Hall Sensor Limit Signal Input
17. PH
Photo Sensor Input Active
18. PED
Single Gate/Pedestrian Mode Input
Active
19. OSC
Single Channel Input Active
20. ANT
Antenna
