GATEXPERT SW400DC - 4.3 Installation Steps; 4.3.1 Preparation before Main Machine Installation

Instructions for SW400DC
www.gatexpertstore.com
5
1 4 5 0 m m
1 0 0 0 m m
1 0 6 m m
Figure 2

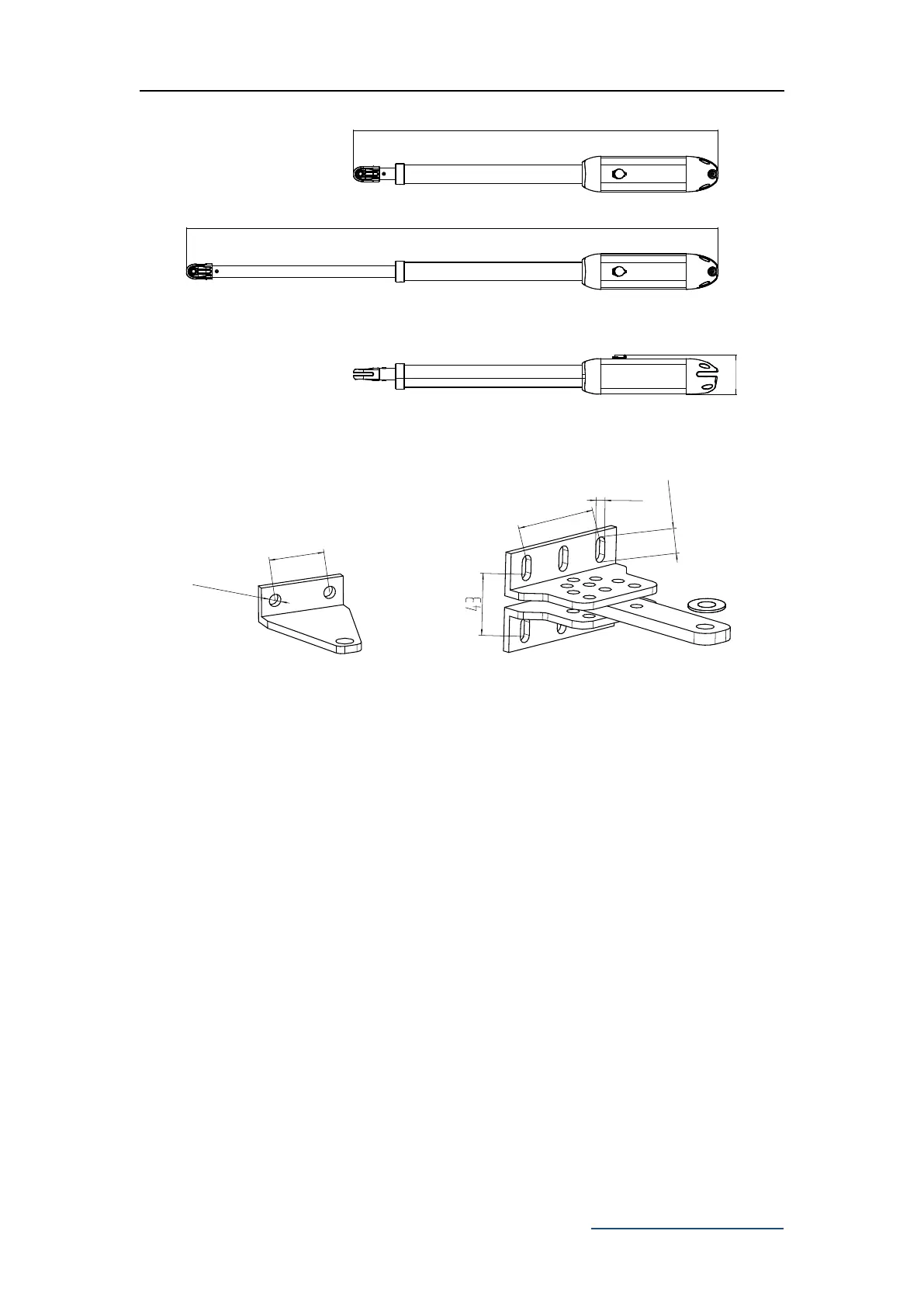

4.2.2 Size of Mounting Plate
F ro n t m o u n tin g b ra c k e t
W a ll b ra c k e t
7
0
m
m
8
.
5
m
m
1
7
.
5
m
m
4
0
m
m
2
x
8
.
5
m
m
φ
Figure 3
4.3 Installation Steps
4.3.1 Preparation before Main Machine Installation
Before installing the door opener, please confirm that the door were installed
correctly, please ensure that the door can be manually operated smoothly, and the
door limit stopper can effectively prevent the door to continue moving.
Please keep a distance of 40-50mm between the door bottom and the ground for
installing the electric lock. If electric lock is not required, the distance between the
door bottom and the ground should be ≥20mm;
The recommended mounting height of the 2 main machines is around 300 ~
800mm above the ground, and make sure there are reliable fixed points for mounting
brackets.
Cable bury
In order to ensure the normal operation of the door opener and protect the cable
from damage, please use two PVC pipes to bury the motor and power cables, and the
