Instructions for SW400DC
www.gatexpertstore.com
4
Noise
≤60dB
Working duty
S2, 30min
Recording of up remote controls
20
Remote frequency
433.92 MHz
Working temperature
-20°C - +70°C
Package weight
20kg
4. Installation
SW400DC swing gate opener is applicable to single leaf gate weight less than 400kg,
and the length shorter than 3m. The drive mode adopts the worm and worm gear to
combine the screw rod transmission. This gate opener must be installed inside the
enclosure or yard for protection.

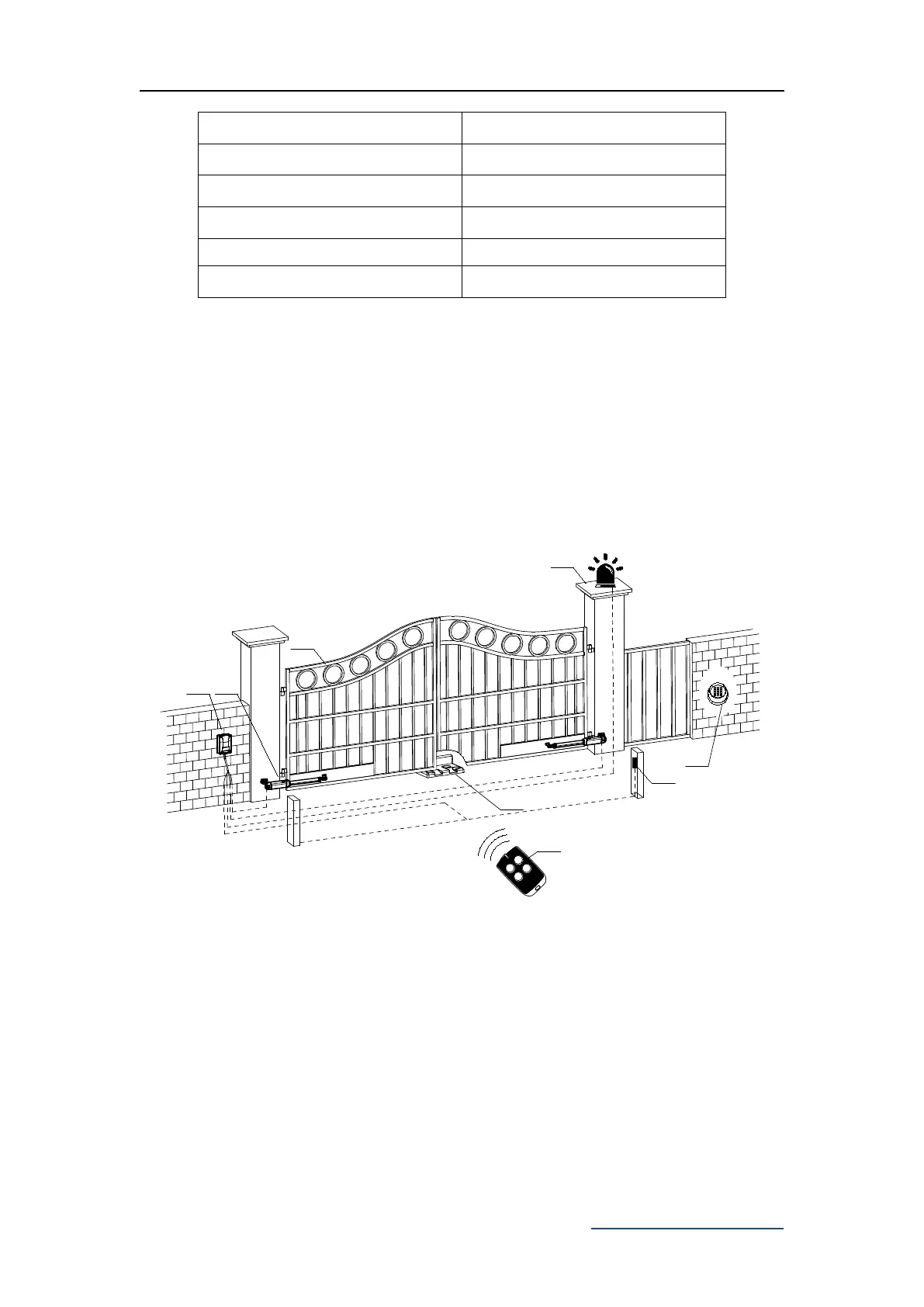

4.1 Installation Drawing
0
8
5 6
97
4
1 2 3
⑦
①
③
④
⑤
②
⑧
⑥
Figure 1
①
Control box
③
Gate
⑤
Infrared sensor (optional)
⑦
Remote control
②
Gate opener
④
Alarm lamp (optional)
⑥
Limit stopper
⑧
Wireless keypad (optional)
4.2 Size of Main Machine and Accessories
4.2.1 Size of Main Machine
