Instructions for SW400DC
www.gatexpertstore.com

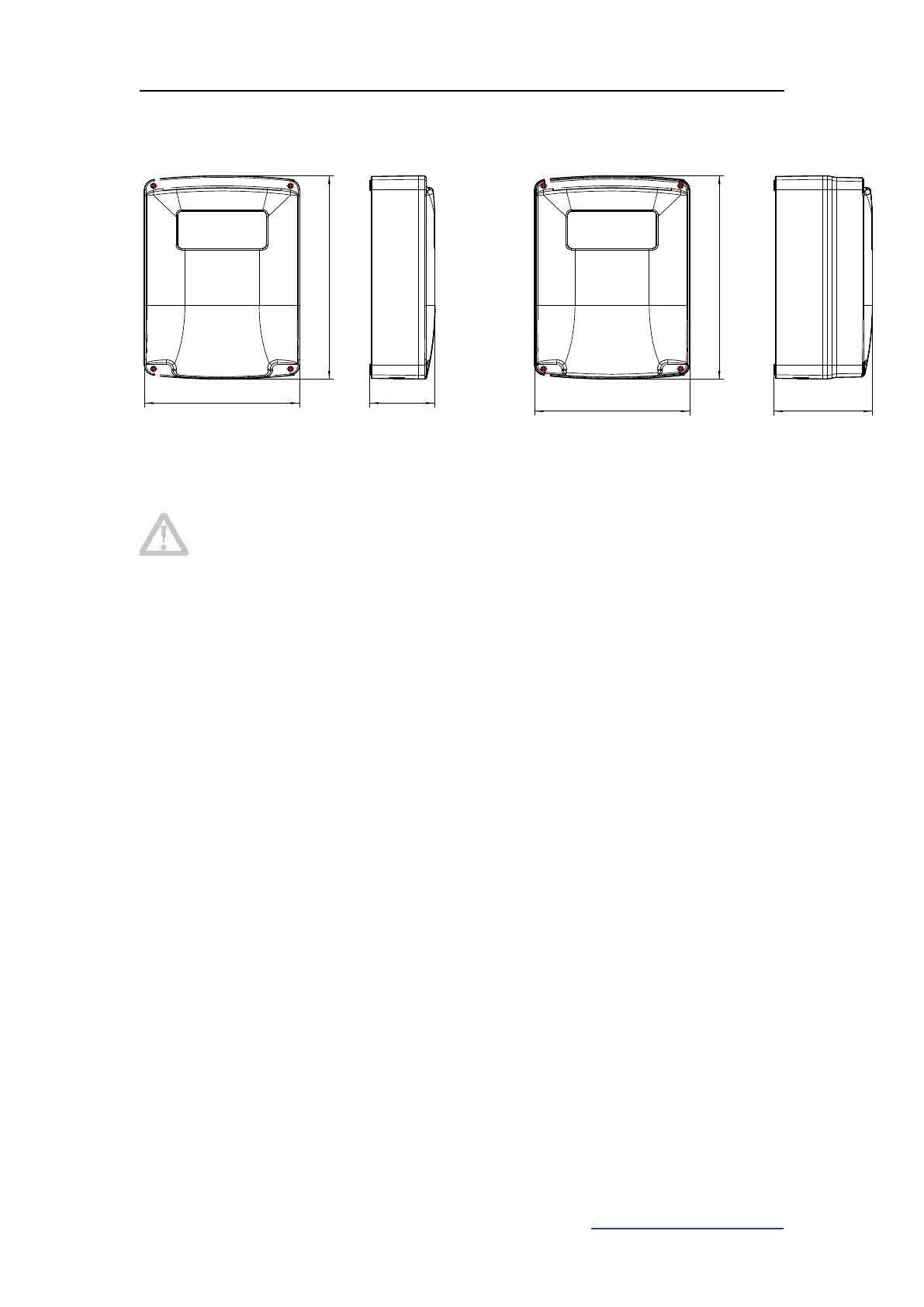

4.3.4 Size of Control Box
Control box without built-in battery Control box
with built-in battery
Figure 9
Warning
To ensure safety, please install the limit stopper at the close limit position
when the door opens inward (as shown in figure 8).
Before installing the main machine, please make sure the main machine and
components are in good mechanical performance and the door can be manually
operated flexibly.
One control unit can optionally drive one main machine or two main machines.
Earth leakage circuit breaker must be installed on where the gate movement can
be seen, and the minimum mounting height for the control box should be over
1.5m to avoid being touched by kids.
After installation, please check whether the mechanical property is good or not,
whether gate movement is flexible or not after unlocking, and whether the
infrared sensor (optional) is installed correctly and effectively.
2 1 0 m m
2 9 9 m m
1 3 3 m m
8 8 m m
2 9 9 m m
2 1 0 m m
