Instructions for SW400DC
www.gatexpertstore.com
diameter of other cables is over 0.5mm². The cable length should be determined by
users according to their installation situations.
Note: The outlet on the PVC pipe should be downward in order to avoid the rain
water flowing into the pipe along the cable.

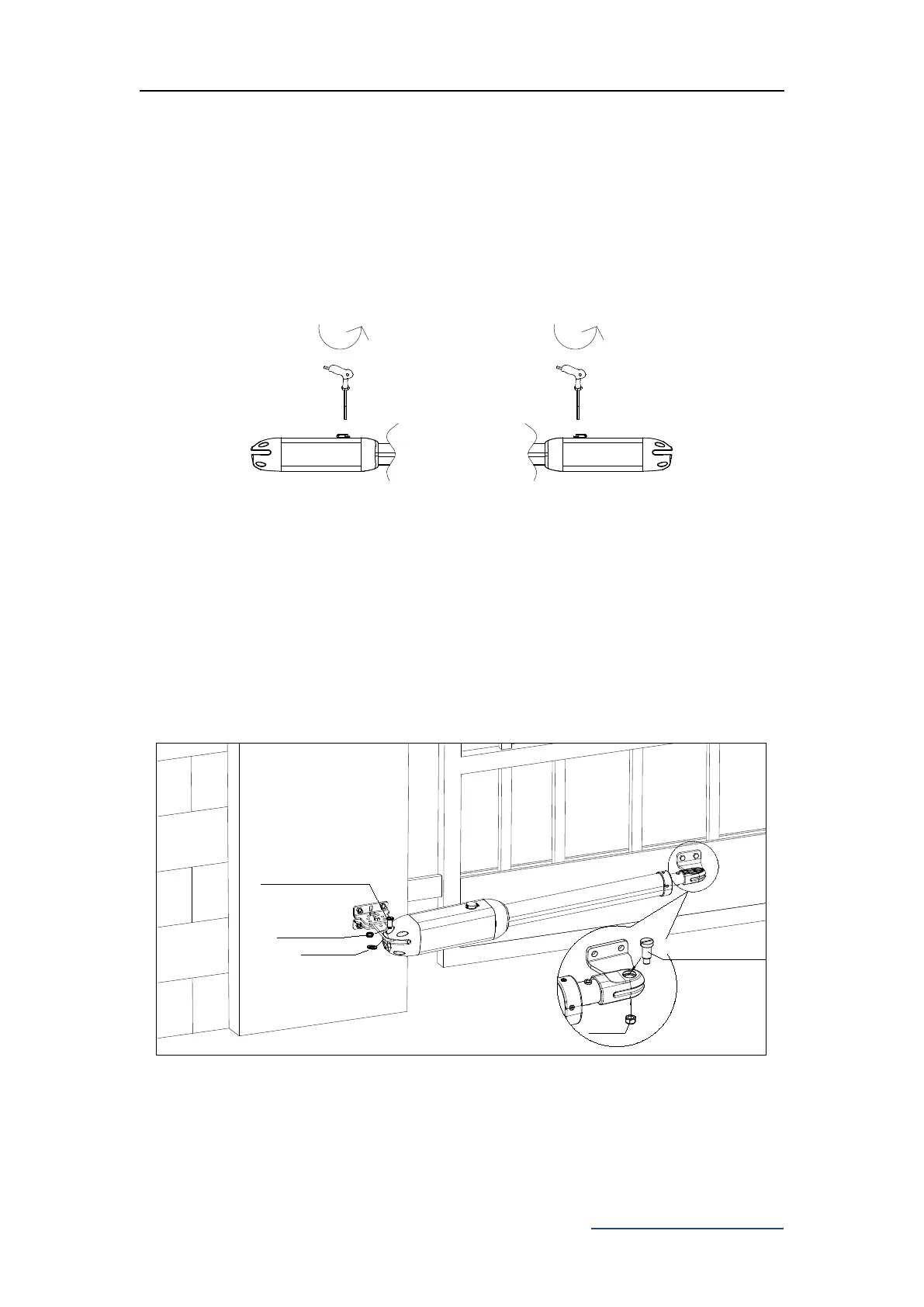

d) Before the installation, please unlock the two main machines. Unlock method:
Remove the cover, insert the manual release bar, rotate the bar until it’s released, as
shown in Figure 6, then turn the telescopic arm, you’ll find it is stretched easily.
Figure 6
4.3.3 Main Machine Installation
Please refer to Figure 7 to fix the tail of the main machine and the connecting bracket
with the installation screws, and then manually adjust the telescopic arm to the
appropriate length, finally fix the telescopic arm connector and the front mounting
bracket with the installation screws. Pull the door after installation to ensure the travel
is flexible without jamming.
Mounting screw (length)
Spring washer
Mounting screw (short)
Nut
gasket
Figure 7
