GBA ST1 - Dimensional Drawings

GBA Global Bill Acceptors GBA ST1 Operation Manual
Page 33 of 37 Astrosys International Ltd
September 2011
ST1 Operations Manual Rev 2.0
10.3 Dimensional Drawings

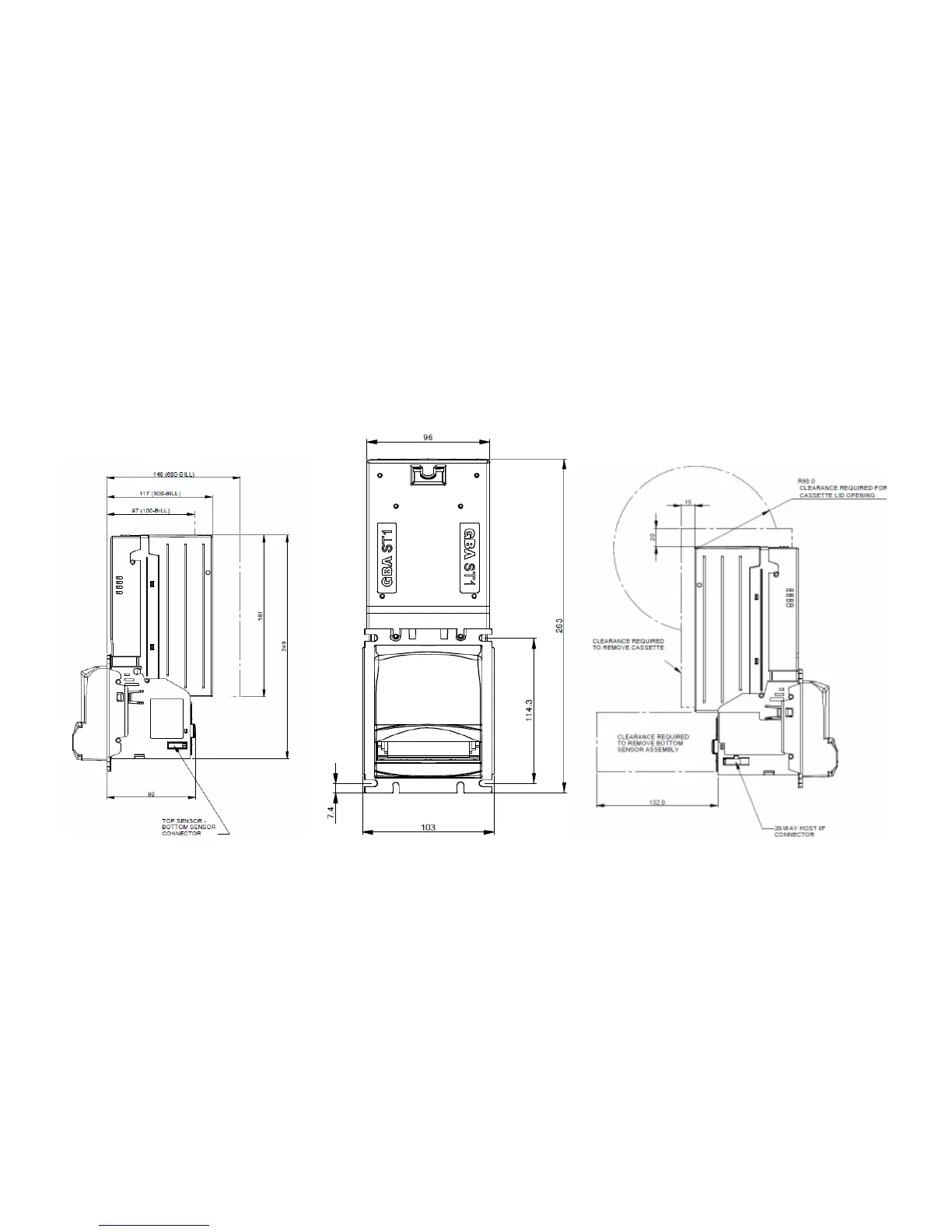

10.3.1 - Upstacker
Note: All measurements in mm
