2.3 Build Options
2.3.1 Note Cassette

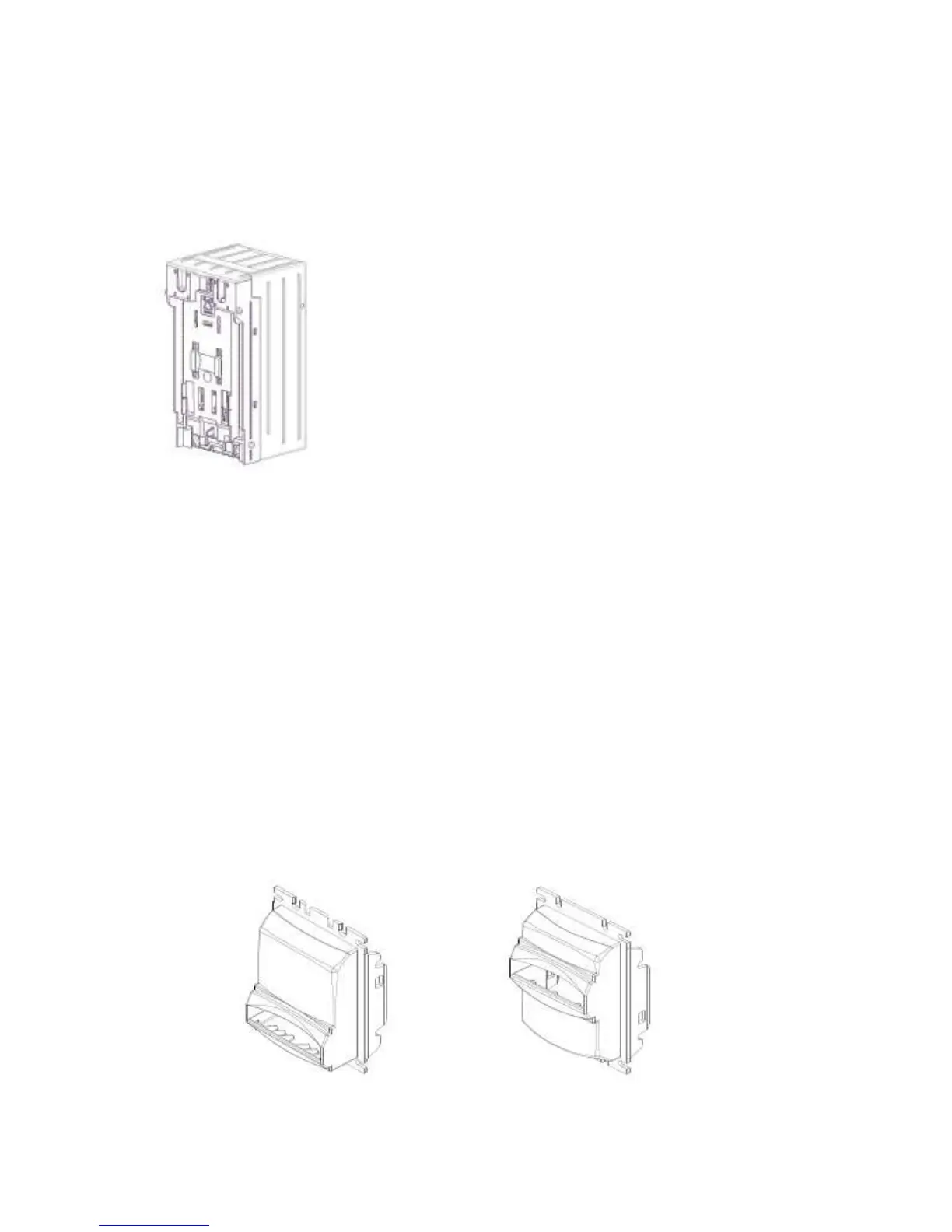

2.3.1 Image of Note Cassette
The GBA ST1 includes an integrated, note stacking facility which can be used in either an up, down
or horizontal stacking configuration. Notes are stored in a cassette for ease of collection and
transportation. The cassette can optionally be fitted with locks for increased security.
2.3.2 Note Guide
Note guides are available in two styles, flashing and blinking, in widths to suit particular
currencies. The same note guide can be used for either up or down configurations. Blinking note
guides are for use with Low Power mode. For information about the most appropriate design for
your currency please contact your local regional office.
2.3.3 Faceplate
Faceplates are available in two styles, Universal and US. Both styles of faceplate give the option to
mount the validator in a concealed fashion. Universal and US faceplates should be used with
flashing note guide, to ensure ST1 status information is provided.
All styles of faceplate are available in either up or down stacking configuration.
2.3.3 Universal Up stacker Faceplate 2.3.3 Universal Down stacker Faceplate
