GBA Global Bill Acceptors GBA ST1 Operation Manual
Page 10 of 37 Astrosys International Ltd
September 2011
ST1 Operations Manual Rev 2.0

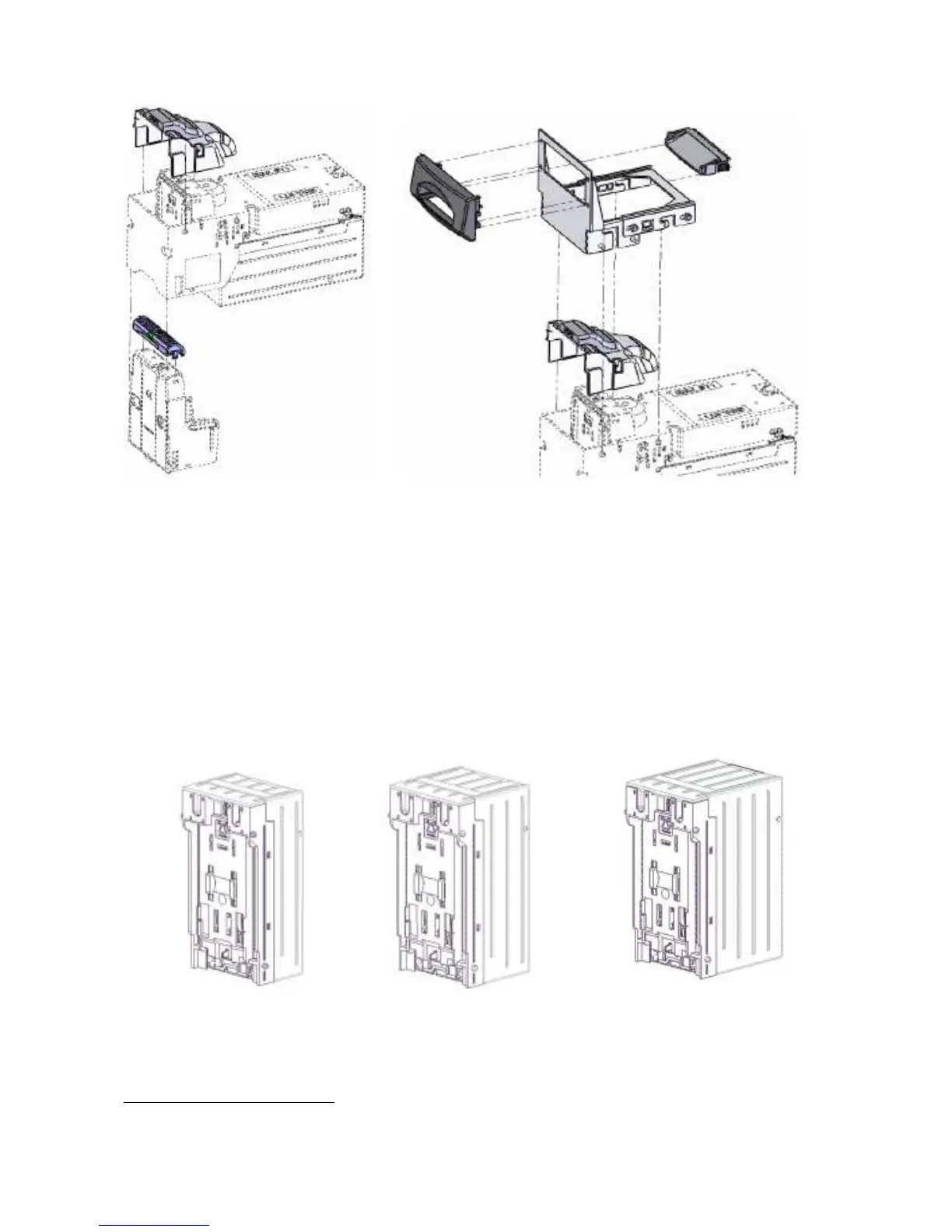

3.2.2a - Image of Top Cover and Top Plate fitting 3.2.2b – Image of Bracket fitting (shows Horizontal bezel)
3.3 Top Entry Stacker
Please refer to Product Bulletin "Fitting the GBA ST1-T bracket" for detailed information
3.4 Cassette Options
There are 4 different note cassette capacity options of 100, 300 (fitted as standard), 600 and
1000
1
. All cassettes contain the option to be locked.
3.4 Cassette 100 3.4 Cassette 300
(fitted as standard)
3.4 Cassette 600
1
V
alues given are nominal and are based on brand new notes
