GBA Global Bill Acceptors GBA ST1 Operation Manual
Page 4 of 37 Astrosys International Ltd
September 2011
ST1 Operations Manual Rev 2.0
2.0 PRODUCT INFORMATION
2.1 General Specifications
Bill Insertion: Up to 32 bill denominations with 4 way insertion
Bill Dimensions: 62 to 80mm wide; 120 to 164 mm long
Bill Acceptance Rate: Greater than 95%
Cycle Time for Validation and Stack: 3 seconds
Interface Protocols Supported: Pulse, Parallel, ccTalk
®
(plain & encrypted), bi-
direction serial (“RS232”), NAMA MDB, SSP, VCCS
Power Supply: 12Vdc +/-10% (Note: Centre positive for the DC power
jack)
Power Consumption (Validating): 700mA @ 12V
(Stacking): 800mA @ 12V
(Idle): 200mA @ 12V
Environmental Range (Operating Temp): 0° to 55°C
(Operating Hum): Up to 90% R.H., non-condensing
(Storage Temp): -10° to 65°C
2.2 Product Architecture

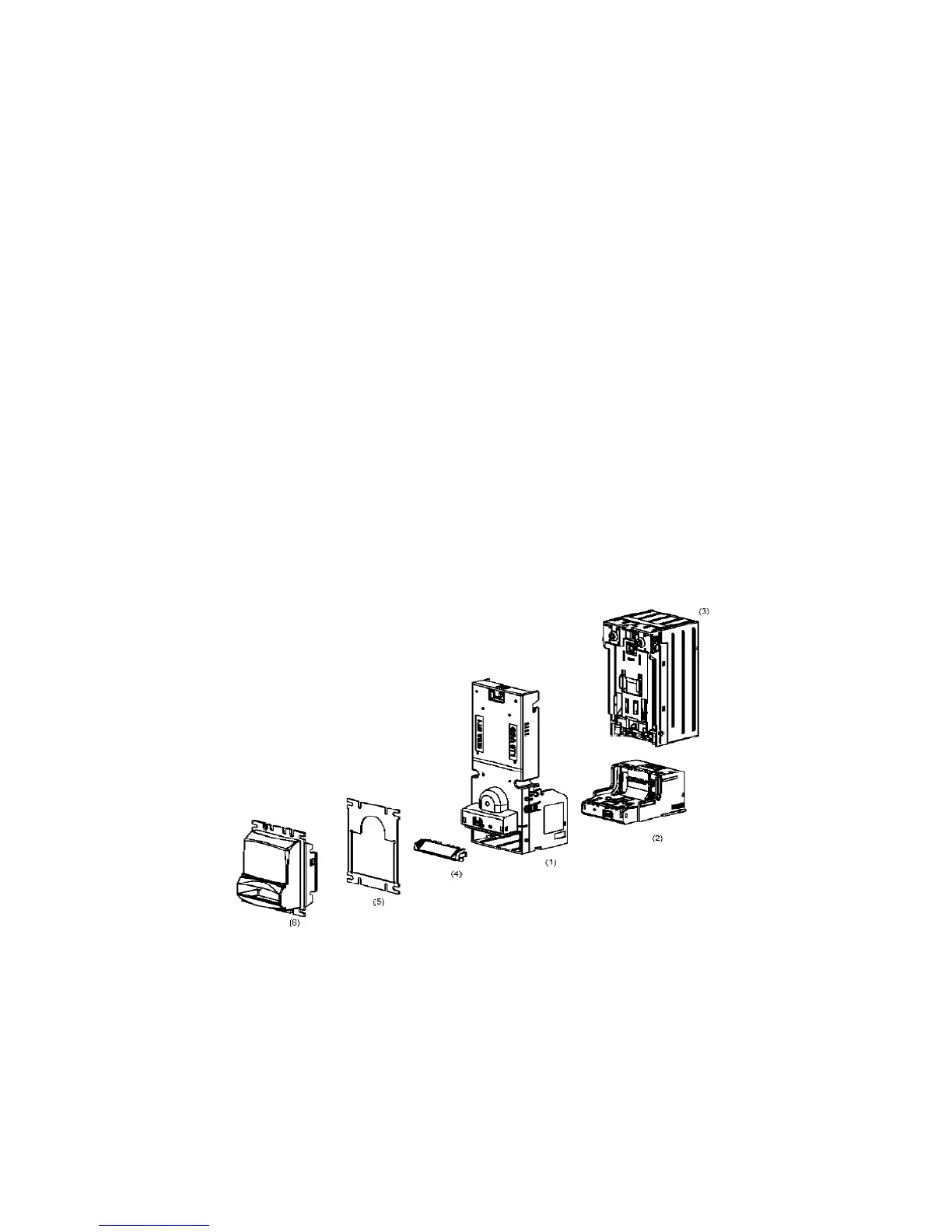

2.2 Image of product assembly
The GBA ST1 product consists of a Channel Assembly (1) which supports the Top Sensor Assembly
(not shown) and Bottom Sensor Assembly (2) which house the mechanics and the software. To
complete the unit there are 4 inter-changeable accessories. These are:
(3) Note Cassette
(4) Note Guide
(5) Blanking Plate
(6) Faceplate
