GBA Global Bill Acceptors GBA ST1 Operation Manual
Page 6 of 37 Astrosys International Ltd
September 2011
ST1 Operations Manual Rev 2.0

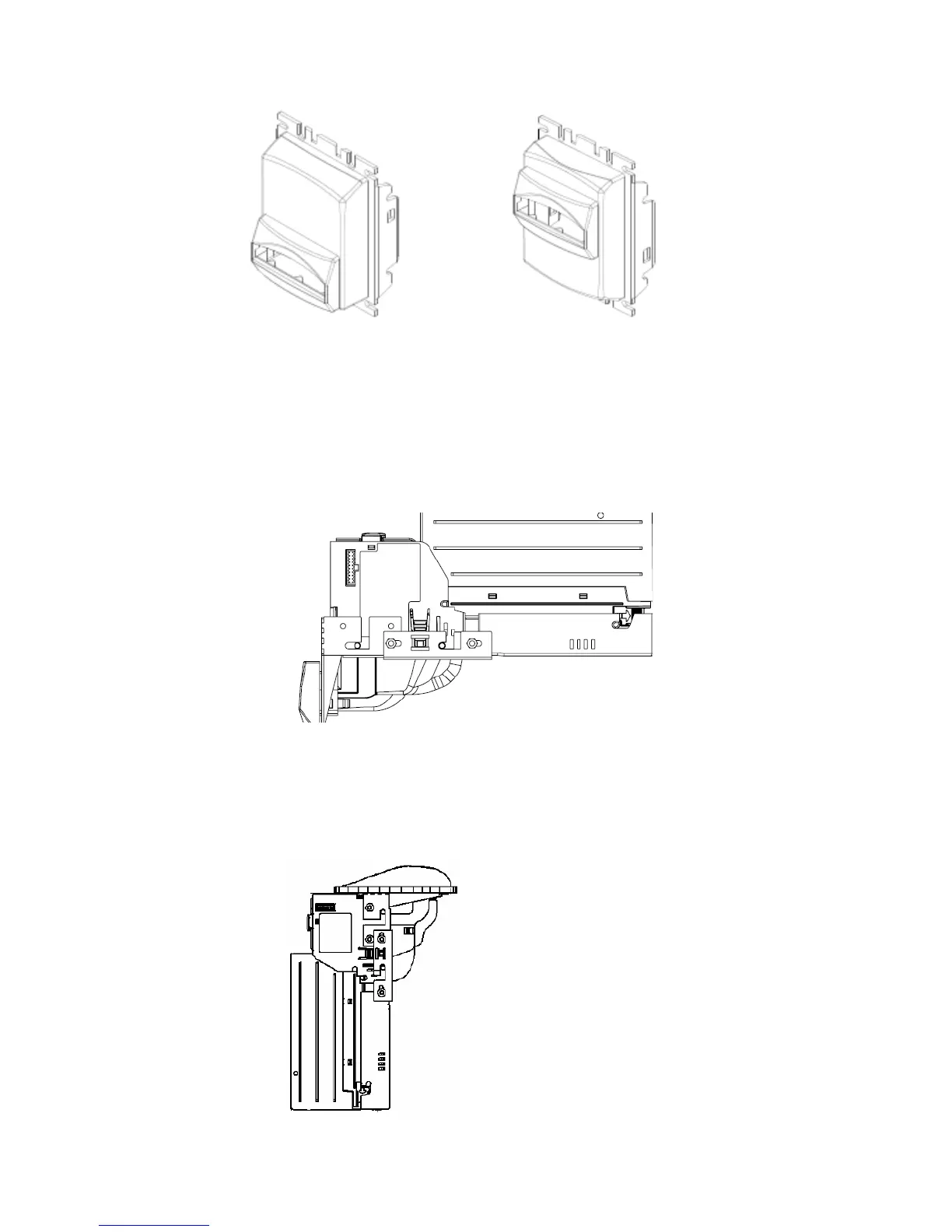

2.3.3 US Up stacker Faceplate 2.3.3 US Down stacker Faceplate
2.3.4 Horizontal Kit
To enable Horizontal configuration (ST1-H), a Horizontal Kit must be added to the unit. This
consists of a metal bracket with bezel, plastic housing and note guide. An optional drive motor is
available to assist in transportation of small or worn notes. The bracket allows the ST1-H to be
directly mounted to the cabinet door. The ST1-H can be orientated to stack up or down with the
default orientation in the Up-stack direction.
2.3.4 ST1 in Horizontal Door Mount configuration
2.3.5 Top Entry Kit
To enable Top Entry configuration (ST1-T), a Top Entry Kit must be added to the unit. This consists
of a metal bracket with bezel, plastic housing and note guide. An additional drive motor is included
within the plastic housing to assist in transportation of notes.
