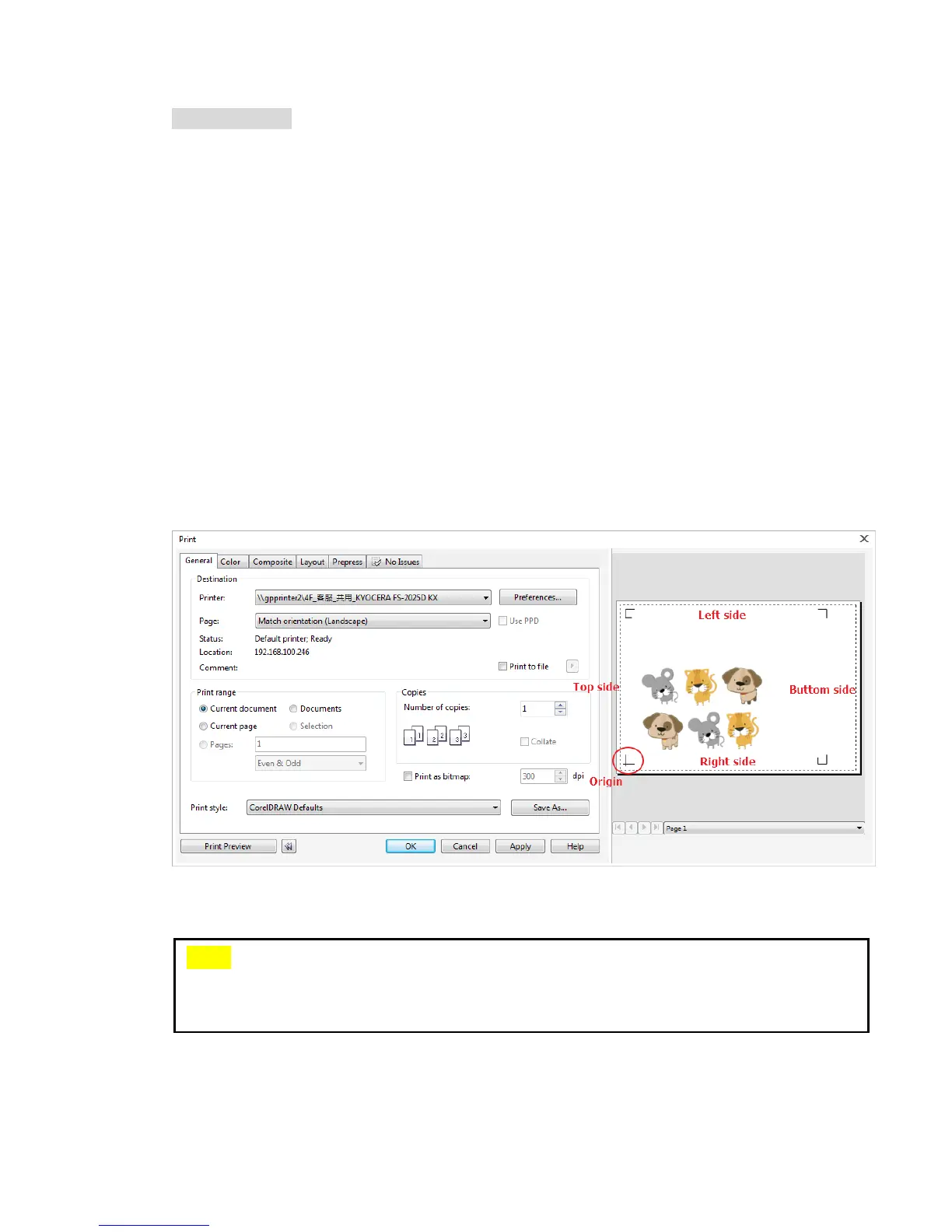

Workable area
It allows users to edit and cut graphics in the area outside the registration
marks when adding registration marks by page.
For A4 size media sheet, the workable area is 2.5mm extended from the
registration mark on left and right sides and 4.5mm extended from the
registration mark on top side. On the bottom side, it is suggested to leave at
least 25mm margin from the edge of media sheet to prevent sheets dropping
or any error occurred while media sizing.
For A3 size media sheet, the workable area is 10mm extended from the
registration mark on the left side, 9mm extended from the registration mark on
the right side and 11mm extended from the registration mark on top side. On
the bottom side, it is suggested to leave at least 25mm margin from the edge of
media sheet to prevent sheets dropping or any error occurred while media
sizing.
Note: Select “Edge” mode when media sizing to allow the media sheet to be unrolled.
If you select “Single” mode, the media sheet will not be able to be moved back and
hence fail to be detected by front paper sensor.
