5.1.4 Graphic Control Panel Function Pages
When the LaserPro C180II is powered on, the machine will perform a series of safety checks
and initializing routines. The LCD display screen will display the GCC copyright, LaserPro logo,
and machine initialization pages before going to the main work page.
Main Work Page

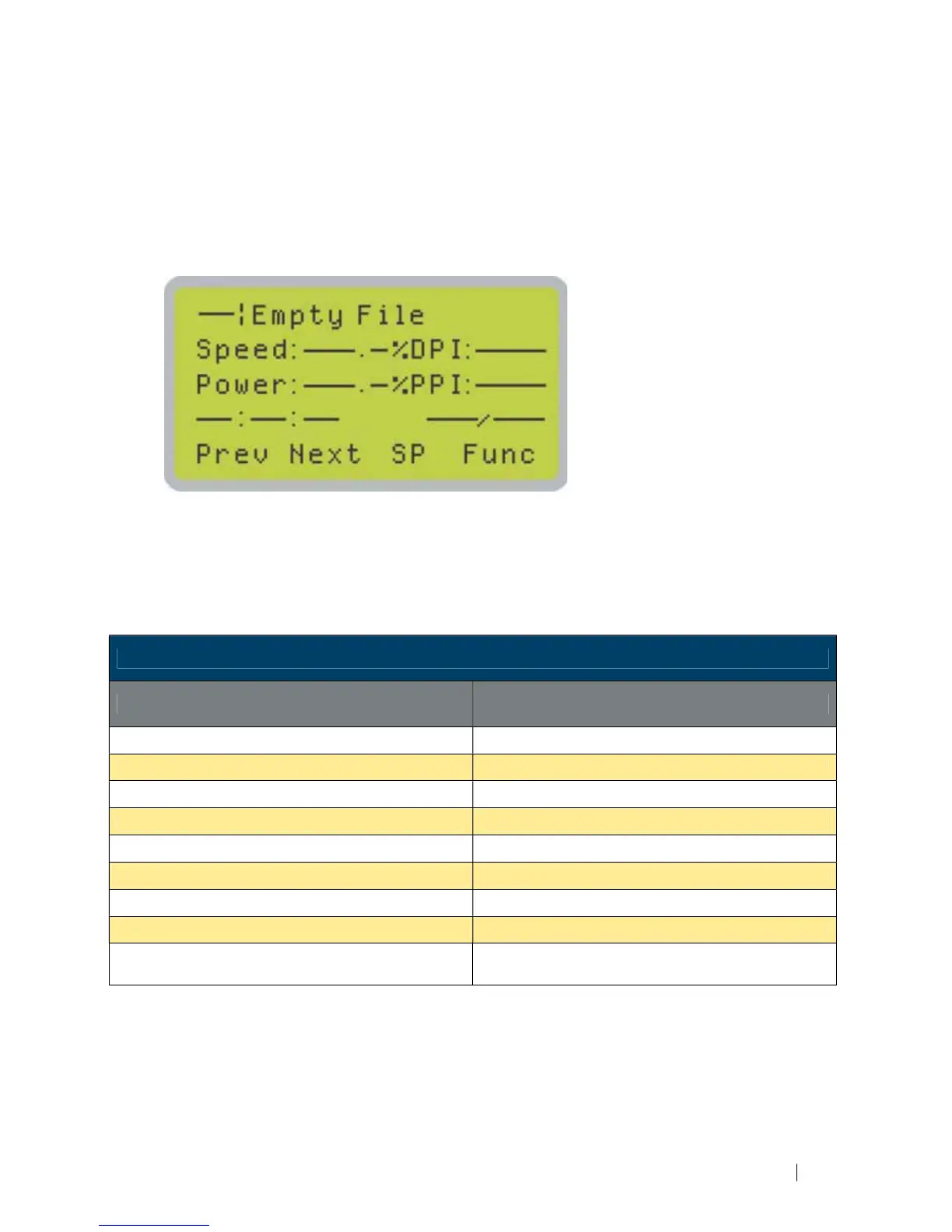

The main work page is the page that the LaserPro C180II will default to upon startup and will be the “home
base” for when navigating through the various functions of the control panel. This will be the page that
is displayed when you are processing your jobs. This page contains specific job information such as
the current job’s name, Speed, Power, PPI, DPI, processing / remaining times, and jobs loaded.
Main Work Page
Relevant Buttons Function
F1 (Prev) Scroll through previous jobs
F2 (Next) Scroll through next jobs
F3 (SP) Go to Store Position Page for SmartCENTER
F4 (Func) Go to Functions Page
U / V / Y / Z Directional Go to Carriage / Work Table Adjustment Page
Start / Stop Start / Stop the current job
Delete Delete the current selected job
Auto Focus Initiate the auto focus function
S / T Manual Focus Buttons
Manually adjust the height of the work table (Z-
axis)
To Next Page
