Adjustment Page
Carriage / Work Table Adjustment Page
Navigating to this page:
Main Work Page
PressU / V / Y / Z
or F3
Carriage / Work Table
Adjustment Page
The Carriage / Work Table Adjustment Page allow you to manually increase and decrease the
height of the work table (Z-axis). In addition, you can manually adjust the Y-axis and X-axis of
the laser
carriage.

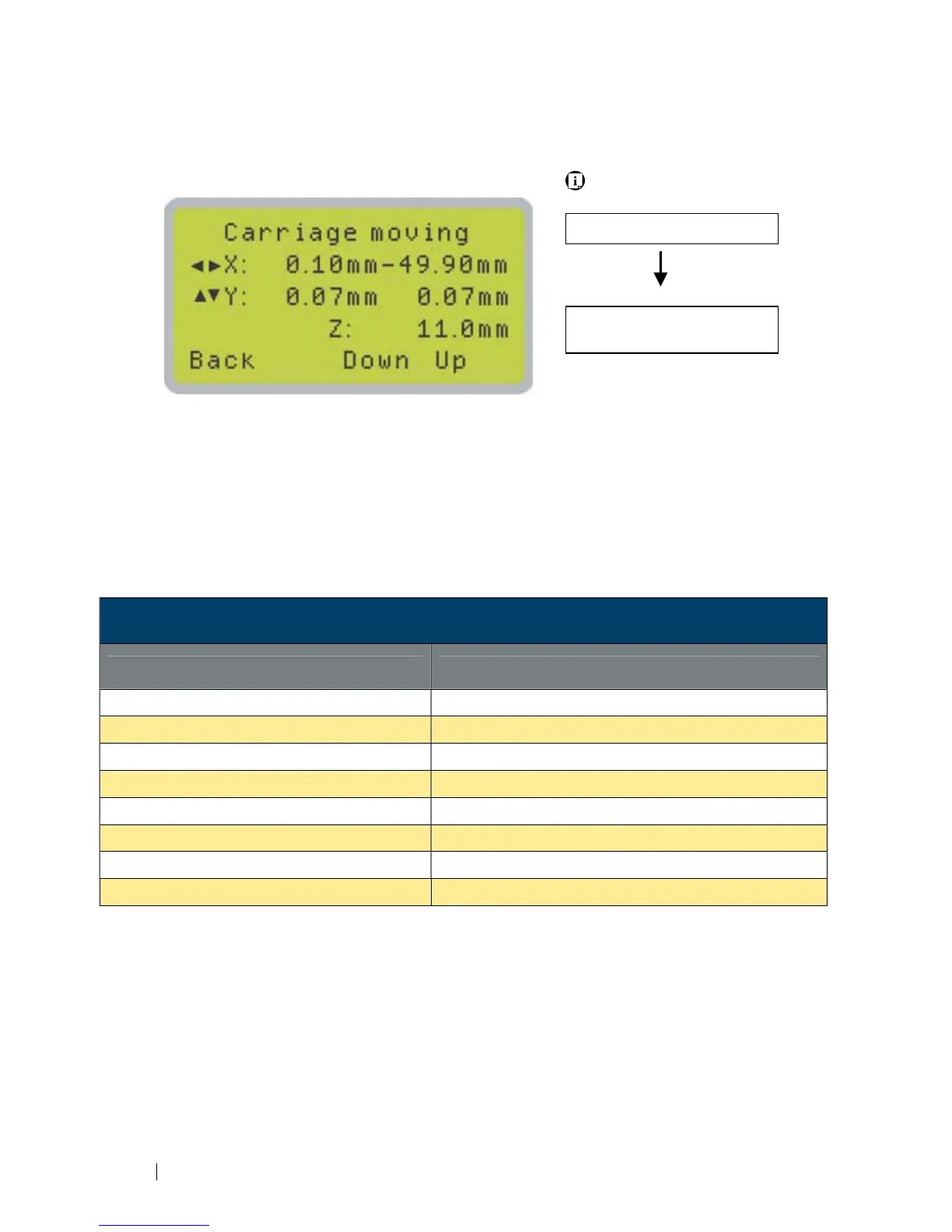

Carriage / Work Table Adjustment Page
Relevant Buttons Function
F1 (Back) Back to previous page
F3 (Down) Manually decrease the height of the work table (Z-axis)
F4 (Up) Manually increase the height of the work table (Z-axis)
U / V / Y / Z Directional Manually adjust the Y-axis position of the laser carriage
Y / Z Directional Manually adjust the X-axis position of the laser carriage
Start / Stop Start / Stop the current job
Auto Focus Initiate the auto focus function
S / T Manual Focus Buttons Manually adjust the height of the work table (Z-axis)
To Next Page
