File Edit Raster Page

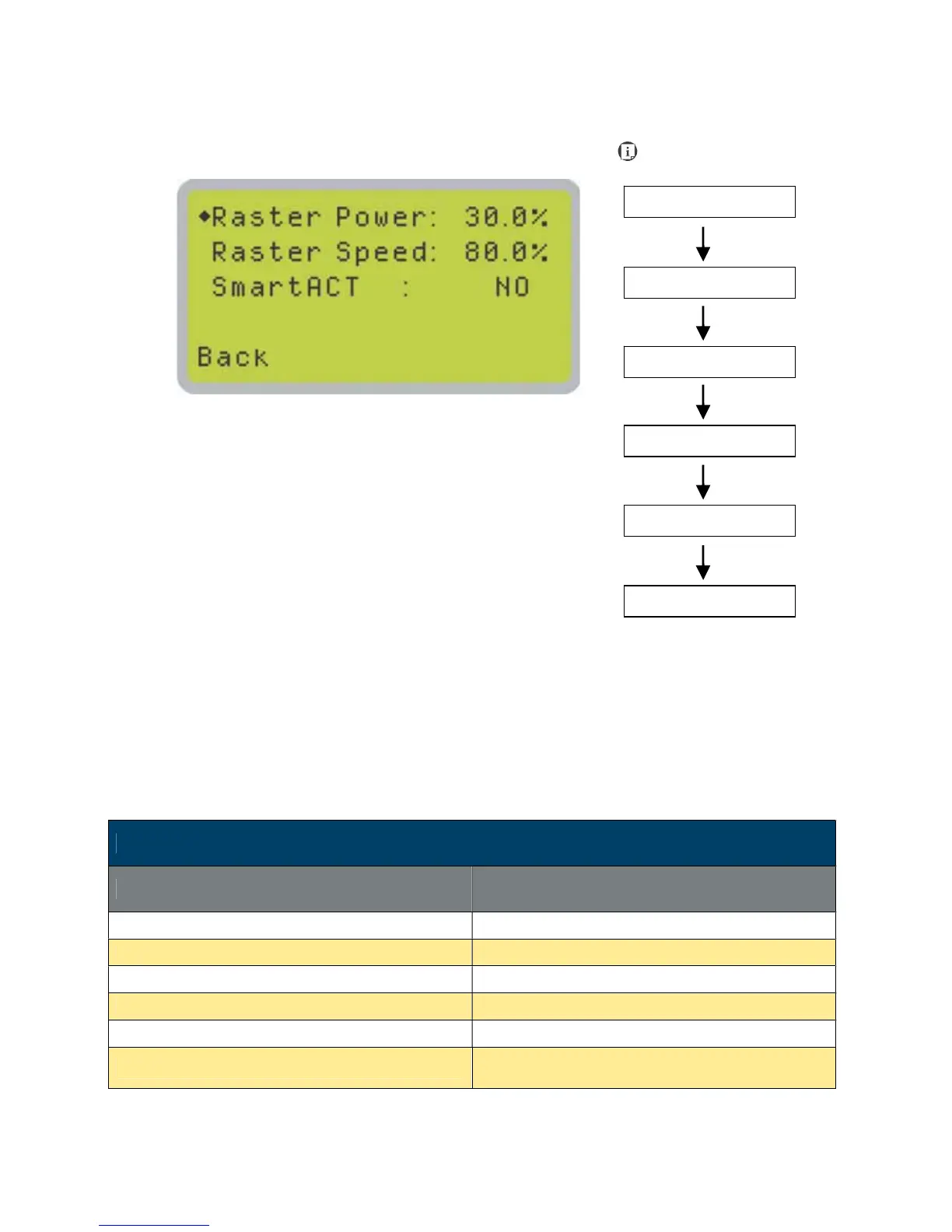

The File Edit Raster Page allows you to edit the raster power and speed settings, as well as
enable or disable SmartACT for the selected job. These settings correspond to the same settings
found on the LaserPro C180II driver. This page allows you to easily adjust these values to make
immediate adjustments while processing your loaded jobs, even when you have disconnected
your computer from the LaserPro C180II
• Raster Power: 0.0% - 100%
• Raster Speed: 0.1% - 100%
• SmartACT: YES / NO
File Edit Raster Page
Relevant Buttons Function
F1 (Back) Back to previous page
U / V Directional Scroll through your loaded jobs
Y / Z Directional Cycle through the available selections
Start / Stop Back to Main Work Page
Auto Focus Initiate the auto focus function
S / T Manual Focus Buttons
Manually adjust the height of the work table (Z-
axis)
Main Work Page
Functions Page
Navigating to this page:
press F4
File Management Page
Select<File Manage-
ment>from the menu
File Information Page
Select a job file and
pres
s
E
n
t
e
r
press F4
File Information Page
Select<Ra
s t
e
r
Se
tt i ng
>
from the menu
File Edit Raster Page
