CHAPTER 2: INSTALLATION MECHANICAL INSTALLATION
345 TRANSFORMER PROTECTION SYSTEM – INSTRUCTION MANUAL 2–5

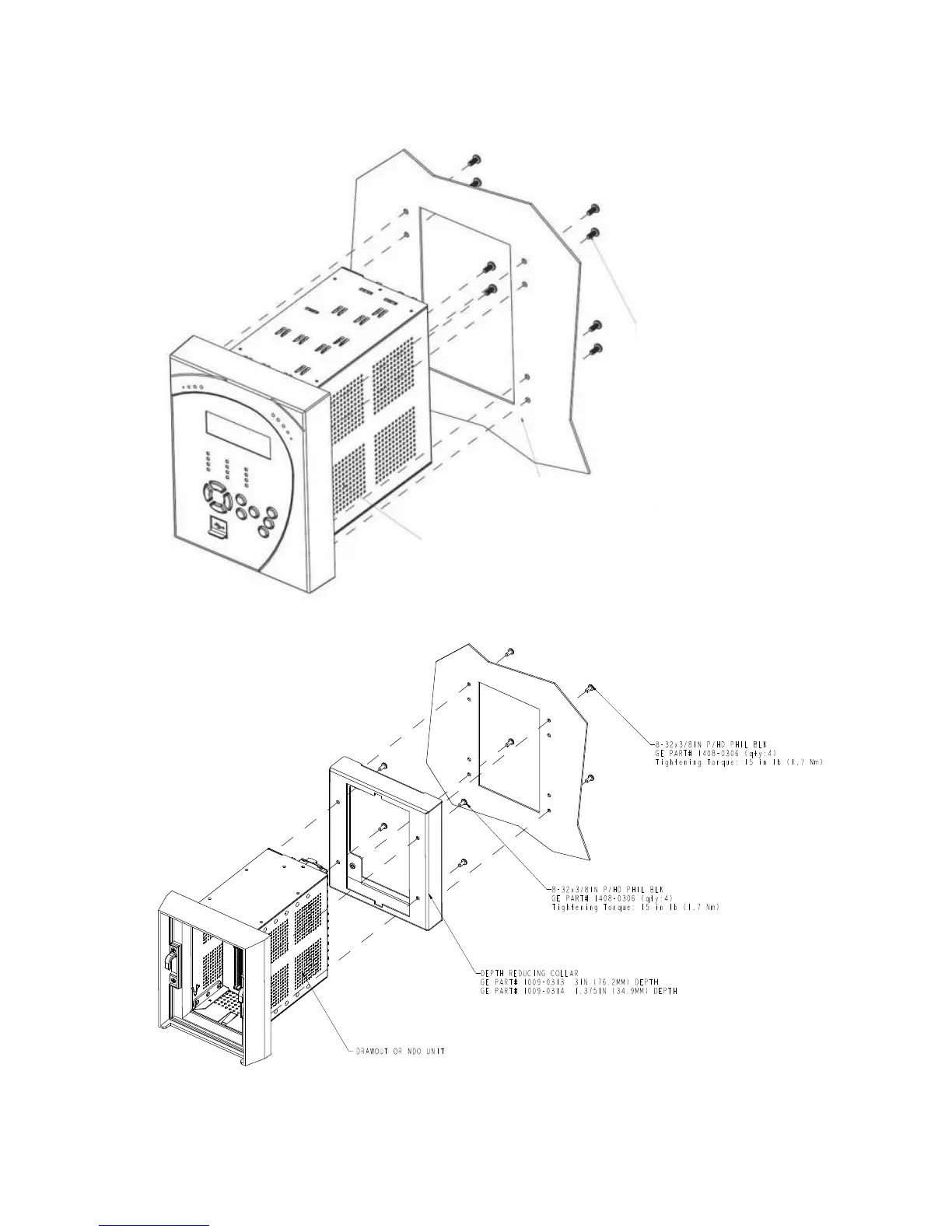

Figure 2-5: Standard Panel mounting - Non-drawout
Figure 2-6: Depth Reducing collar (optional)
8-32 x 3/8" P/HD PHIL BLK
GE P/N 1408-0306 (QTY:8)
Tightening Torque: 15 in-lb (1.7 Nm)
Panel with Cutout
NDO unit
