2–14 345 TRANSFORMER PROTECTION SYSTEM – INSTRUCTION MANUAL
ELECTRICAL INSTALLATION CHAPTER 2: INSTALLATION
345 Terminal identification
NOTE:

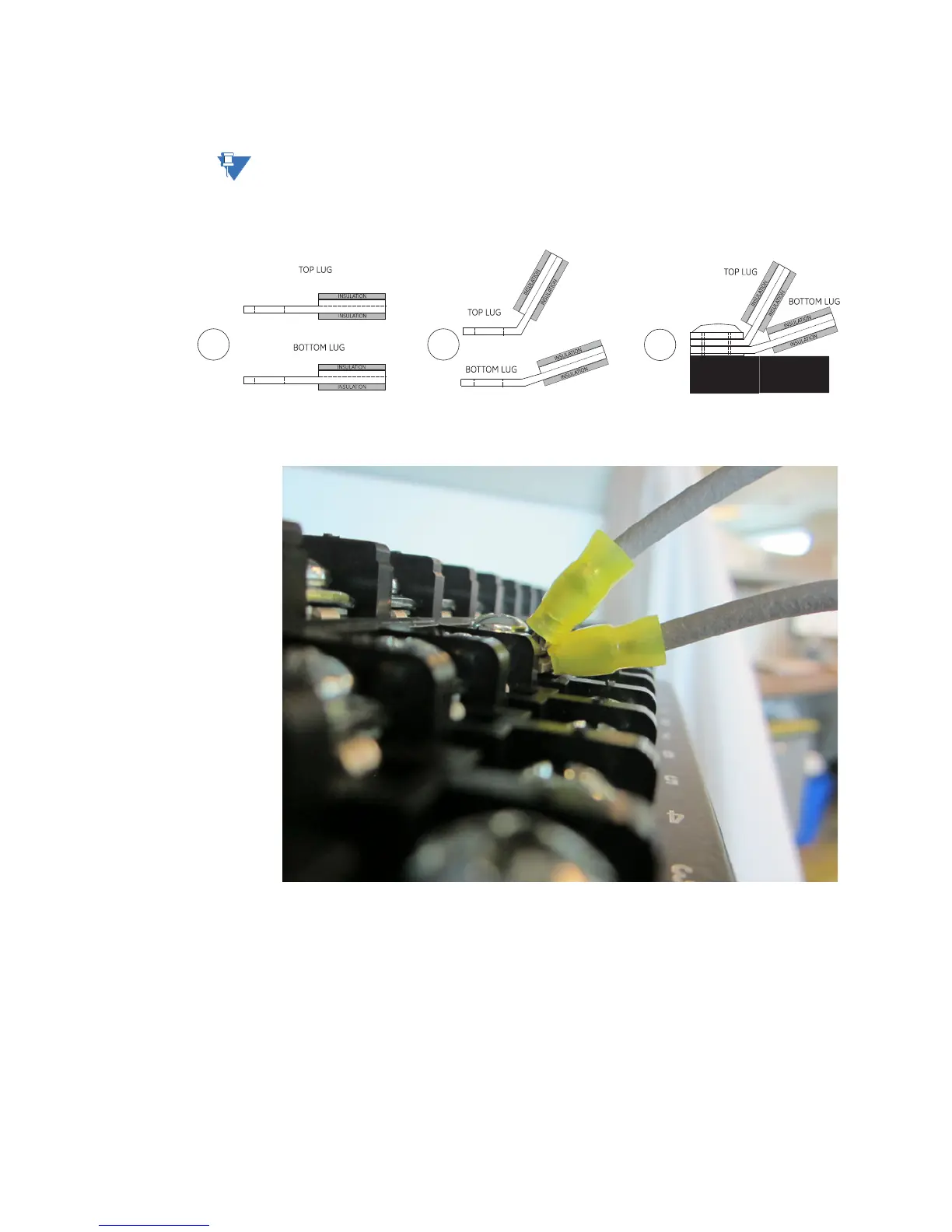

When installing two lugs on one terminal, both lugs should be "right side up" as shown in
the picture below. This is to ensure the adjacent lower terminal block does not interfere
with the lug body.
Figure 2-16: Orient the lugs correctly...
Figure 2-17: CORRECT INSTALLATION METHOD
SCREW
WASHER
LOWER
TERMINAL
DIVIDER
TERMINAL
BLOCK
1
2
3
