GE 745 - Chapter 4: Interfaces; 4.1 Hardware Interface; 4.1.1 Front Panel

745 TRANSFORMER PROTECTION SYSTEM – INSTRUCTION MANUAL 4–1
745 Transformer Protection
System
Chapter 4: Interfaces
GE
Grid Solutions
Inter faces
4.1 Hardware Interface
4.1.1 Front Panel
The front panel provides a local operator interface with a 40-character liquid crystal
display, LED status indicators, control keys, and program port. The display and status
indicators update alarm and status information automatically. The control keys are used
to select the appropriate message for entering setpoints or displaying measured values.
The RS232 program port is also provided for connection with a computer running the
EnerVista 745 Setup software.

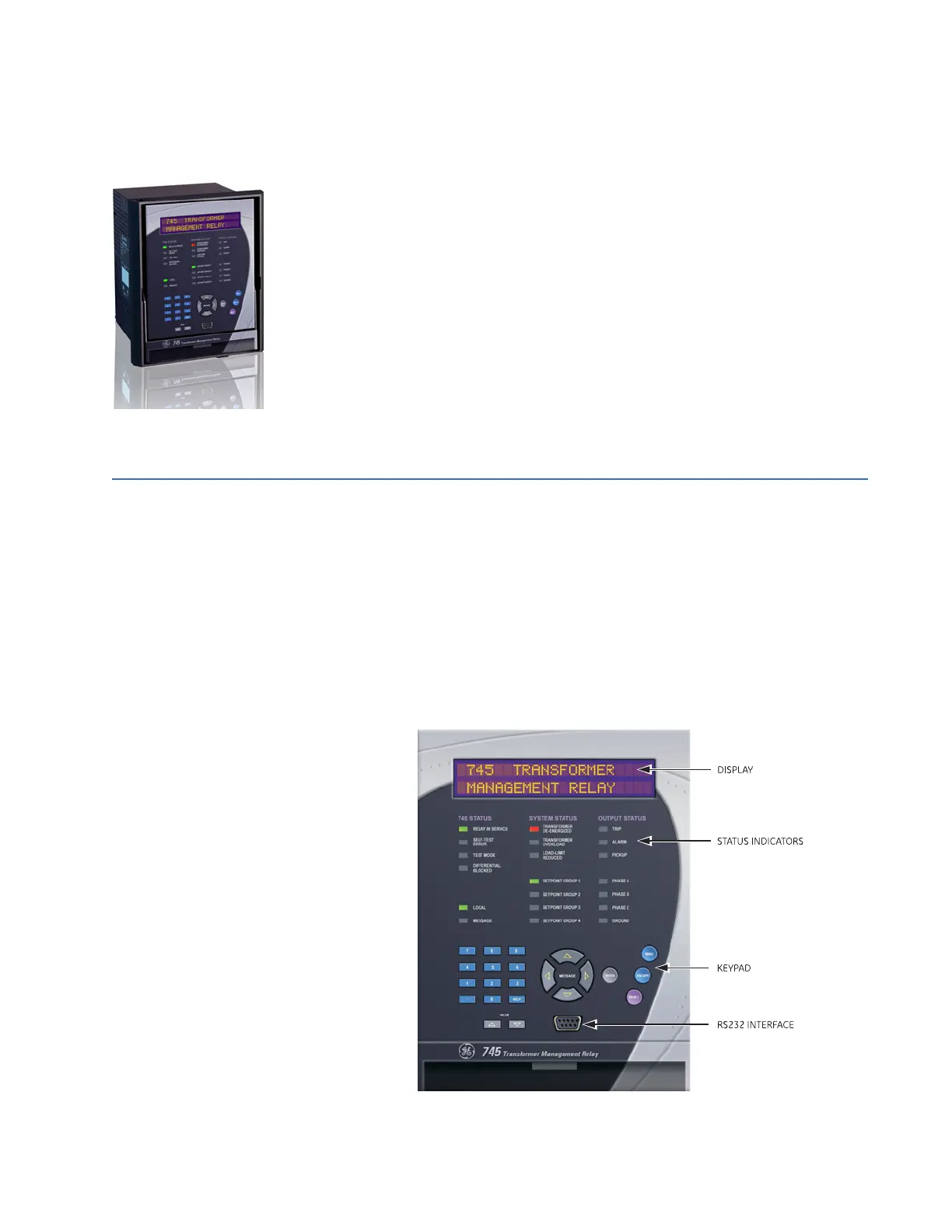

FIGURE 4–1: 745 front panel view
