GE Multilin C30 Controller System 5-127
5 SETTINGS 5.6 CONTROL ELEMENTS
5

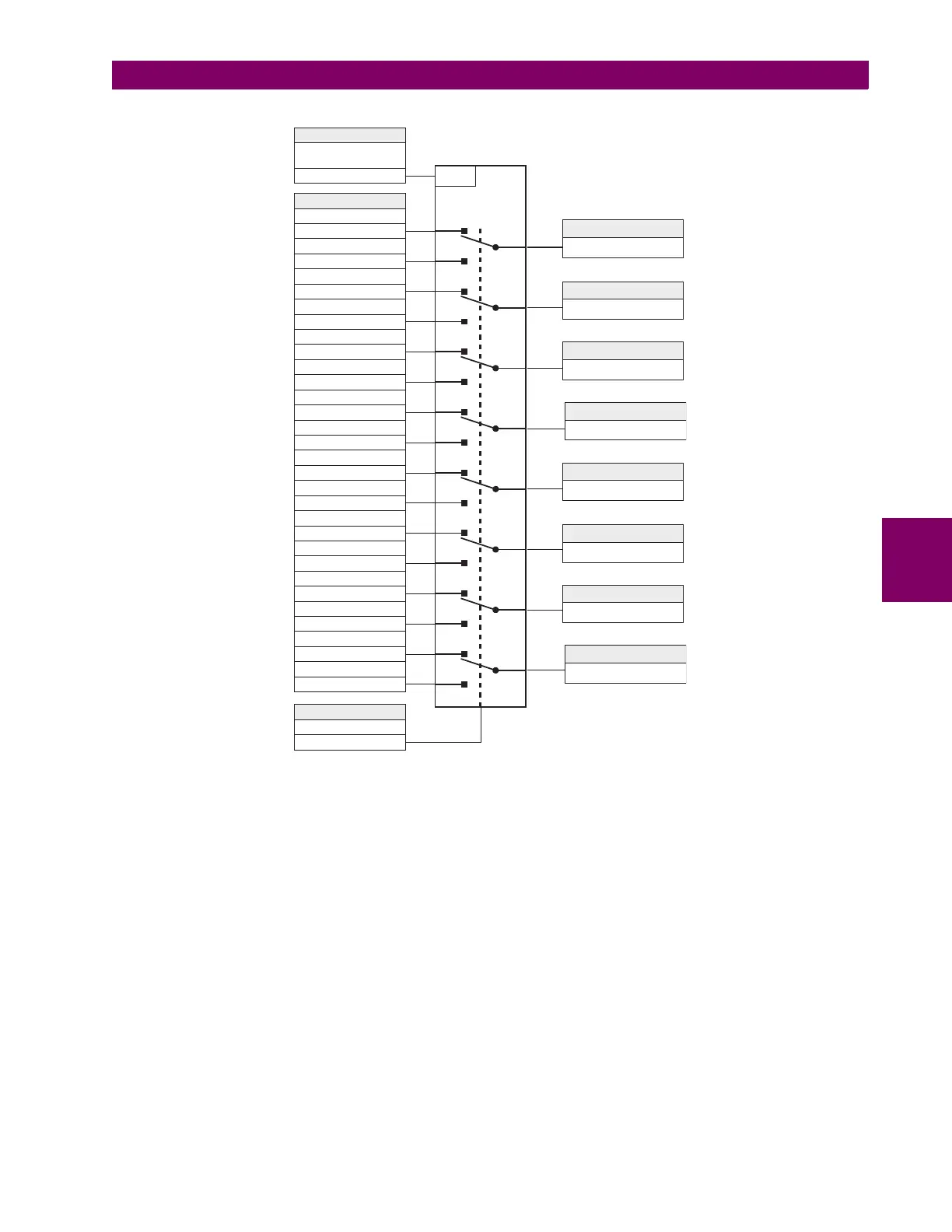

Figure 5–47: 8-BIT SWITCH LOGIC
842017A1.CDR
SETTINGS
8BIT SW 1 ARG A0:
Off=0
8BIT SW 1 ARG B0:
Off=0
FLEXLOGIC OPERAND
8BIT SWITCH 1 BIT 0
8BIT SW 1 ARG A1:
Off=0
8BIT SW 1 ARG B1:
Off=0
8BIT SW 1 ARG A2:
Off=0
8BIT SW 1 ARG B2:
Off=0
8BIT SW 1 ARG A3:
Off=0
8BIT SW 1 ARG B3:
Off=0
8BIT SW 1 ARG A4:
Off=0
8BIT SW 1 ARG B4:
Off=0
8BIT SW 1 ARG A5:
Off=0
8BIT SW 1 ARG B5:
Off=0
8BIT SW 1 ARG A6:
Off=0
8BIT SW 1 ARG B6:
Off=0
8BIT SW 1 ARG A7:
Off=0
8BIT SW 1 ARG B7:
Off=0
FLEXLOGIC OPERAND
8BIT SWITCH 1 BIT 1
FLEXLOGIC OPERAND
8BIT SWITCH 1 BIT 2
FLEXLOGIC OPERAND
8BIT SWITCH 1 BIT 3
FLEXLOGIC OPERAND
8BIT SWITCH 1 BIT 4
FLEXLOGIC OPERAND
8BIT SWITCH 1 BIT 5
FLEXLOGIC OPERAND
8BIT SWITCH 1 BIT 6
FLEXLOGIC OPERAND
8BIT SWITCH 1 BIT 7
SETTING
8BIT SW 1 CONTROL:
Off=0
Off
On
RUN
SETTING
8BIT SWITCH 1
FUNCTION:
Enabled = 1
