Chapter 4. Measuring Thickness
DM5E Operating Manual 41
4.4 Differential/Rate-of-Reduction Measurement View Mode
This view mode (see Figure 16 below) displays both the currently measured thickness and a nominal thickness input by the user, along with
the difference between these two values (“measured” minus “nominal”) expressed in percentage and dimensional terms.
Note: The displayed differences can have either positive or negative values.

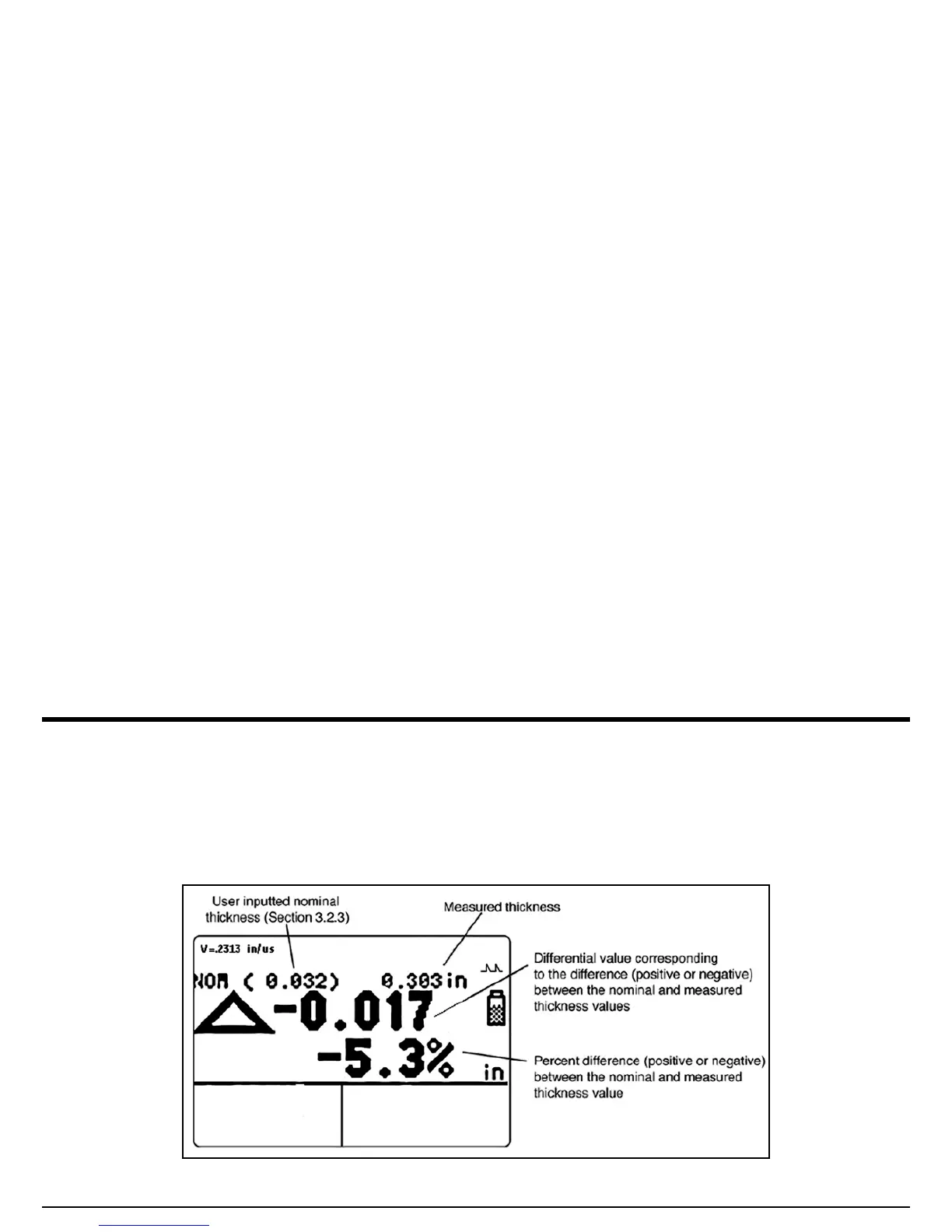

Figure 16: DIFF/RR% Measurement View Mode
