To select a limit set (User)

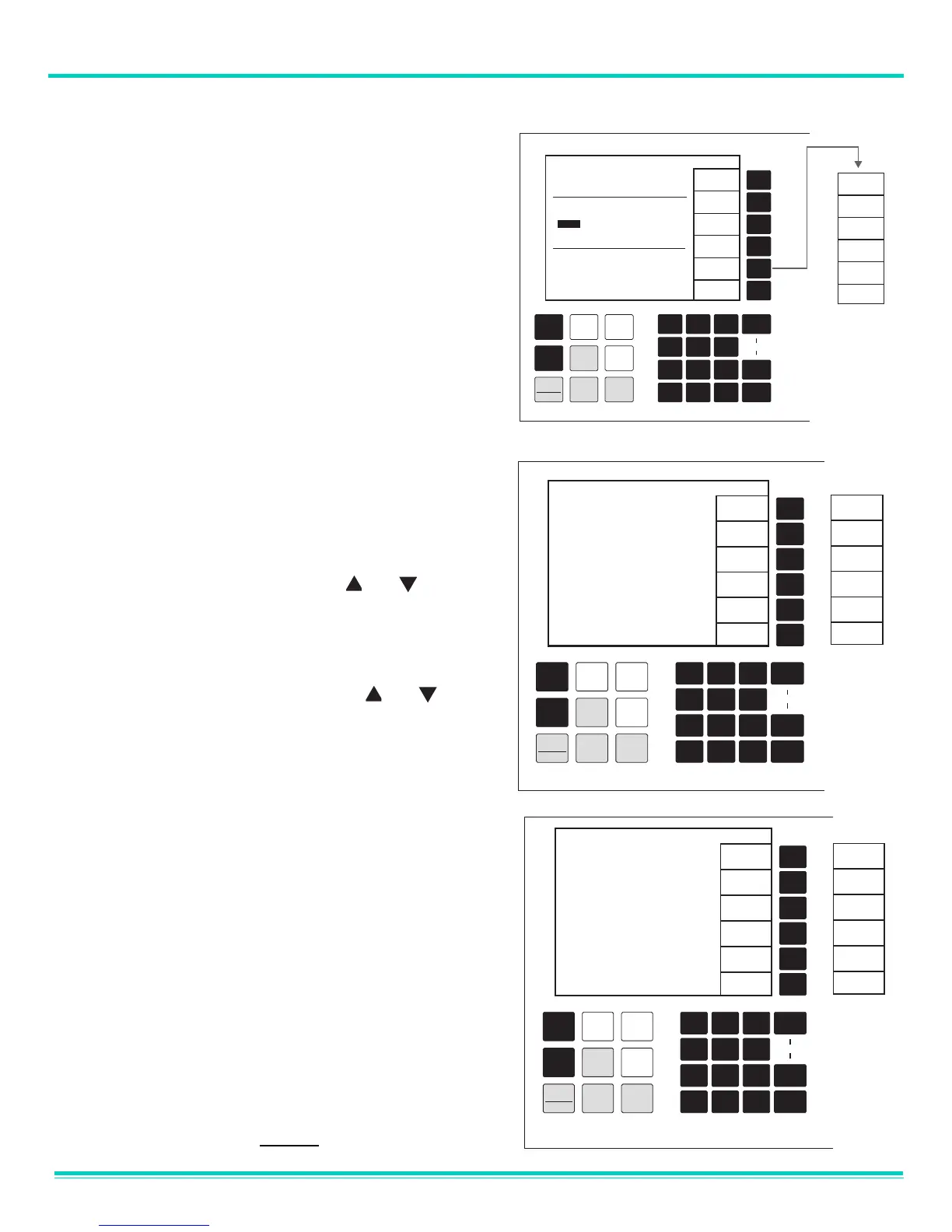

Press SETUP, the display shows Setup, [Limits]
[xxxxxx], where xxxxxx is the current name of
the selected limit set. Select [Limits] [xxxx] F3.
The display highlights the current set of limits
in use by the name in the list. The current limit
values can be inspected by pressing [View
Details] F4. The display shows the current
limit values and divides these values into
aeronautical (Page #1) and pressure (Page
#2).
The ARINC 565 limit can be selected ON or
OFF in a set of user defined limits, When
selected, the values entered and/or achieved
in control mode are checked within the
operating envelope of the ARINC 565 limits,
see section 6.
To select another set of limits from the list
press [Select Limits], F5. Use [ ] or [ ] to
move through the list.
To edit a limit set (Supervisor)
To edit or make a new set of limits press [Enter
PIN], F3 and enter the PIN. Use [ ] or [ ] to
move through the list. Each set of limits is
identified by it's name. New sets of limits can
be created and existing sets of limits can be
renamed or values changed. Refer to section
6 for more details. The user-named sets, can
be edited by pressing [Select Limit [xxxxxx],
then Modify Details or Modify Name.
Select [Save Settings] to store the new details
or name to be used on the next power-up of
the system.
Notes:
1 For temporary changes press QUIT/CLEAR
in place of [Save Settings].
2 The factory-defined limit sets, “STANDARD“,
"MAX" and "CIVIL" cannot
be changed.
