Druck ADTS 505 User Manual 4 - 5
K0260 Issue No. 8
4
Fuse Replacement (Fig 4-1)
Replace the fuse when detailed in Section 5, Testing and Fault Finding:
•Set the power switch to OFF.
Note: The power switch is not a power isolator as defined by EN61010.
• Isolate the power supply to the instrument by disconnecting the power supply
connector (1).
• Unscrew and remove the fuse cap (2) and fuse cartridge (3) from the front panel and
replace the fuse cartridge (3).
Note: Fit the correct type of fuse detailed in Section 2, Installation and on the front panel.
• Refit the fuse cap (2) and fuse cartridge (3) to the front panel.
• Reconnect power supply connector (1).
• Switch on the power supply. The instrument should now be operational.
• If a fuse blows immediately on switch-on, contact the manufacturer or Service Agent.

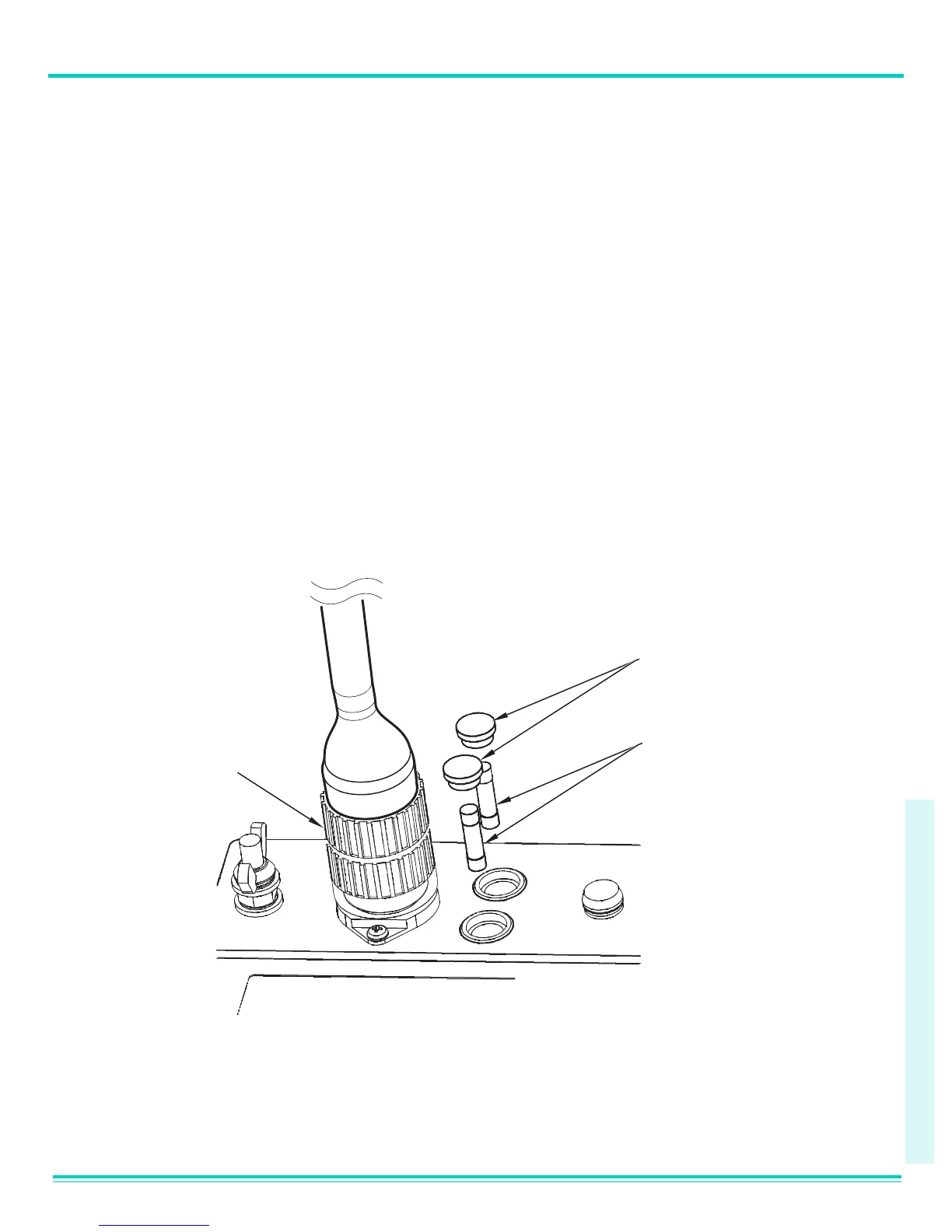

F
IGURE 4-1 FUSE REPLACEMENT
