4.3 Electrical diagrams.
4.3.1 Wiring coding system.
The main circuits are not shown in the wiring diagrams
due to clarity. The control circuit is presented as a typical
circuit diagram and is a combination of numbered basic
diagrams for drives, trips and indicators.
Using the key numbers of the basic plan, you can derive
the number of the complete diagram.
Key position:
1 /
2 3 4 5 6 7 8
Breaker type
Aux. voltage supply
ED tripping device
Closing drive
Aux. tripping device
Indicators
Aux. switches
SEL system
EXAMPLE:
Key number:
36 /
1 2 20
10
01 2 S
Gerapid
With voltage converter
With ED coil and NEKO
With closing drive
Wtih shunt trip
With OCT indicator
With 5 aux. switches
With SEL system

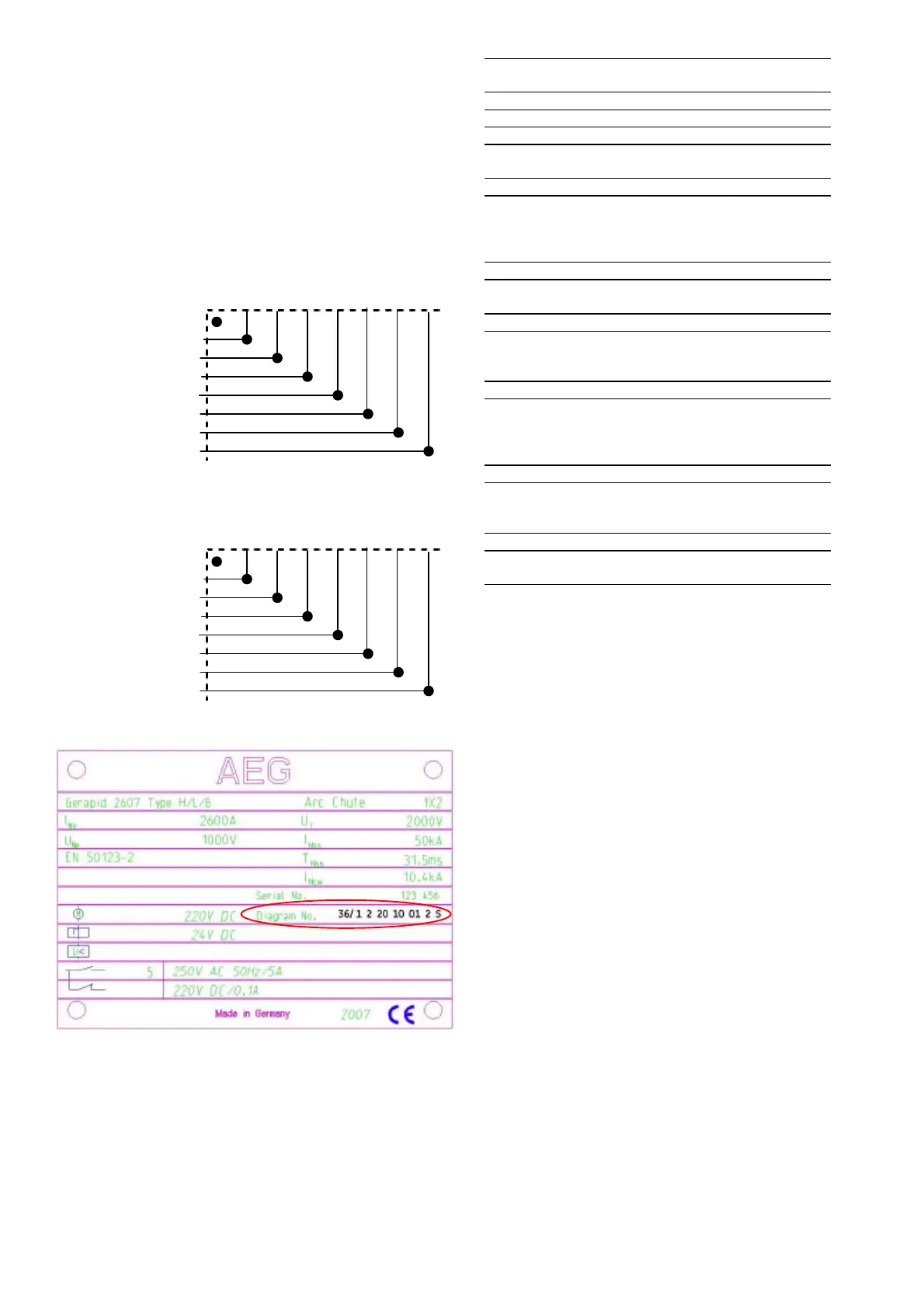

Fig. 22 Example of wiring code for AEG type labels.
Key
position
Key
number
Designation
Type
1 36 Gerapid
Auxiliary voltage
2 1 Voltage converter
2 DC 24V external supply
Tripping coil
3 0 Without ed-trip coil
1 With ed-trip coil
2 With ed-trip coil and NEKO
control unit
Drive
4 20 Solenoid drive with
SU control unit
Tripping device
5 00 Without trip unit
10 With shunt trip
20 With zero voltage release
Indication device
6 00 Without indicators
01 OCT indicator
02 Arc chute indicator
03 OCT + arc chute indicator
Auxiliary contacts
7 1 3 auxiliary switches
2 5 auxiliary switches
3 10 auxiliary switches
Current-measurement system
8 S with SEL
Indication of components
Q1 Circuit breaker
S1 Push button „CLOSE“
S2 Push button „OPEN“"
SU control unit:
K1 Closing relay
K2 Internal emergency STOP relay
1)
Shunt trip, zero voltage release:
K1 Internal emergency STOP relay
1)
HS11 Auxiliary contact
ED-tripping device with internal NEKO unit:
K1 Voltage monitoring relay
1) These relays are part of internal emergency STOP circuit. It
is a 24VDC closed circuit, through all the control units in the
box. Serial connection of all emergency relays is realized
through connections ( :5/:6) in every PCB’s terminal. In case
of control voltage lost or unit’s damage, circuit is locking
possibility to switch ON the breaker.
