4.3.10 SEL measuring system
1)
max. 500 Ω
2)
max. 500 Ω
3)
min. 300 kΩ

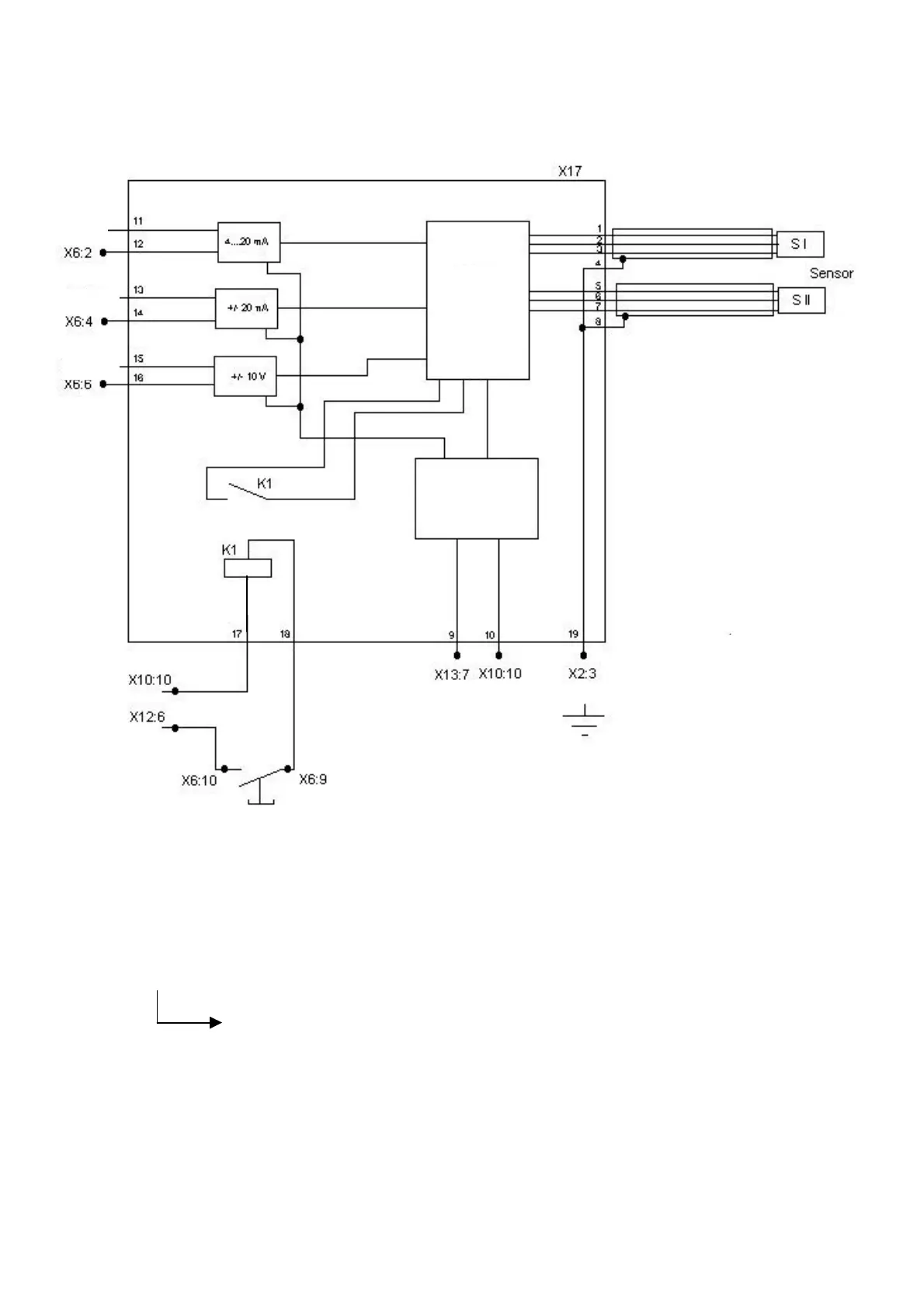

Fig. 31 SEL current measurement system
DC 24V
Self check co
n
trol
DC 24V
1)
2)
3)
Signal
Processing
Unit
Voltage
stabilizer
Key position - 8
Key number – S: With SEL measurment system.
36/ _ _ _ _ _ _ X
