GE Gerapid 2607 - Outlined Dimensions; Gerapid 2607,4207, 6007 with Arc Chute 1 X

S47183-e 01/2008 Design and specifications are subject to change without notice 28
5.2 Outlined dimensions
5.2.1 Gerapid 2607,4207, 6007 with arc chute 1x_
Pay attention to legend, warnings and safety distances pages 26/27!

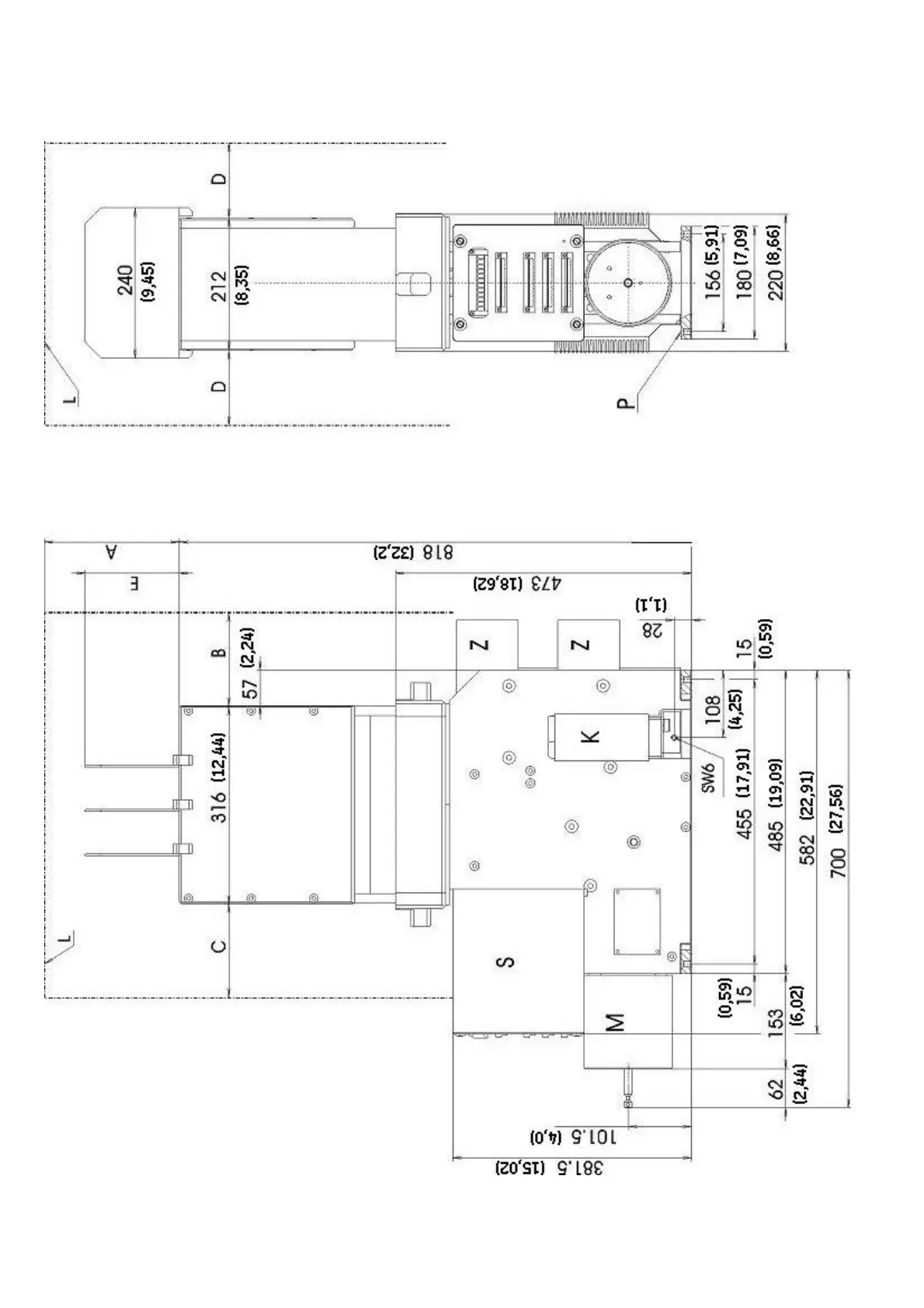

Fig. 32 Gerapid 2607- 6007, arc chute 1X (dimensions in mm and inches)
