48 Design and specifications are subject to change without notice S47183-e 01/2008
7. Customer support.
7.1 PST coding system.
The PST coding system is a new way
to configure Gerapid according to customer needs. It
has been released in 2008 and it’s not related with
any previous ordering forms.
This code consists of 20 digits. Every digit means cer-
tain rated value or component that might be installed
in the breaker.
Table 7 shows all available values, components and
accessories for the Gerapid breaker family. Most of
them are describe in section 3 of this manual. Please
contact GE Sales representative in case of any ques-
tions.
This system is valid for Gerapid line feeder type (F),
rectifier type (R) and disconnector type (DS). However
this instruction relates only to standard, line feeder
type.
Not all of the configurations are possible to order. Us-
ing the electronic version of the Ordering Form, avoid
a wrong configuration selection.
This Excel ® based tool enable in fast and mistake
proof manner to generate PST code and Ordering
Form. Ask your GE Representative details. The number
of this tool is: APN460437.

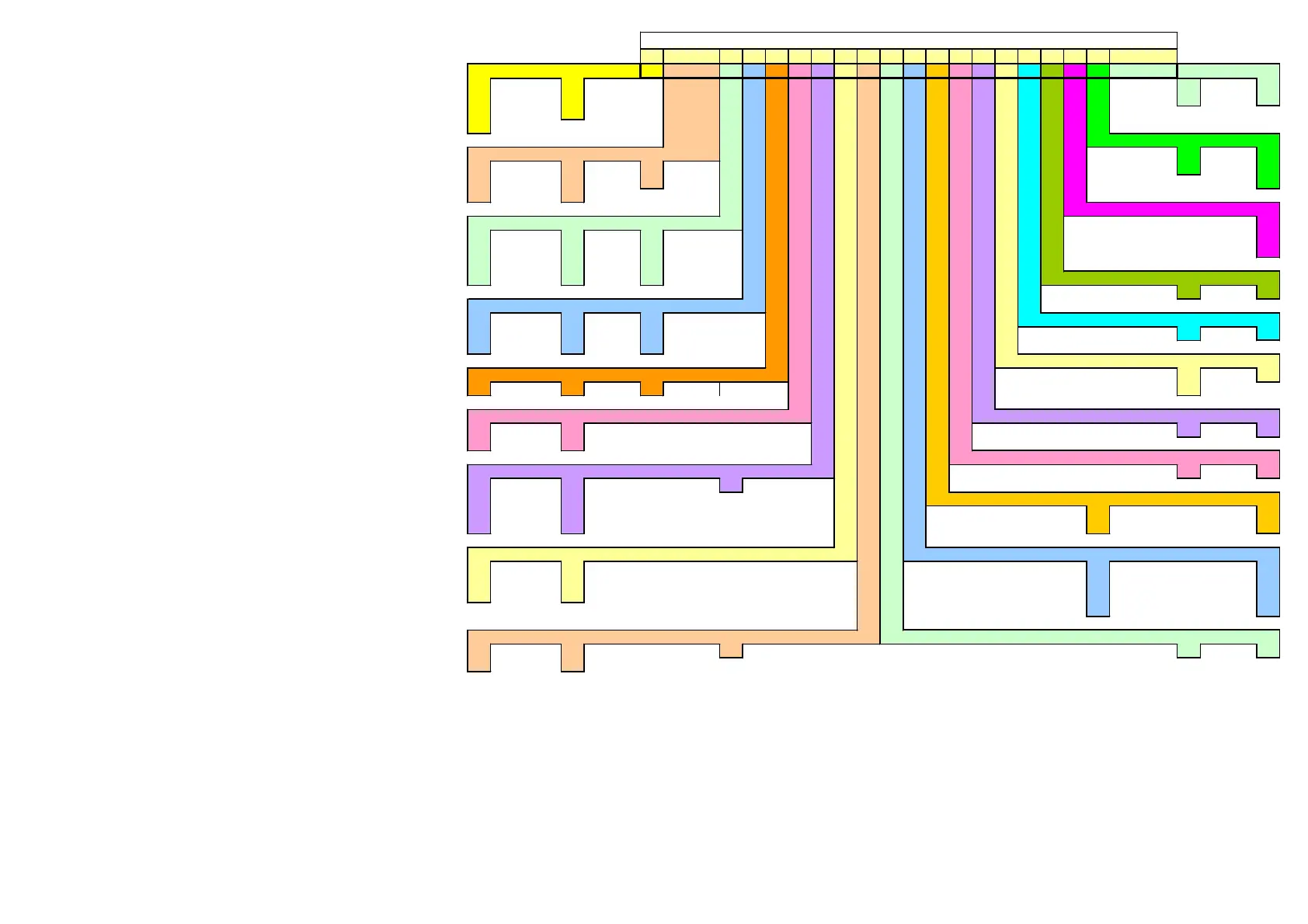

Table 7.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Breaker Type (Code 1) Delivery Version (Code 20)
1 2607 5 8007R China 3 Standard 1
2 4207 6 10007R On Request R US 2
3 6007 7 8007DS
4 8007
Control Terminal Type (Code 19)
Arc Chute (Code 2) 32pole Harting 3 Standard 1
1 1X2 (1000V) 4 2X2 (2000V) S 2X2S (2000V) 108 pole Harting 4
DAD Connector
2
2 1X3 (1500V) 5 2X3 (3000V) E On Request R
3 1X4 (2000V) 6 2X4 (3600V)
Counter (code 18)
Drive Supply Voltage (Code 3) Without 0
1 48 V DC 5 220 V DC 9 125 V AC With Mechanical Counter 1
2 60 V DC 6 250 V DC A 230 V AC With Electronic Counter & Battery 2
3 110 V DC 7 110 V AC B 240 V AC
4 125 V DC 8 120 V AC R On Request Arc Chute Indicator (Code17)
With 1 Without 0
Connectors (Code 4)
1 H/H 4 V/V B BBRail Hand Lever (Code 16)
2 H/V 5 SEL 6kA S Siemens With 1 Without 0
3 V/H 6 SEL 12kA R On Request
Sidewall Protection (Code 15)
Polarization (Code 5) With 1 Without 0
1 '+' 2 '-' 0 Not important AP Cover 2
SEL Type (Code 6) Position Indicator (Code 14)
1 35C 0 No SEL With 1 Without 0
2 55C
Force Tripping Unit (Code 13)
Overcurrent Trip (Code 7) With 1 Without 0
1 Fixed 1-12 kA 5 Polarized adjust. 0,4-1,2 kA 0 W/O Trip
2 Adjust.1-12 kA 6 Polarized adjust. 0,8-2,5 kA ED Coil (Code12)
3 Fixed 12-24 kA 7 Polarized adjust. 2,0-6,0 kA With ED-Coil and internal C-bank (NEKO) 2 Without 0
4 Adjust.12-24kA 8 Polarized adjust. 4,0-8,0 kA With ED-Coil and 3C-bank (BBRail only) 3 With ED-Coil and external C-Bank 1
Voltage Converter (Code 8) Auxiliary Tripping Unit(Code 11)
1 24V DC±5% ext. 4 88..143V DC Shunt Trip 125V DC 4 Without 0
2 24/24 VDC 5 125..353 V DC 115..240V AC Shunt Trip 220V DC 5 ST with external 24VDC supply 1
3 35..85V DC R On Request Undervoltage Release 24 V DC 6 Shunt Trip 24V DC (standard) 2
On Request R Shunt Trip 110 V DC 3
Auxilliary Switch (Code 9) OC Indicator (Code 10)
1 3 Aux. Contacts 3 9 Aux. Contacts R Other quantity With 1 Without 0
2 5 Aux. Contacts 4 10 Aux. Contacts
PST code positions
EF4/12
(4000V)
