GE GFDS350 - Control Board Connector Layout; Rear View of Electronic Control; Front View of Electronic Control

– 26 –

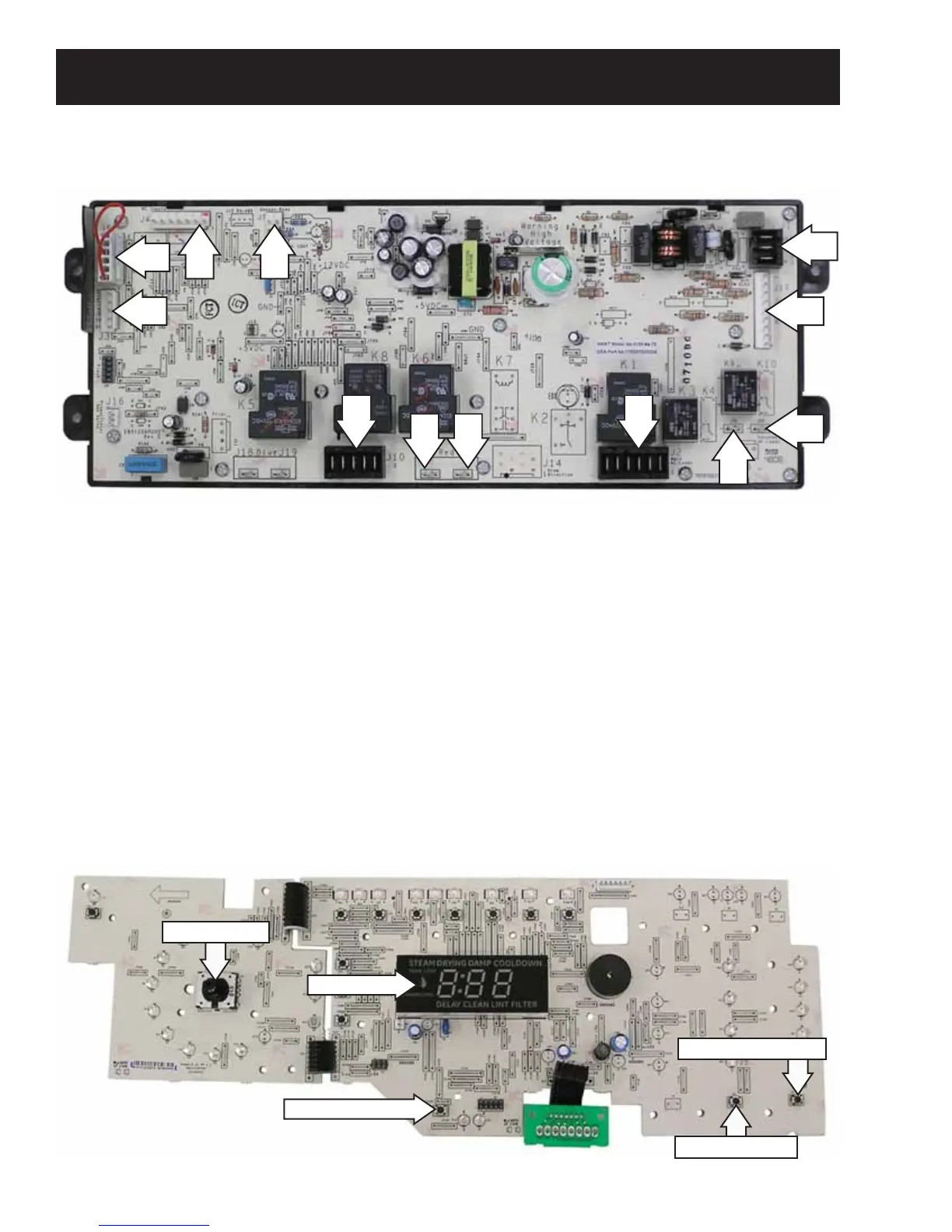

Control Board Connector Locator View
Electronic Control - Front View (Electric and Gas Models)
Electronic Control - Rear View (Electric and Gas Models)
J20
J5
J17
J3
J8
J10
J7
J4
Cycle Selector
Dryness Selector
Temperature Selector
LED Display
Start/Pause Switch
J1 - Door Switch
J2 - Drum Motor
J3 - User Interface
J4 - Outlet Control Thermistor and Inlet Control Thermistor
J5 - Model Selector
J7 - Moisture Sensor Rods
J9 - Outer Coil L1 (Electric Heat), Line (Gas Heat)
J8 - Outer Coil Relay
J10 - Inner Coil L1 (Electric Heat)
J20 - Water Valve
J21 - Water Valve Relay
J9
J2
J21
J1
